950005 (200) - Gravely Skidster with Trencher Valve, 20hp Honda (SN: 000500 - 000599) Battery And Electrical-Gas Parts Diagram

Skidster with Trencher Valve, 20hp Honda

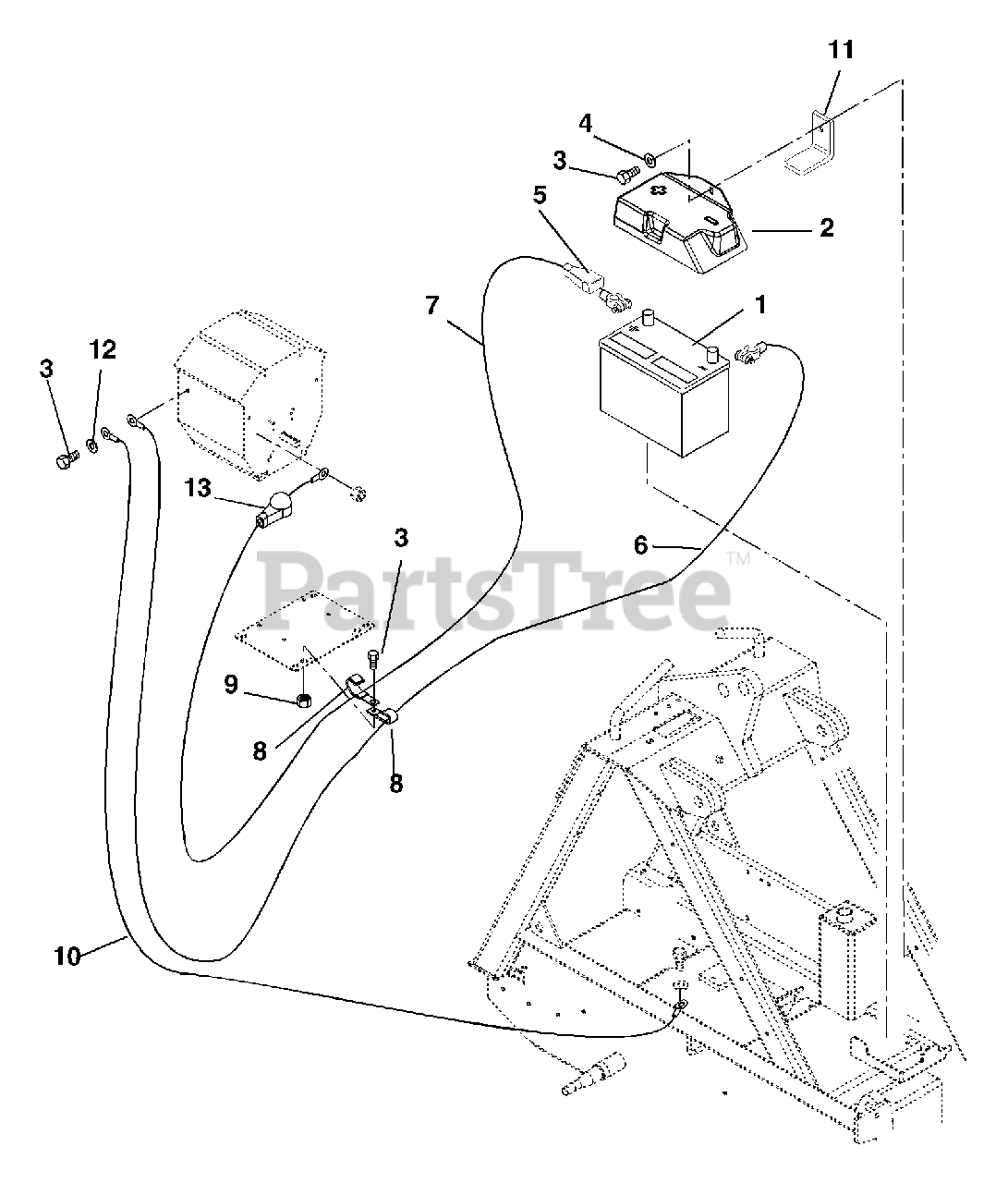

Battery And Electrical-Gas Parts Diagram

  • Title

1

Gravely 05047500

Battery

$

$

Not available

2

Gravely 05042300

Cover-Battery

$

$

Not available

3

Gravely 05956300

Bolt-Hex M8 x 1.25 x 16

$

$

Not available

4

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 034466

Cover,Battery Terminal
(Superseded to 07523100)

$

$

Not available

6

Gravely 05046300

Cable-Battery Positive

$

$

Not available

7

Gravely 05046400

Cable-Battery Negative

$

$

Not available

8

Gravely 036518

J-Clamp
(Superseded to 06909400)

$3.49

$

In Stock, Qty 8

0

9

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 05041800

Wire-Ground

$

$

Not available

11

Gravely 05046151

Bracket, Battery Holddown

$

$

Not available

12

Gravely 06308600

Washer-Locking .31 x .078 Regular
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00525800

Battery Terminal Boot, Red

$7.99

$

Usually ships in 4-12 days

0
