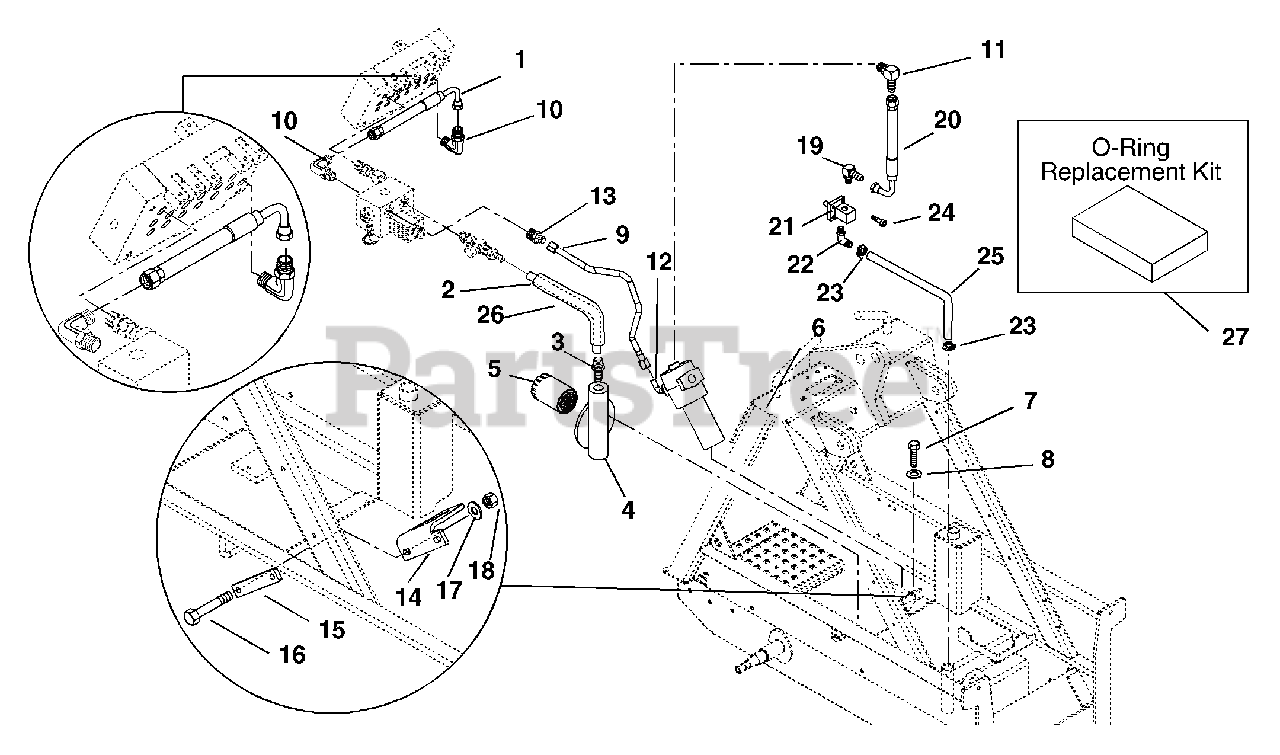

950004 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000500 - 000599) Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

Skidster without Trencher Valve, 20hp Honda

Valve Bank To Hydraulic Filter And Filter Head Parts Diagram

  • Title
1

Gravely 05051700

Hose, Hydraulic .50-13-3K

$

$

Not available

2

Gravely 05054300

Hose, Return Tee To Filter

Note: (Model 004)

$

$

Not available

3

Gravely 07062800

Fitting, Male NPTF 10

$

$

Not available

4

Gravely 05035100

Head-Filter

$

$

Not available

5

Gravely 05031900

Filter-Hydraulic Skidster

$

$

Not available

6

Gravely 05038000

Filter-Hydraulic Assembly

$

$

Not available

6

Gravely 05042200

Filter-Element

$

$

Not available

7

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06444300

Washer-Flat-Steel .390 x .75 x .125

$7.99

$

In Stock, Qty 8

0

9

Gravely 05051600

Tube, Filter To Overcenter Valve

$

$

Not available

10

Gravely 07062900

Fitting, Hydraulic Elbow

$

$

Not available

11

Gravely 07062400

Fitting, Hydraulic Elbow

$

$

Not available

12

Gravely 07062500

Fitting, Hydraulic Elbow

$

$

Not available

13

Gravely 07059900

Adapter, Face Sear 8 x 8 1/2 O-Ring

$9.49

$

In Stock, only 4 left!

0

14

Gravely 05050550

Bracket, Filter

$

$

Not available

15

Gravely 05050650

Retainer, Filter Bracket

$

$

Not available

16

Gravely 05975300

Bolt-Hex M8-1.25 x 65

$

$

Not available

17

Gravely 06435700

Washer-Flat-Steel .38 x .875 xs .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 06541700

Nut-Locking-Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 07062600

Fitting, Hydraulic Elbow

$

$

Not available

20

Gravely 05054100

Hose, Hydraulic Pump To Filter

$

$

Not available

$

$

Not available

21

Gravely 55000800

Seals, Pump

$

$

Not available

22

Gravely 07055400

Elbow-90 Degree

$

$

Not available

23

Gravely 06946000

Clamp-Hose

$

$

Not available

24

Gravely 05973200

Screw-Socket M8-1.25 x 30

$

$

Not available

25

Gravely 05038700

Hose-Hydraulic Tank to Pump

Note: (Models 004, 005)

$

$

Not available

25

Gravely 05049900

Hose-Hydraulic Tank to Pump

Note: (Model 504)

$

$

Not available

26

Gravely 05051800

Sleeve, Protective Hose

Note: (Model 004)

$

$

Not available

27

Gravely 00046900

Assorted O-Rings

Note: For Hydraulic Components to fittings SAE

$

$

Not available

27

Gravely 00047000

Assorted O-Rings

Note: For Flat Face Seal Fittings and Hoses

$

$

Not available
