950001 (200) - Gravely Skidster without Trencher Valve, 20hp Honda (SN: 000101 & Above) Hydraulic Diagram Parts Diagram

Skidster without Trencher Valve, 20hp Honda

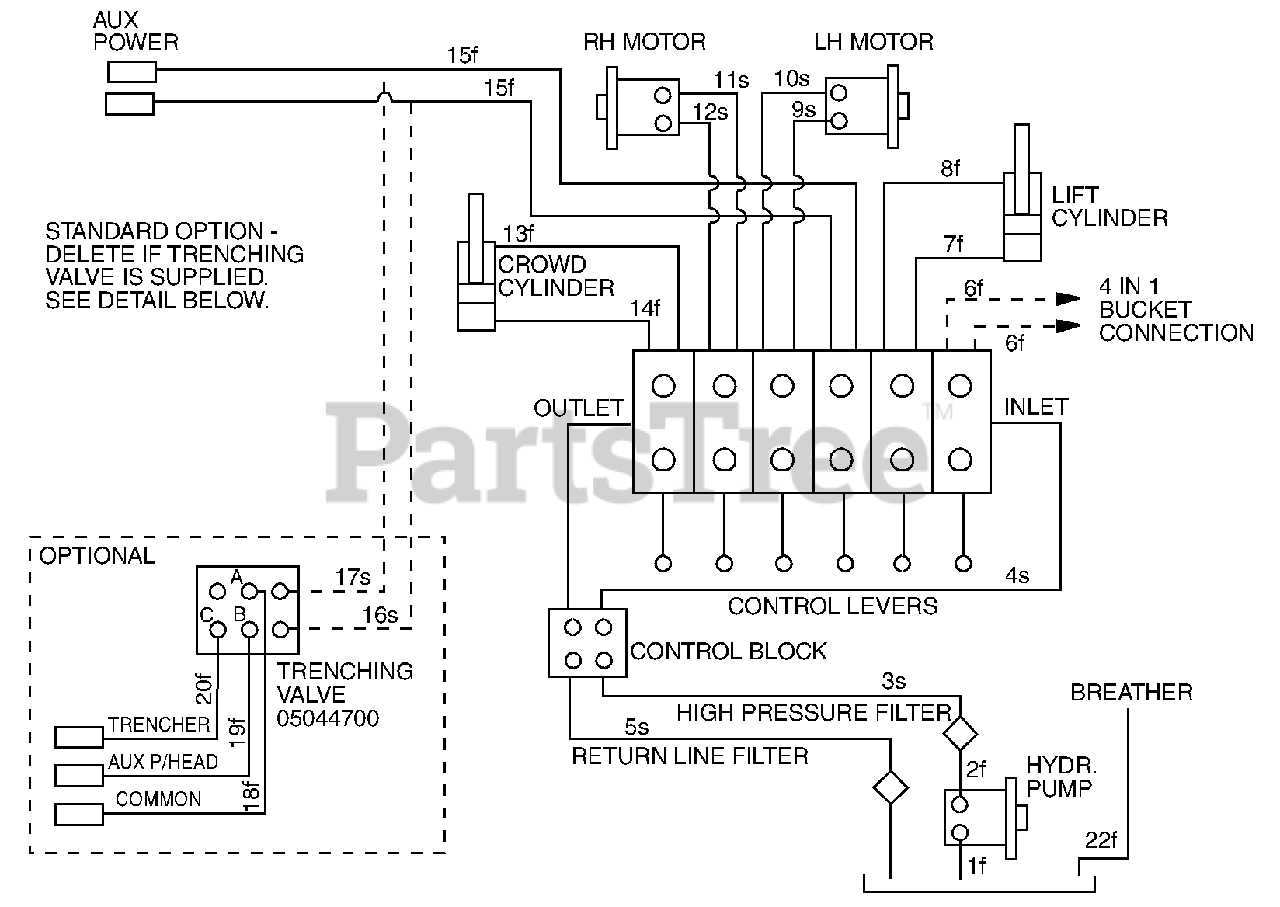

Hydraulic Diagram Parts Diagram

  • Title

1f

Gravely 05038700

Tank to pump

$

$

Not available

2f

Gravely 05038800

Pump outlet to pressure filter

$

$

Not available

3s

Gravely 05038900

Pressure filter to control block

$

$

Not available

4s

Gravely 05039000

Control block to 6 station valve bank (inlet)

Note: (inlet)

$

$

Not available

5s

Gravely 05039100

Control block to return line filter

$

$

Not available

6f

Gravely 05039200

Valve bank section 6 to 4 in 1 bucket connection

$

$

Not available

7f

Gravely 05039300

Valve bank section 5 to lift cylinder (rear end)

Note: (rear end)

$

$

Not available

8f

Gravely 05039400

Valve bank section 5 to lift cylinder (rod end)

Note: (rod end)

$

$

Not available

9s

Gravely 05039500

Valve bank section 3 to LH drive motor

$

$

Not available

10s

Gravely 05039600

Valve bank section 3 to LH drive motor

$

$

Not available

11s

Gravely 05039700

Valve bank section 2 to RH drive motor

$

$

Not available

12s

Gravely 05039800

Valve bank section 2 to RH drive motor

$

$

Not available

13f

Gravely 05039900

Valve bank section 1 to crowd cylinder (rod end)

Note: (rod end)

$

$

Not available

14f

Gravely 05040000

Valve bank section 1 to crowd cylinder (rear end)

Note: (rear end)

$

$

Not available

15f

Gravely 05040100

Valve bank section 4 to auxiliary power connection

$

$

Not available

16s

Gravely 05040200

Auxiliary tee connection to trenching valve

$

$

Not available

17s

Gravely 05040300

Auxiliary tee connection to trenching valve

$

$

Not available

18f

Gravely 05040400

Common return to trenching valve

Note: (Optional)

$

$

Not available

19f

Gravely 05040500

Trenching valve to auxiliary p/head

Note: (Optional)

$

$

Not available

20f

Gravely 05040600

Trenching valve to trencher
(Superseded to 05040400)

Note: (Optional)

$

$

Not available

22f

Gravely 05040700

Reservoir breather

$

$

Not available
