950.609290 (7800577) - Craftsman ZTS6000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton (2009) 42" Mower Deck - Clutch & Support Group Parts Diagram

ZTS6000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton

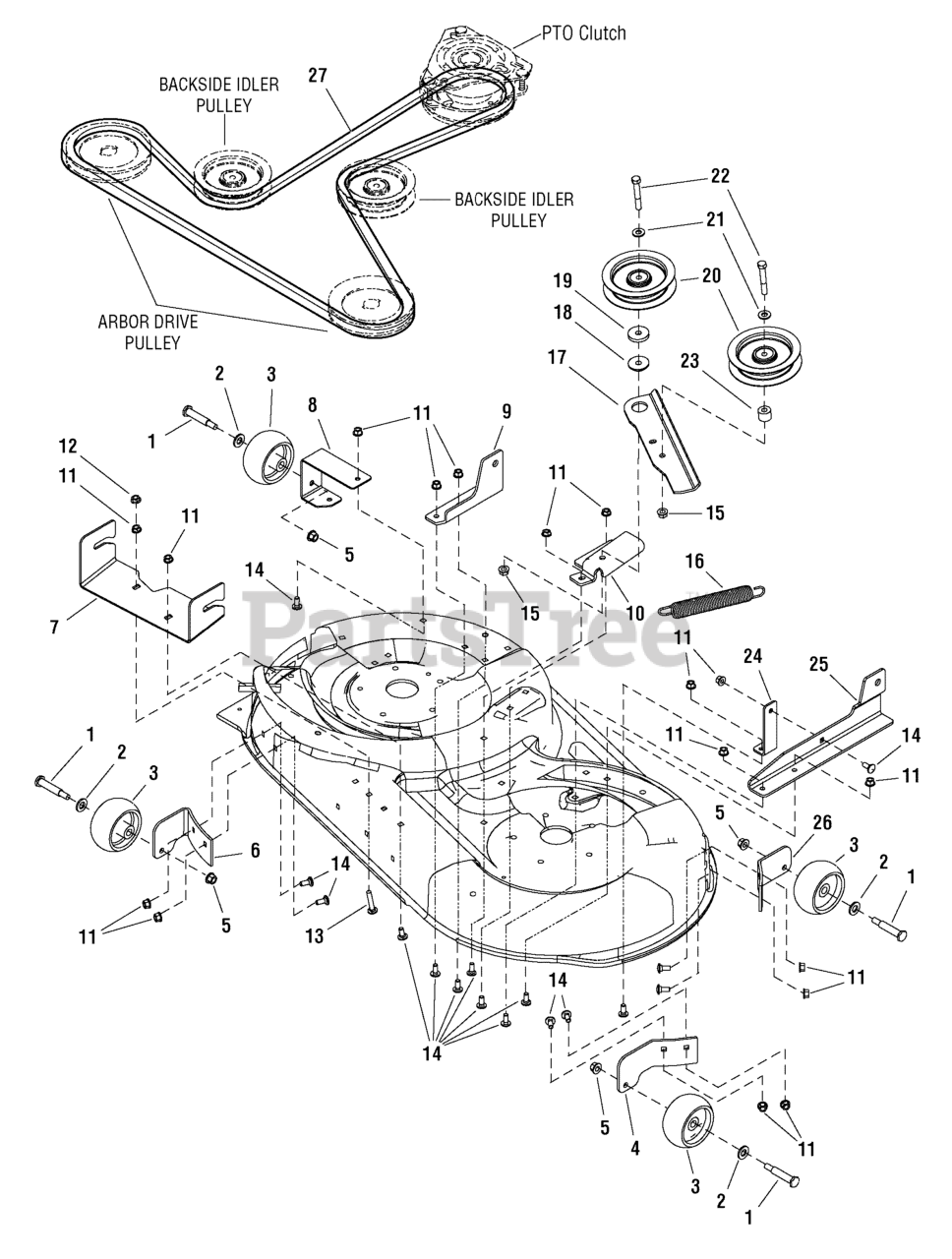

42" Mower Deck - Clutch & Support Group Parts Diagram

  • Title

1

Murray 2108765SM

BOLT, Shoulder (Gauge Wheel) 3/8-16 x 2.781 x 3/4

$6.49

$

In Stock, Qty 20+

0

2

Murray 1960170SM

WASHER, .51 ID x 1 OD x 1/10 THK
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

3

Murray 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

4

Murray 1732258ASM

BRACKET, Gauge Wheel L.H. Front
(Superseded to 1732258BMYP)

$29.99

$

In Stock, Qty 8

0

5

Murray 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

6

Murray 1734344ASM

BRACKET, Gauge Wheel R.H. Front
(Superseded to 1734344BMYP)

$35.99

$

In Stock, only 2 left!

0

7

Murray 1733578ASM

HITCH, Mower Front
(Superseded to 1733578BMYP)

$75.99

$

Usually ships in 2-12 days

0

8

Murray 1734185ASM

BRACKET, Gauge Wheel R.H. Rear
(Superseded to 1734185BMYP)

$38.99

$

In Stock, only 1 left!

0

9

Murray 1733576ASM

SUPPORT, Mower Rear R.H.
(Superseded to 1733576BMYP)

$41.99

$

Usually ships in 2-12 days

0

10

Murray 1734242ASM

BRACKET, Fixed Idler
(Superseded to 1734242BMYP)

$49.99

$

Usually ships in 2-12 days

0

11

Murray 1931277SM

NUT, Hex Flange Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

12

Murray 1935048SM

NUT, Hex Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

13

Murray 1931338SM

CARRIAGE BOLT, 5/16-18 x 1-3/4, G5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

14

Murray 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

15

Murray 1931211SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

16

Murray 1733844SM

SPRING, Extension

$22.99

$

Usually ships in 2-12 days

0

17

Murray 1734243ASM

ARM, Idler
(Superseded to 1734243BMYP)

$

$

Not available

18

Murray 1714255SM

SPACER, Powdered Metal

$6.49

$

In Stock, Qty 17

0

19

Murray 1960534SM

WASHER, 3/8, .41 ID x 1-1/2 OD x 1/4 THK

$

$

Not available

20

Murray 1732360SM

PULLEY, Idler, 4 OD x .378 ID x 1

$48.99

$

In Stock, Qty 20+

0

21

Murray 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

22

Murray 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, G5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

23

Murray 1667812SM

SPACER

$5.99

$

In Stock, Qty 16

0

24

Murray 1733577ASM

BRACE, Mower Support
(Superseded to 1733577BMYP)

$24.99

$

Usually ships in 2-12 days

0

25

Murray 1733575ASM

SUPPORT, Mower Rear L.H.

$86.99

$

Usually ships in 2-12 days

0

26

Murray 1731403ASM

SUPPORT, Gauge Wheel, LH

$14.99

$

In Stock, only 1 left!

0

27

Murray 1732966SM

V-BELT, A-Wedge

$75.99

$

In Stock, only 1 left!

0

27

Murray 1734048SM

V-BELT, A-Wedge

Note: (Used on Export Models)

$70.99

$

In Stock, only 2 left!

0
