950.527640 (1695420) - Craftsman 30" Snow Thrower (2007) Remote Control Parts Diagram

30" Snow Thrower

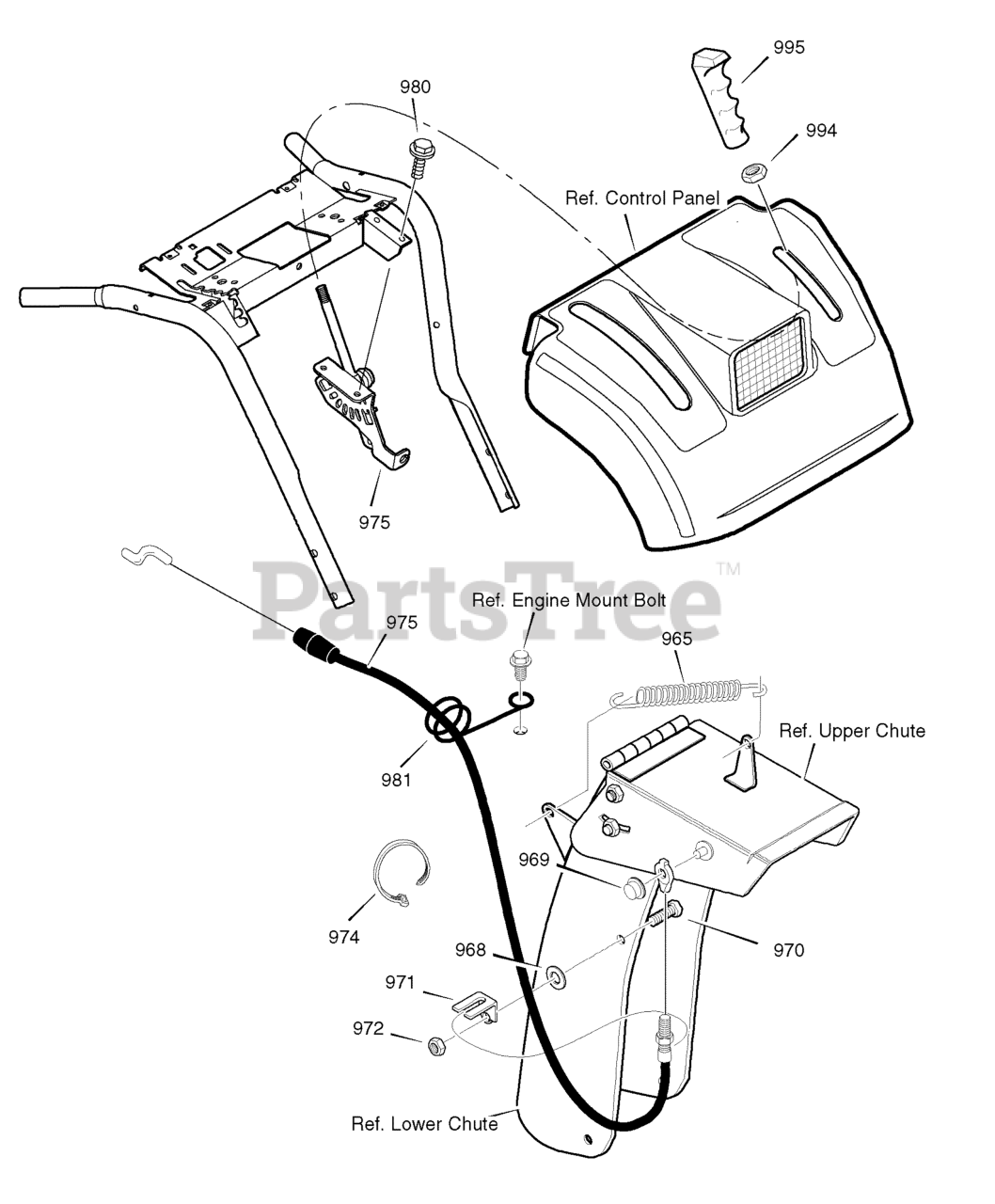

Remote Control Parts Diagram

  • Title
965

Murray 318468MA

TENSION SPRING

$8.49

$

In Stock, only 1 left!

0

968

Murray 73787MA

FLATWASHER

$6.99

$

Usually ships in 2-12 days

0

969

Murray 3535MA

PUSH NUT

$4.99

$

Usually ships in 2-12 days

0

970

Murray 313676MA

SCREW, 5/16-18 X 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

971

Murray 306447YZMA

BRACKET, CABLE CHUTE

$15.99

$

Usually ships in 2-12 days

0

972

Murray 71391MA

NUT, 5/16-18

$4.49

$

Usually ships in 2-12 days

0

974

Murray 071372MA

TIE, CABLE

$4.49

$

In Stock, only 1 left!

0

975

Murray 1501393MA

CABLE, CHUTE DEFLECTOR

$

$

Not available

980

Murray 760858MA

SCREW
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

981

Murray 780220MA

WIRE FORM, CHUTE CABLE

$6.99

$

Usually ships in 2-12 days

0

994

Murray 71045MA

NUT, 3/8-16

$4.99

$

Usually ships in 2-12 days

0

995

Murray 306689MA

KNOB, SHIFT

$14.99

$

Usually ships in 2-12 days

0
