950.524350 (C950-52435-0) - Craftsman 22" Snow Thrower (2004) Electric Starter Parts Diagram

22" Snow Thrower

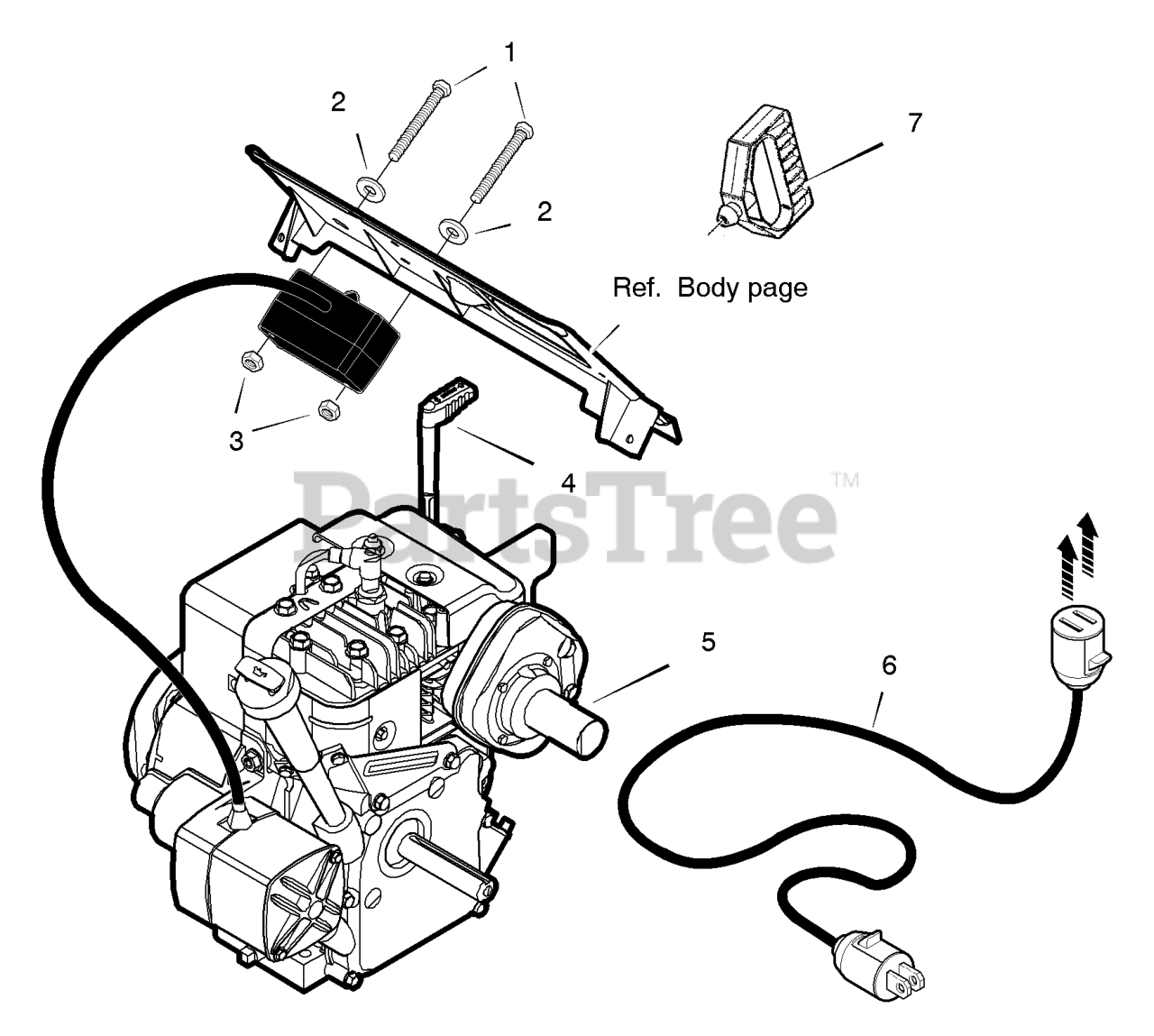

Electric Starter Parts Diagram

  • Title

1

Murray 311633MA

Screw, No. 8-32 x 3.00 *

$3.99

$

Usually ships in 2-12 days

0

2

Murray 414106

Washer *
(Superseded to 414106MA)

$3.49

$

Usually ships in 2-12 days

0

3

Murray 271163MA

Nut, Keps No. 8 *

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1501725MA

Lever, Choke *
(Superseded to 790553)

$19.99

$

In Stock, only 3 left!

0

5-1

Murray 1502002

Muffler *

$

$

Not available

5-2

Murray 1502003

Gasket, Muffler *

$

$

Not available

5-3

Murray 1502004

Bolt, Muffler

$

$

Not available

5-4

Murray 71060

Washer, Split Lock *
(Superseded to 1501670MA)

$

$

Not available

5-5

Murray 71037

Nut, Hex 5/16-18 *
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5-6

Murray 001X81MA

Bolt, Hex 5/16-18

Note: For information on Replacement Parts contact the engine manufacturer.

$3.49

$

In Stock, only 2 left!

0

6

Murray 6219MA

CORD, Electric, 10FT. 110V

Note: (For information on Replacement Parts contact the engine manufacturer.)

$40.99

$

In Stock, only 3 left!

0

7

Murray 1502022

Grip, Mitten *
(Superseded to 699334)

$13.99

$

In Stock, only 1 left!

0
