950.524190 (C950-52419-0) - Craftsman 24" Snow Thrower (2004) Wheels Parts Diagram

24" Snow Thrower

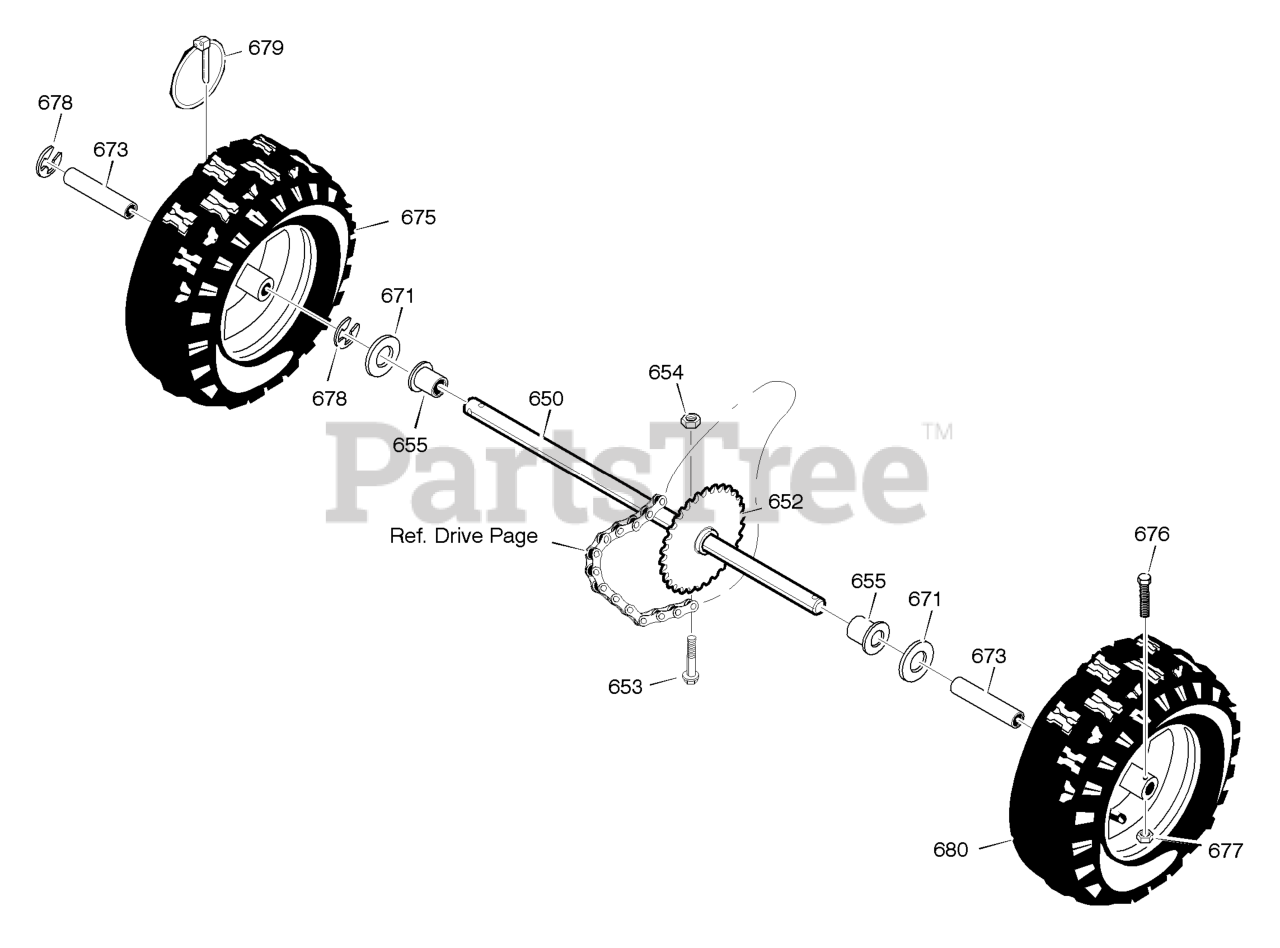

Wheels Parts Diagram

  • Title
650

Murray 1501562 YZ

SHAFT, AXLE
(Superseded to 1501562YZMA)

$59.99

$

Usually ships in 2-12 days

0

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, Qty 8

0

653

Murray 01X193MA

SCREW, 1/4-20 x 1.75
(Superseded to 704212)

$5.49

$

In Stock, Qty 20+

0

654

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, Qty 20+

0

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, Qty 20+

0

673

Murray 1501139MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501806MA

TIRE & RIM, RIGHT
(Superseded to 1736770YP)

$131.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 6

0

677

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray 73842MA

PIN, KLIK .25 X 1.38 DIA
(Superseded to 500016MA)

$15.99

$

In Stock, only 2 left!

0

680

Murray 1501807MA

TIRE & RIM, LEFT
(Superseded to 1736771YP)

$152.99

$

Usually ships in 2-12 days

0
