950.521212 (C950-52121-2) - Craftsman 29" Snow Thrower (2002) Headlight Parts Diagram

29" Snow Thrower

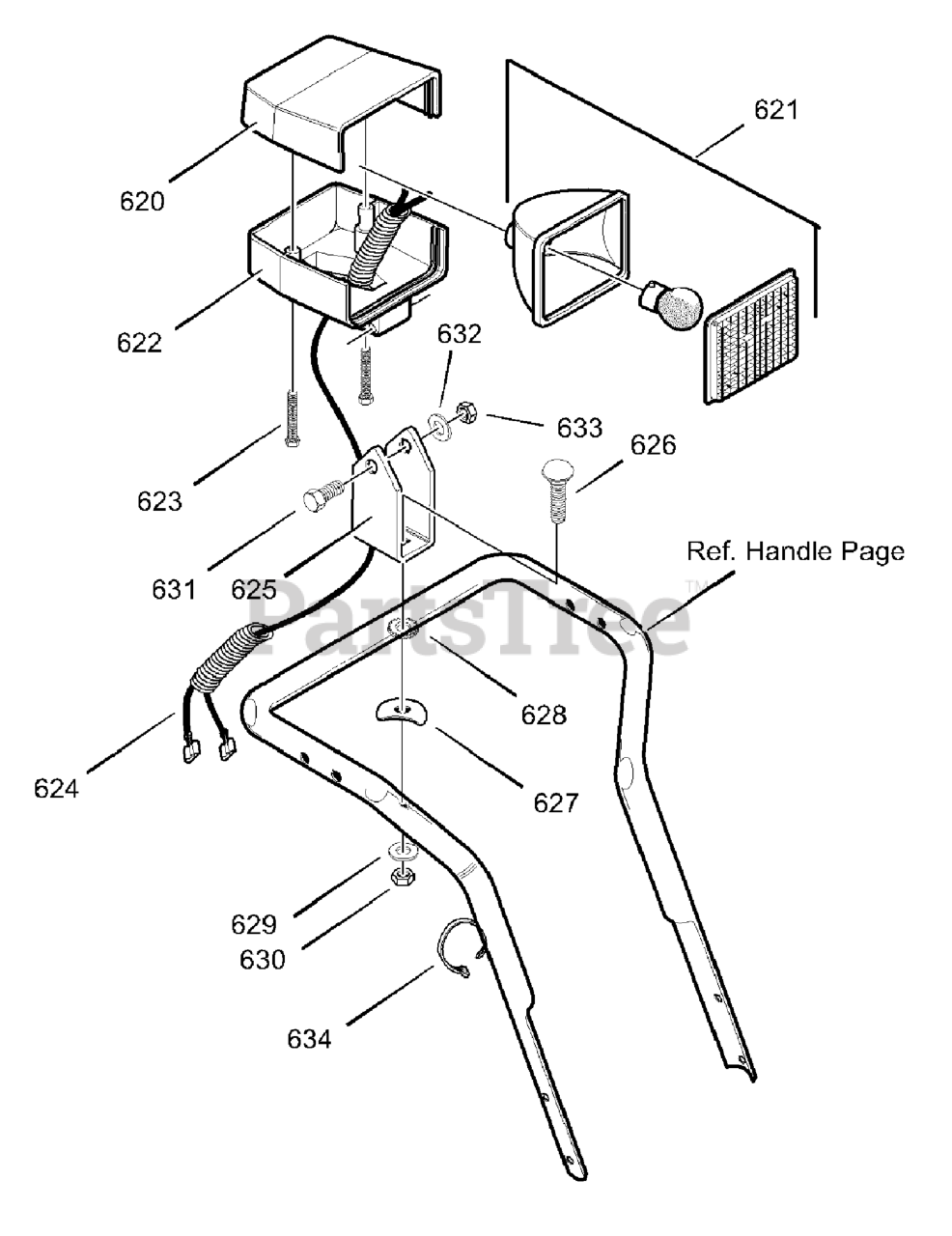

Headlight Parts Diagram

  • Title

620

Murray 583490MA

HOUSING, HEADLIGHT UPPER

$11.99

$

Usually ships in 2-12 days

0

621

Murray 762343MA

HEADLIGHT, ASSY

$69.99

$

Usually ships in 2-12 days

0

622

Murray 1501514MA

HOUSING, HEADLIGHT LOWER

$19.99

$

Usually ships in 2-12 days

0

623

Murray 307781MA

SCREW, #8X1.75

$3.99

$

Usually ships in 2-12 days

0

624

Murray 1501455MA

WIRING HARNESS, HALOGEN

$12.99

$

Usually ships in 2-12 days

0

625

Murray 4029 YZ

BRACKET, HEADLIGHT

$30.99

$

Usually ships in 2-12 days

0

626

Murray 002X88MA

BOLT, CARRIAGE - 5/16-18X2.00

$3.49

$

In Stock, only 1 left!

0

627

Murray 580527MA

WASHER, SADDLE

$5.49

$

Usually ships in 2-12 days

0

628

Murray 71061

WASHER, EXLK .32X.60X.040

$

$

Not available

629

Murray 071060

WASHER, SPTLK .31X.58X.08

$3.49

$

In Stock, Qty 20+

0

630

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

631

Murray 235MA

SCREW, 5/16-18 x 2.00

$4.49

$

Usually ships in 2-12 days

0

632

Murray 071060

WASHER, SPTLK

$3.49

$

In Stock, Qty 20+

0

633

Murray 15X144

NUT, 5/16-18 REGHEX
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

634

Murray 57444

TIE, CABLE

$

$

Not available
