950.520091 (C950-52009-1) - Craftsman 24" Snow Thrower (2004) Frame Parts Diagram

24" Snow Thrower

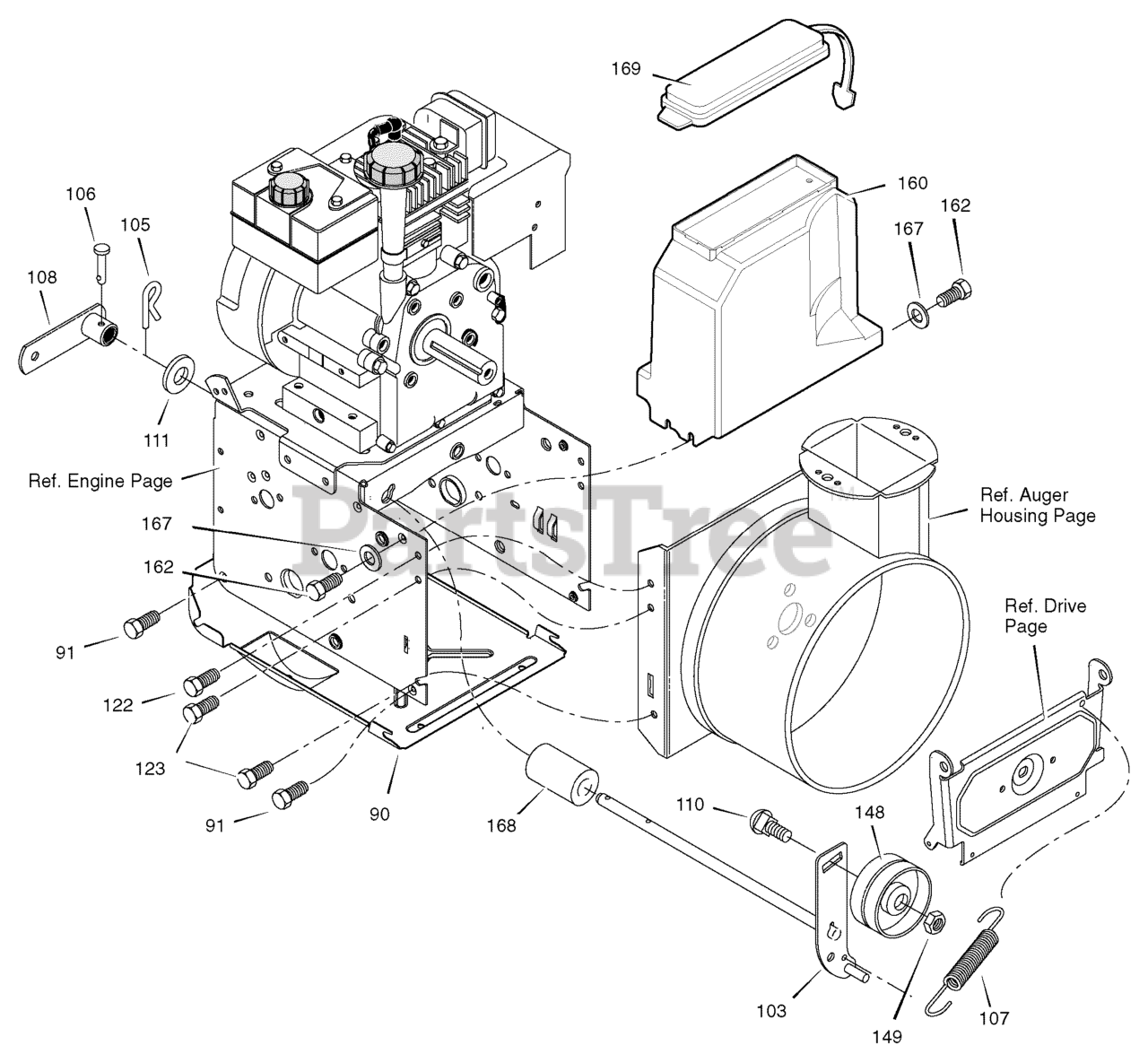

Frame Parts Diagram

  • Title

90

Murray 1501055E701

COVER, BOTTOM

$35.99

$

In Stock, only 1 left!

0

91

Murray 310169

SCREW, 1/4-20X .63
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 9

0

103

Murray 1501111 YZ

IDLER ASSEMBLY, AUGER

$

$

Not available

105

Murray 711682

PIN, HAIR .38DIAX1.64LG

$7.49

$

In Stock, only 1 left!

0

106

Murray 761761

PIN, CLEVIS 3/16" DIA
(Superseded to 761761MA)

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X160

SPRING, TENSION

$

$

Not available

108

Murray 761675 YZ

ASSY., SPRING ATTACH

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781

BOLT, 3/8-16X1.25 CARR.
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, Qty 11

0

122

Murray 25X020

SCREW, TAP 5/16-18 X .50
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

123

Murray 25X021

SCREW, TAP 5/16-18 X .50
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

148

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, Qty 16

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

160

Murray 1501052

COVER, BELT

$60.99

$

Usually ships in 2-12 days

0

162

Murray 26X306

SCREW, TAP
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

167

Murray 71067

WASHER, FLAT
(Superseded to 71067MA)

$4.49

$

In Stock, only 1 left!

0

168

Murray 1502041

SPACER, AUGER BRACKET
(Superseded to 1502041MA)

$5.99

$

Usually ships in 2-12 days

0

169

Murray 760539

LID, TOOL BOX

$10.99

$

In Stock, only 1 left!
