950.520091 (C950-52009-1) - Craftsman 24" Snow Thrower (2004) Engine Parts Diagram

24" Snow Thrower

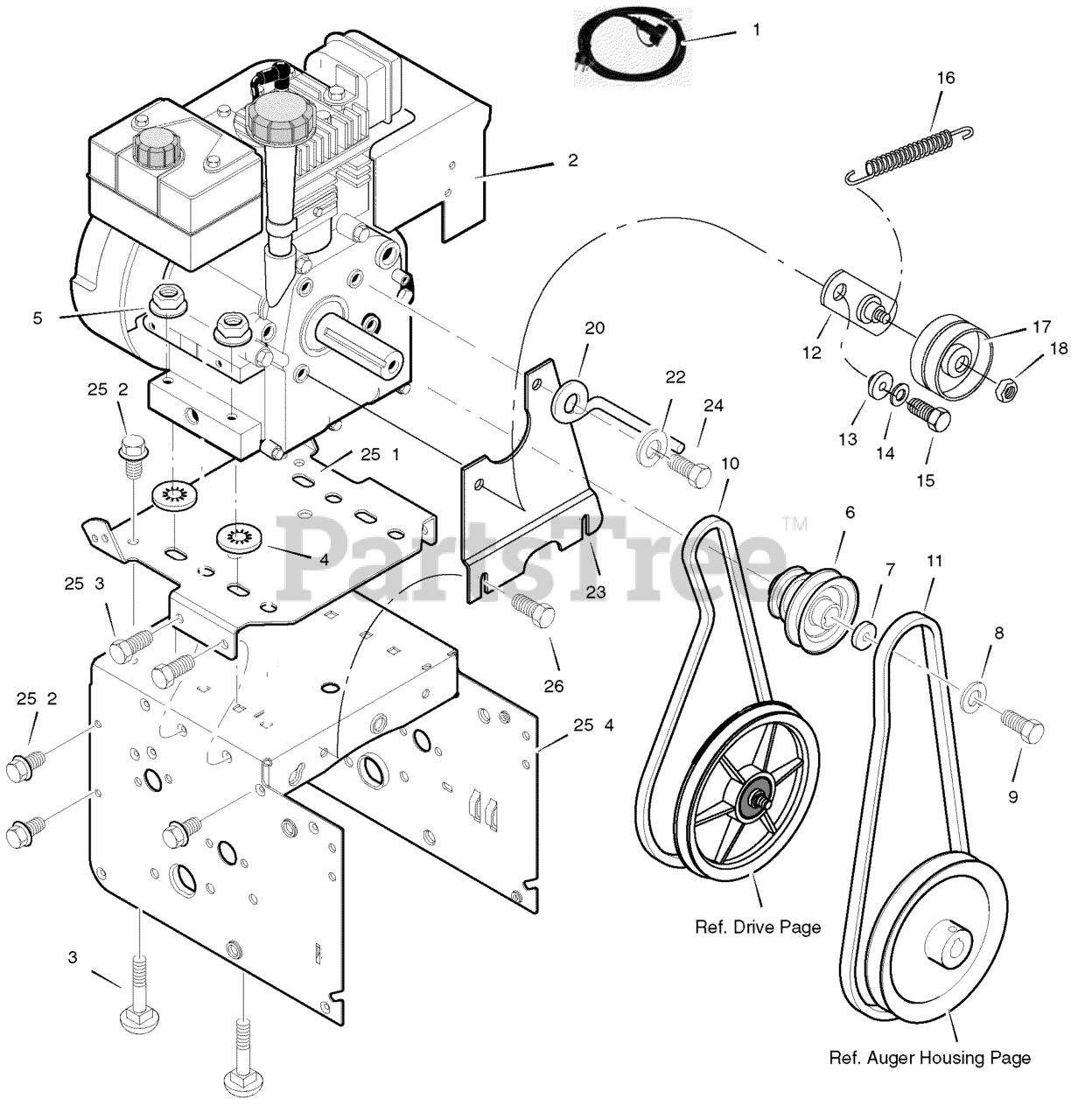

Engine Parts Diagram

  • Title
1

Murray 6219

CORD, STARTER
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

2

ENGINE

$

$

Not available

3

Murray 002X97

BOLT, CARRIAGE 5/16-18
(Superseded to 1501884E701MA)

$120.99

$

Usually ships in 2-12 days

0

4

Murray 028X76

RETAINER, PUSH
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

5

Murray 710026

NUT 5/16-18

$

$

Not available

6

Murray 1501109

PULLEY, ENGINE
(Superseded to 1501109MA)

$41.99

$

In Stock, only 2 left!

0

7

Murray 710247

WASHER

$8.49

$

Usually ships in 2-12 days

0

8

Murray 71063

WASHER

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X20

SCREW, 0.37-24X1.00
(Superseded to 001X20MA)

$4.49

$

In Stock, only 4 left!

0

10

Murray 579932

BELT, V 3L
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray 37X120

BELT, V 4L

$22.99

$

In Stock, Qty 13

0

12

Murray 1501112 YZ

BRACKET ASSEMBLY, IDLER
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray 1501065

BUSHING, IDLER BRACKET
(Superseded to 1501065MA)

$5.49

$

In Stock, only 2 left!

0

14

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

15

Murray 910828

SCREW 5/16-24 X 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

16

$7.49

$

In Stock, only 3 left!

0

17

Murray 50793

PULLEY, IDLER

$21.99

$

In Stock, Qty 6

0

18

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

20

Murray 1501201

GUIDE, ROD BELT
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray 71060

WASHER, SPTLK .31X.58X.08
(Superseded to 1501670MA)

$

$

Not available

23

Murray 1501482

PLATE, ANTI VIBRATION

$21.99

$

Usually ships in 2-12 days

0

24

Murray 910828

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

25

FRAME ASSEMBLY

$

$

Not available

25?1

Murray 1501062E549

PLATE, ENGINE MOUNT

$6.49

$

Usually ships in 2-12 days

0

25?2

Murray 310169

SCREW 1/4-20 X .63
(Superseded to 310169MA)

$4.49

$

In Stock, Qty 5

0

25?3

Murray 25X020

SCREW 5/16-18 X .50
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

25?4

Murray 1501049E549

FRAME, MOTOR BOX

$

$

Currently unavailable

26

Murray 26X263

SCREW
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

--

Murray F-0410128L

OWNER'S MANUAL

$

$

Currently unavailable
