95-32MS01 - Toro 32" Side-Discharge Mower Deck (1979) REAR DISCHARGE MOWERS-36 IN. (92 CM) Parts Diagram

32" Side-Discharge Mower Deck

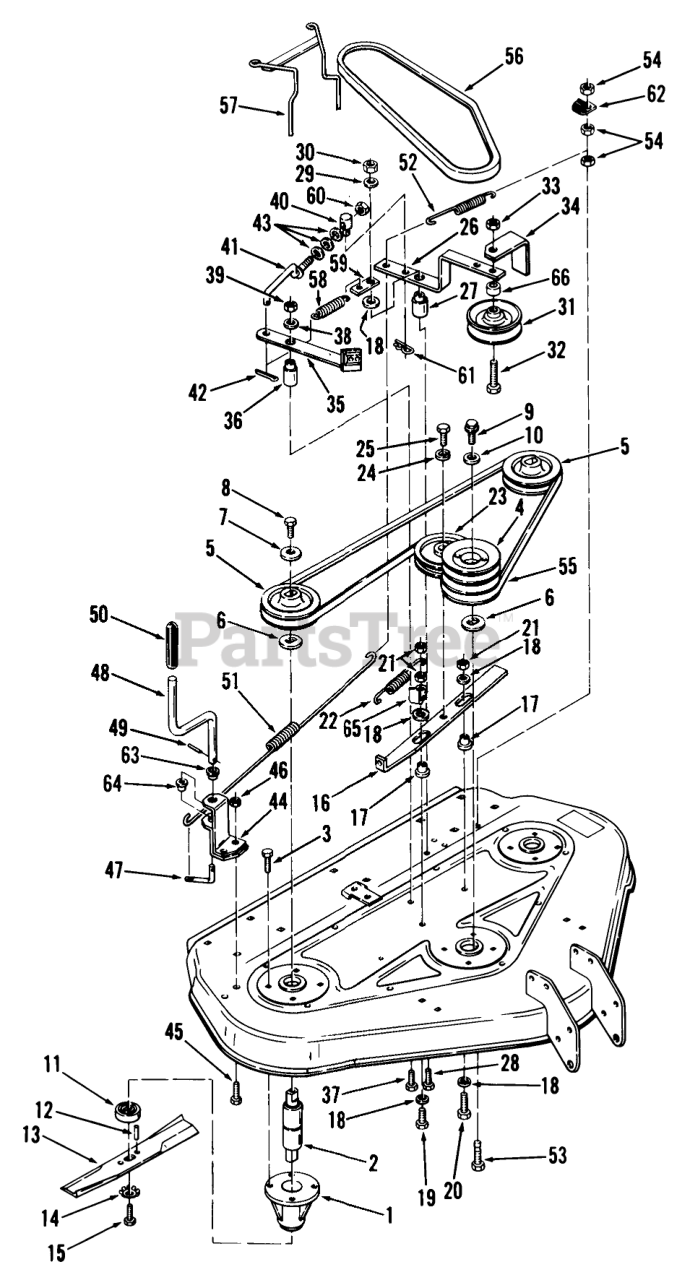

REAR DISCHARGE MOWERS-36 IN. (92 CM) Parts Diagram

  • Title
1

Toro 105074

HOUSING-BEARING B
(Superseded to 105074-03)

$

$

Not available

2

Toro 103119

BEARING

$

$

Not available

3

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

4

Toro 106113

PULLEY-36IN MOWER

$173.99

$

Usually ships in 3-6 days

0

5

Toro 105781

PULLEY-MOWER DRIVE

$67.99

$

In Stock, only 2 left!

0

6

Toro 105075

WASHER-DOUBLE D

$

$

Not available

7

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

8

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

9

Toro 102972

Bolt-Lock 3/8-16 x 7/8
(Superseded to 113134)

$

$

Not available

10

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

11

Toro 104373

Cup-Spindle
(Superseded to 102780)

$140.99

$

In Stock, only 1 left!

0

12

Toro 933210

SPIROL ROLL PIN

$3.49

$

Usually ships in 3-6 days

0

13

Toro 8969

BLADE KIT 36 LF REAR

$155.99

$

In Stock, only 1 left!

0

14

Toro 1336

WASHER

$

$

Not available

15

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

16

Toro 106120

BAR-IDLER SUPPORT

$78.99

$

In Stock, only 2 left!

0

17

Toro 106121

Bushing/Spacer
(Superseded to 107674)

$1.99

$

In Stock, Qty 17

0

18

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

19

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

20

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

22

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

23

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

24

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

25

Toro 105865

BOLT HEX SPECIAL

$

$

Not available

26

Toro 107193

Idler Arm

$

$

Not available

27

Toro 107194

Pivot Bushing

$

$

Not available

28

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

29

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

30

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

31

Toro 8510

IDLER PULLEY

$

$

Not available

32

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

33

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

34

Toro 107196

Belt Guide

$

$

Not available

35

Toro 107197

ASSY-BRAKE

$

$

Not available

36

Toro 107200

Pivot Bushing

$

$

Not available

37

Toro 908039

Bolt
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

38

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

39

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

40

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

41

Toro 107506

Brake Rod

$

$

Not available

42

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

43

Toro 920248

WASHER-NYLON

$1.49

$

Usually ships in 3-6 days

0

44

Toro 107219

Pivot Bracket

$

$

Not available

45

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

46

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

47

Toro 107222

Engagement Bar

$

$

Not available

48

Toro 107381

LEVER-ENGAGEMENT

$

$

Not available

49

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

50

Toro 9038

GRIP

$6.99

$

In Stock, only 1 left!

0

51

Toro 107224

SPRING-ENGAGEMENT

$

$

Not available

52

Toro 107225

SPRING-RETURN

$

$

Not available

53

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

54

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

55

Toro 8411

V-BELT

$28.99

$

In Stock, only 1 left!

0

56

Toro 107230

V-BELT

$36.99

$

Usually ships in 3-6 days

0

57

Toro 107455

Belt Guide

$

$

Not available

58

Toro 1230

Spring

$

$

Not available

59

Toro 7606

Spring Tab

$

$

Currently unavailable

60

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 16

0

61

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

62

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

63

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

64

Toro 5979

BUSHING-NYLINER

$3.49

$

In Stock, Qty 9

0

65

Toro 7713

SPACER-BRACKET

$

$

Not available

66

Toro 105618

Spacer

$

$

Not available
