95-32MS01 - Toro 32" Side-Discharge Mower Deck (1979) REAR DISCHARGE MOWERS-36 IN. (92 CM) Parts Diagram

32" Side-Discharge Mower Deck

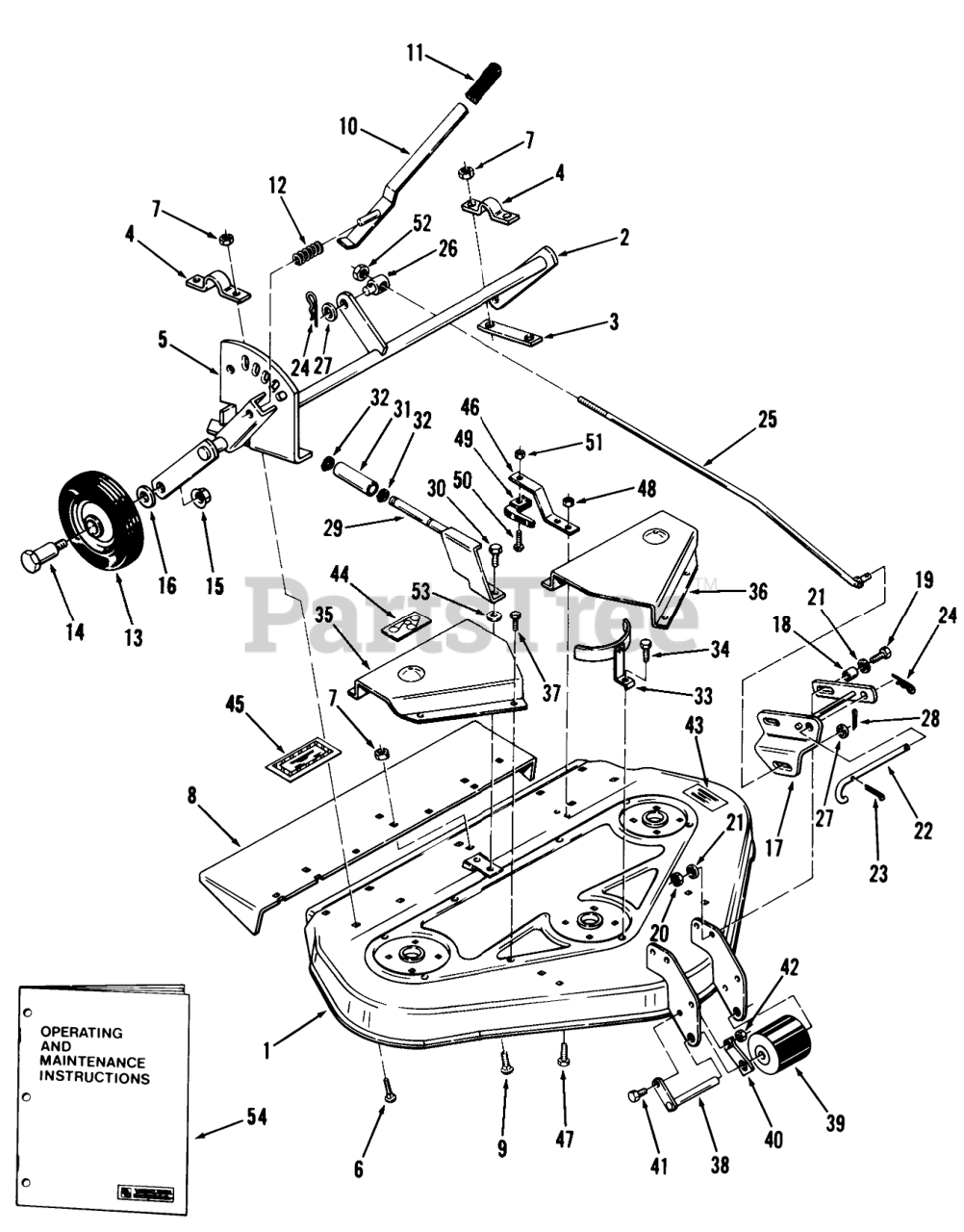

REAR DISCHARGE MOWERS-36 IN. (92 CM) Parts Diagram

  • Title
1

Toro 107190

Mower Deck for 95-36YR01

$

$

Not available

1

Toro 107416

ASSY-MOWER DECK 3 R
(Superseded to 107416-01)

$

$

Not available

2

Toro 107202

Gage Wheel Support

$

$

Not available

3

Toro 106377

Strap
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

4

Toro 106378

CLAMP

$

$

Not available

5

Toro 107204

QUADRANT R (NS)
(Superseded to 107204-01)

$

$

Not available

6

Toro 900063

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

7

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

8

Toro 106480

Chute Extension
(Superseded to 106480-01)

$102.99

$

Usually ships in 3-6 days

0

9

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

10

Toro 107205

Lever

$

$

Not available

11

$2.49

$

Usually ships in 3-6 days

0

12

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

13

Toro 107207

Wheel 6 X 1.25

$

$

Not available

14

$

$

Not available

15

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

16

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

17

Toro 107209

FRT SUPT ASSY

$

$

Not available

18

Toro 107213

SPACER

$11.99

$

In Stock, only 1 left!

0

19

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

21

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

22

Toro 107214

"J" Pin

$

$

Not available

23

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

24

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

25

Toro 107215

Leveling Rod

$

$

Not available

26

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

27

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

28

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

29

Toro 107216

ASSY-SUPPORT R

$

$

Not available

30

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

31

Toro 106383

SPACER

$

$

Not available

32

Toro 936117

Snap Ring
(Superseded to 32151-84)

$2.49

$

Usually ships in 3-6 days

0

33

Toro 107784

Belt Guard (Front)

$

$

Not available

34

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

35

Toro 106478

Belt Cover R.H.

$

$

Not available

35

Toro 107450

Belt Cover RH
(Superseded to 107450-01)

$

$

Not available

36

Toro 106479

Belt Cover L.H.

$

$

Not available

36

Toro 107449

Cover-Belt
(Superseded to 107449-01)

$

$

Not available

37

Toro 926671

Bolt
(Superseded to 9266714)

$1.49

$

In Stock, Qty 20+

0

38

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, Qty 5

0

39

Toro 5240

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

40

Toro 102773

SPRING ROLLER STOP

$

$

Not available

41

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

42

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

43

Toro 105206

Caution Decal
(Superseded to 93-1122)

$9.99

$

In Stock, Qty 12

0

44

Toro 107700

Decal-Height & Belt Adjustment

$

$

Not available

45

Toro 106746

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 3 left!

0

46

Toro 107231

Switch Support Bracket

$

$

Not available

47

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

48

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

49

Toro 107232

SWITCH

$

$

Not available

50

Toro 911908

Fillister Hd. Screw #8-32 x 1

$

$

Not available

51

Toro 915962

Hex Nut
(Superseded to 32149-9)

$1.99

$

Usually ships in 3-6 days

0

52

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

53

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

54

Toro 810010R1

Owners Manual (Alternate 810108R1)

$

$

Currently unavailable

54

Toro 810108R1

Operating and Maintenance Instructions for 95-32XS01

$

$

Currently unavailable
