95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Transmission & Brake Parts Diagram

Riding Mower

Transmission & Brake Parts Diagram

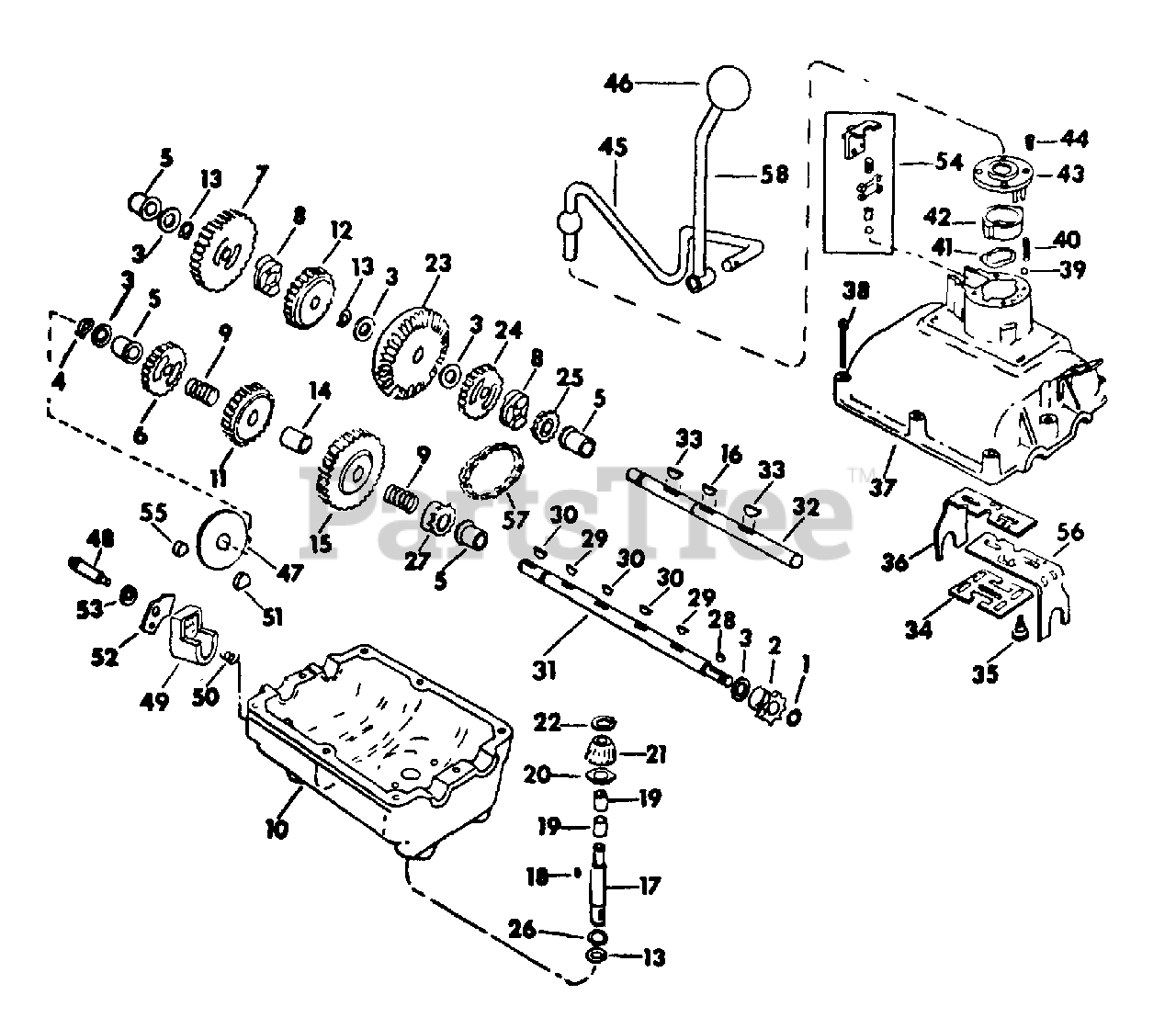

  • Title

Cub Cadet IH-58361-C91

TRANSMISSION ASSY -3 SPEED-

$

$

Currently unavailable

1

Cub Cadet IH-603540-C1

RING, 461 INV EXT RET

$

$

Not available

2

Cub Cadet IH-490696-R1

SPROCKET, 8 T

$

$

Not available

3

Cub Cadet IH-490697-R1

WASHER, PLAIN .030
(Superseded to 936-0336)

Note: USE AS REQUIRED

$4.49

$

In Stock, Qty 7

0

Cub Cadet IH-490698-R1

WASHER, PLAIN .040
(Superseded to 936-0337)

Note: USE AS REQUIRED

$4.49

$

In Stock, Qty 9

0

Cub Cadet IH-490699-R1

WASHER, PLAIN .050

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493511-R1

WASHER, PLAIN .036

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493512-R1

WASHER, PLAIN .026

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493513-R1

WASHER, PLAIN .046

Note: USE AS REQUIRED

$

$

Not available

Cub Cadet IH-493514-R1

WASHER. PLAIN .020
(Superseded to 936-0349)

Note: USE AS REQUIRED

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet IH-373523-R1

RING, RETAINING

$

$

Not available

5

Cub Cadet IH-490700-R1

BEARING, FLANGE
(Superseded to 748-0867)

$

$

Not available

6

Cub Cadet IH-490701-R1

GEAR, SPUR -20 T

$

$

Not available

7

Cub Cadet IH-77715-C1

GEAR W/SPACER SPUR -30T

Note: REPLACES IH-493517-C1

$

$

Not available

8

Cub Cadet IH-490703-R2

COLLAR, CLUTCH
(Superseded to FF-1574)

$

$

Not available

9

Cub Cadet IH-490704-R1

SPRING, COMPRESSION

$

$

Currently unavailable

10

Cub Cadet IH-56794-C1

HOUSING, LOWER

$

$

Currently unavailable

11

Cub Cadet IH-77716-C1

GEAR W/SPACER, SPUR -25 T

Note: REPLACES IH-490707-R1

$

$

Currently unavailable

12

Cub Cadet IH-77717-C1

GEAR W/SPACER, SPUR -25 T

Note: REPLACES IH-490708-R1

$

$

Currently unavailable

13

Cub Cadet IH-269174-R1

RING, 579 EXT RET
(Superseded to 916-0115)

$

$

Not available

14

Cub Cadet IH-490709-R1

SPACER

$

$

Currently unavailable

15

Cub Cadet IH-490710-R2

GEAR, SPUR -30 T

$

$

Not available

16

Cub Cadet IH-124549

KEY, 3/16 X 3/4 WOODRUFF 9
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

17

Cub Cadet IH-63736-C91

SHAFT KIT, INPUT

Note: REPLACES IH-490711-R1

$

$

Currently unavailable

18

Cub Cadet IH-124542

KEY, 3/32 X 1/2 WOODRUFF 2

$

$

Not available

19

Cub Cadet IH-490712-R91

BEARING, NEEDLE

$

$

Not available

20

Cub Cadet IH-56795-C1

WASHER, THRUST .093

$

$

Not available

21

PINION, BEVEL -16 T

Note: ORDER SHAFT KIT, IH-63736-C91

$

$

Not available

22

Cub Cadet IH-971043-R1

RING, RETAINING
(Superseded to 716-0865)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet IH-490715-R1

GEAR, BEVEL -42 T

$

$

Currently unavailable

24

Cub Cadet IH-490716-R1

GEAR, SPUR -20 T

$

$

Not available

25

Cub Cadet IH-549769-R1

SPROCKET, SPECIAL -12 T

$

$

Currently unavailable

26

Cub Cadet IH-350515-R1

WASHER, .656 X 1.000 X .054 PLN

$

$

Not available

27

Cub Cadet IH-549771-R1

SPROCKET, SPECIAL -12 T

$

$

Not available

28

Cub Cadet IH-547189-R1

KEY, WOODRUFF NO. 4 SPECIAL
(Superseded to 914-0129)

$

$

Not available

29

Cub Cadet IH-124543

KEY, 1/8 X 1/2 WOODRUFF 3

$

$

Not available

30

Cub Cadet IH-431787

KEY, 3/16 X 5/8 WOODRUFF 61

$

$

Not available

31

Cub Cadet IH-549772-R1

SHAFT, OUTPUT

$

$

Currently unavailable

32

Cub Cadet IH-493516-R2

SHAFT WIRING, IH-269174-R1, DRIVE

$

$

Not available

33

Cub Cadet IH-490721-R1

KEY, HI-PRO SPECIAL

$

$

Not available

34

Cub Cadet IH-490722-R1

PLATE, LOCK-OUT

$

$

Not available

35

Cub Cadet IH-549773-R1

SCREW, SHOULDER

$

$

Currently unavailable

36

Cub Cadet IH-490724-R2

FORK, SHIFTER LH

$

$

Not available

37

Cub Cadet IH-549774-R1

HOUSING, UPPER

$

$

Not available

38

Cub Cadet IH-490725-R1

SCREW, TAPPING

$

$

Not available

39

Cub Cadet IH-17006-R1

BALL, 3/16 CR-STL DETENT

$

$

Not available

40

Cub Cadet IH-490727-R1

SPRING, DETENT

$

$

Not available

41

Cub Cadet IH-490728-R1

WASHER, WAVE

$

$

Not available

42

Cub Cadet IH-490729-R1

INSERT, NYLON

$

$

Not available

43

Cub Cadet IH-549775-R1

COVER, NYLON

$

$

Not available

44

Cub Cadet IH-167084

SCREW, 10-24 X 1/2 C-Z CR-REC-PAN-HD TAP
(Superseded to 710-0473)

$4.49

$

In Stock, only 2 left!

0

45

Cub Cadet IH-58362-C1

HANDLE ASSY, SHIFTER

$

$

Currently unavailable

46

Cub Cadet IH-173808-C1

KNOB, SHIFTER
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

45

Cub Cadet IH-61129-C1

KNOB, SHIFTER
(Superseded to 920-3000)

$11.99

$

In Stock, only 3 left!

0

47

Cub Cadet IH-549776-R1

DISC, BRAKE

$

$

Not available

48

Cub Cadet IH-549777-R1

BOLT, SHOULDER

$

$

Not available

49

Cub Cadet IH-58590-C91

BRAKE KIT

$

$

Currently unavailable

50

Cub Cadet IH-549779-R1

SPRING, COMPRESSION

$

$

Not available

51

Cub Cadet IH-549780-R1

PUCK, FRICTION

$

$

Not available

52

Cub Cadet IH-58364-C1

LEVER ASSY, ACTUATING RH

$

$

Currently unavailable

53

Cub Cadet IH-549781-R1

WASHER, PLAIN .015

Note: USE AS REQUIRED

$

$

Currently unavailable

53

Cub Cadet IH-549782-R1

WASHER, PLAIN .006

Note: USE AS REQUIRED

$

$

Currently unavailable

54

Cub Cadet IH-58591-C91

KIT, SWITCH ASSY

Note: CONSISTS OF THE FOLLOWING EIGHT ITEMS

$

$

Not available

BALL, DETENT

Note: Not Available Seperately

$

$

Not available

SPRING, COMPRESSION

Note: Not Available Seperately

$

$

Not available

SHEET, INSTRUCTION

Note: Not Available Seperately

$

$

Not available

LABEL

Note: Not Available Seperately

$

$

Not available

PIN, ACTUATING

Note: Not Available Seperately

$

$

Not available

TERMINAL ASSY, BOARD

Note: Not Available Seperately

$

$

Not available

CONTACT ASSY, CARRIER

Note: Not Available Seperately

$

$

Not available

LUBRICANT

Note: Not Available Seperately

$

$

Not available

55

Cub Cadet IH-58365-C1

PUCK, FRICTION

$

$

Not available

56

Cub Cadet IH-549793-R1

FORK, SHIFTER RH

$

$

Currently unavailable

57

CHAIN, ROLLER

Note: USE 21 LINKS FROM A 10 FT ROLL MARKED, IH-475879-R91 AND ONE CONNECTING LINK, IH-1306D

$

$

Not available

Cub Cadet IH-1306D

LINK, #41 SINGLE PITCH CONNECTING
(Superseded to 913-0723)

$

$

Not available

58

Cub Cadet IH-57736-C1

HANDLE ASSY, SHIFT

$

$

Currently unavailable

Cub Cadet IH-120394

WASHER, .406 X .812 X .051 ZND
(Superseded to 936-0140)

$

$

Not available

Cub Cadet IH-177923

PIN, 1/8 X 3/4 ZND COT
(Superseded to 914-0474)

$

$

Not available
