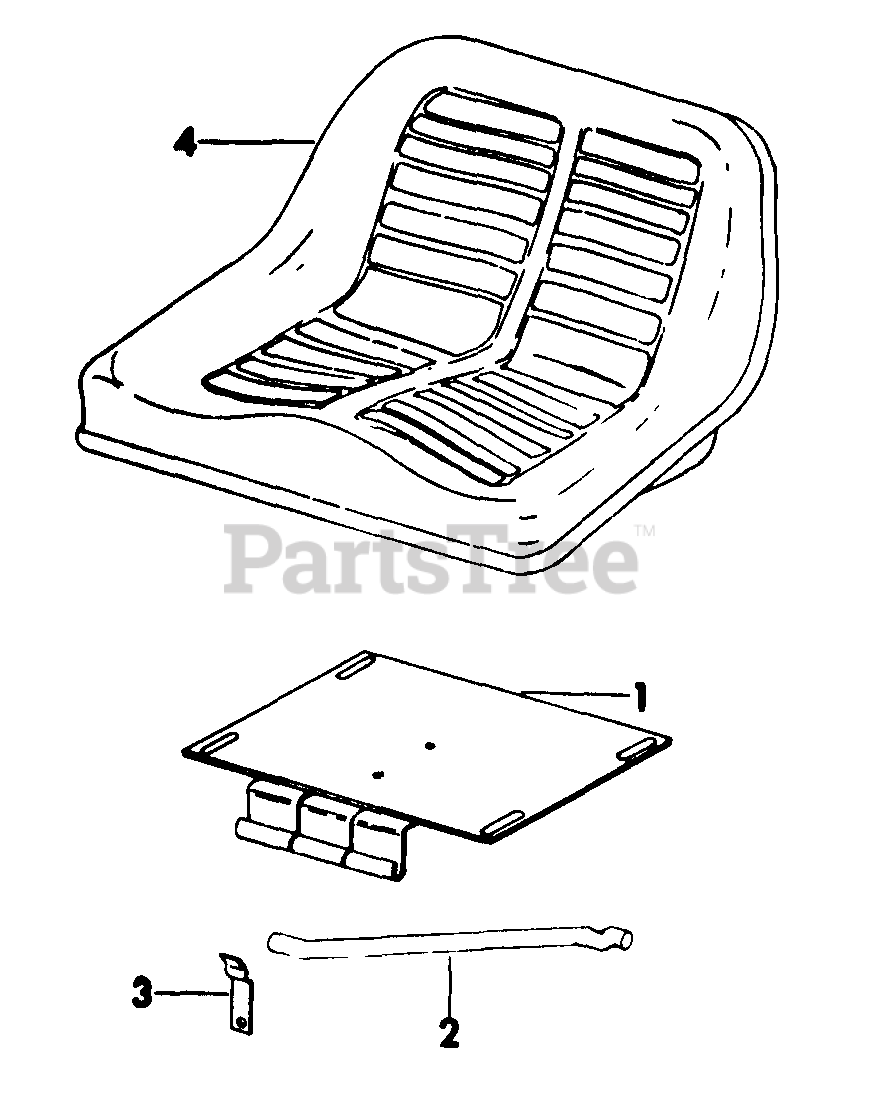

95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Seat & Support Parts Diagram

Riding Mower

Seat & Support Parts Diagram

  • Title

1

Cub Cadet IH-57863-C1

PLATE ASSY, SEAT SUPPORT

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, .344 X .688 X .051 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-180079

SCREW, 5/16-18 X 1.0 ZND HEX-HD
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet IH-57868-C1

ROD, SEAT SUPPORT

$

$

Currently unavailable

3

Cub Cadet IH-57869-C1

CLIP, HOLD DOWN

$

$

Currently unavailable

4

Cub Cadet IH-135763-C1

SEAT
(Superseded to 759-3148)

Note: REPLACES IH-528844-R1

$

$

Not available
