95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Body, Frame & Drawbar Parts Diagram

Riding Mower

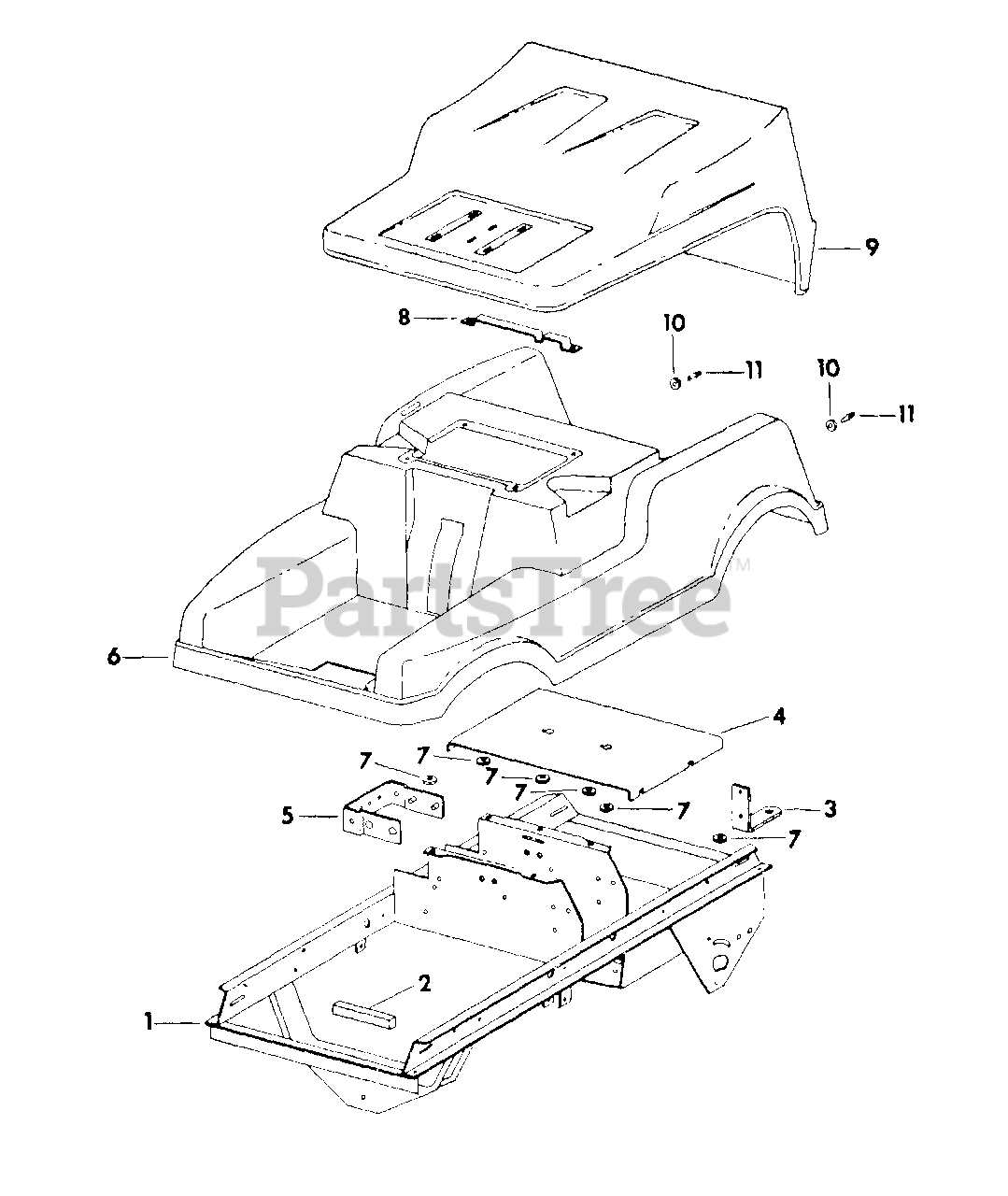

Body, Frame & Drawbar Parts Diagram

  • Title
1

Cub Cadet IH-57846-C2

FRAME ASSY, MAIN

$

$

Currently unavailable

2

Cub Cadet IH-491719-R1

SEAL, PRESS FRT REST

$

$

Not available

3

Cub Cadet IH-487953-R1

ANGLE DRAWBAR

$

$

Currently unavailable

Cub Cadet IH-180078

SCREW, 5/16-18 X 7/8 ZND HEX-HD CAP
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

Cub Cadet IH-411597-R1

NUT, 5/16-18 HEX. LOCK
(Superseded to 912-0429)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 C-Z
(Superseded to 936-0275)

$

$

Not available

4

Cub Cadet IH-57856-C1

PLATE BATTERY

$

$

Currently unavailable

Cub Cadet IH-180077

SCREW, 5/16-18 X 3/4 ZND HEX-HD CAP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .051 C-Z
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-120376

NUT, 5/16-18 ZND HEX.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet IH-57858-C1

BRACKET ASSY, SWITCH MOUNTING

$

$

Currently unavailable

Cub Cadet IH-180016

SCREW, 1/4-20 X 1/2 ZND HEX-HD

$

$

Currently unavailable

Cub Cadet IH-120380

WASHER. 1/4 ZND REG LOCK
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Cub Cadet IH-120375

NUT, 1/4-20 ZND HEX.
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

6

Cub Cadet IH-57609-C1

BODY, MOWER

$

$

Currently unavailable

7

Cub Cadet IH-487822-R1

SPACER, BODY MTG.

$

$

Not available

8

Cub Cadet IH-57859-C1

SUPPORT SEAT

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 ZND
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-180080

SCREW. 5/16-18 X 1-1/8 ZND HEX-HD CAP

$

$

Not available

$

$

Currently unavailable

9

$

$

Currently unavailable

Cub Cadet IH-120393

WASHER, 11/32 X 11/16 X .065 END
(Superseded to 936-0275)

$

$

Not available

Cub Cadet IH-180075

SCREW, 5/16-18 X 5/8 ZND HEX-HD CAP

$

$

Not available

10

Cub Cadet IH-57861-C1

BUMPER, REAR COVER

$

$

Currently unavailable

Cub Cadet IH-446121

WASHER, .156 X .312 X .027

$

$

Currently unavailable

11

$

$

Currently unavailable
