95 (0340020U) - International Harvester Riding Mower (1973 - 1978) Blade Motor Parts Diagram

Riding Mower

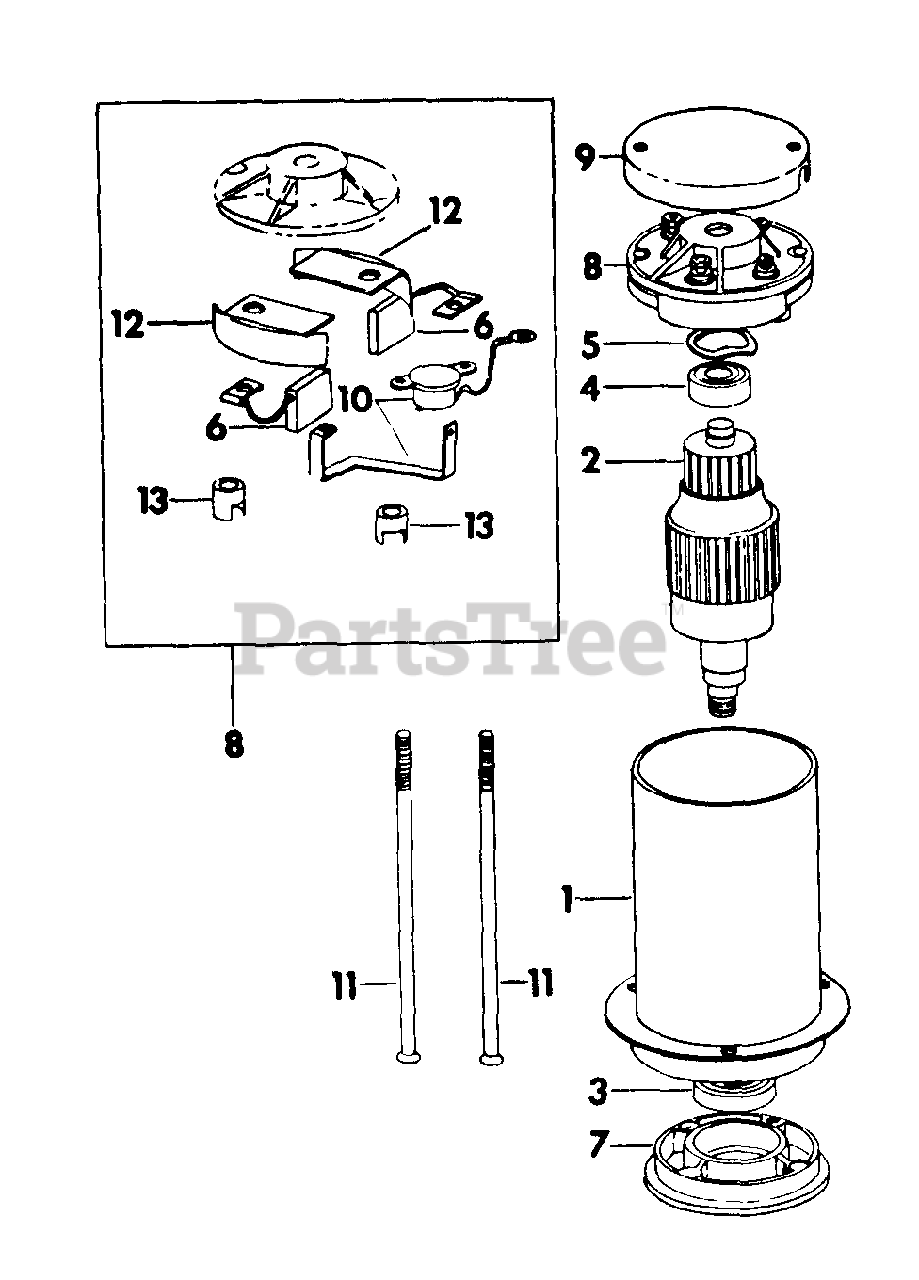

Blade Motor Parts Diagram

  • Title

Cub Cadet IH-57596-C1

MOTOR ASSY, BLADE

$

$

Currently unavailable

1

Cub Cadet IH-58725-C1

SHELL ASSY W/MAGNETS

$

$

Currently unavailable

2

Cub Cadet IH-58727-C1

ARMATURE ASSY W/BRGS

Note: INCLUDES REF NO 3 & 4

$

$

Currently unavailable

3

Cub Cadet IH-ST518

BEARING, DRIVE END

$

$

Currently unavailable

4

Cub Cadet IH-ST573

BEARING, COMMUTATOR END

$

$

Not available

5

Cub Cadet IH-58728-C1

WASHER, WAVE THRUST

$

$

Currently unavailable

6

$

$

Currently unavailable

7

Cub Cadet IH-58732-C1

END, FRT BELL

$

$

Currently unavailable

8

Cub Cadet IH-58734-C1

END ASSY, REAR BELL

Note: CONSISTS OF THE FOLLOWING FOUR ITEMS

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

PACKAGE W/SWITCH TERMINALS AND INSULATORS

$

$

Not available

PACKAGE W/MOTOR TERMINALS AND INSULATORS

$

$

Not available

9

Cub Cadet IH-58736-C1

COVER, COMMUTATOR END

$

$

Currently unavailable

10

Cub Cadet IH-58737-C1

THERMOSTAT, BRUSH PLATE

$

$

Currently unavailable

11

$

$

Currently unavailable

12

MOTOR TERMINALS AND INSULATORS PACKAGE

$

$

Not available

13

SWITCH TERMINALS AND INSULATORS PACKAGE

$

$

Not available

Cub Cadet IH-60006-C1

PACKAGE, INSULATOR HARDWARE

$

$

Currently unavailable
