949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Lifting Arm Parts Diagram

Remote Control Flail Mower

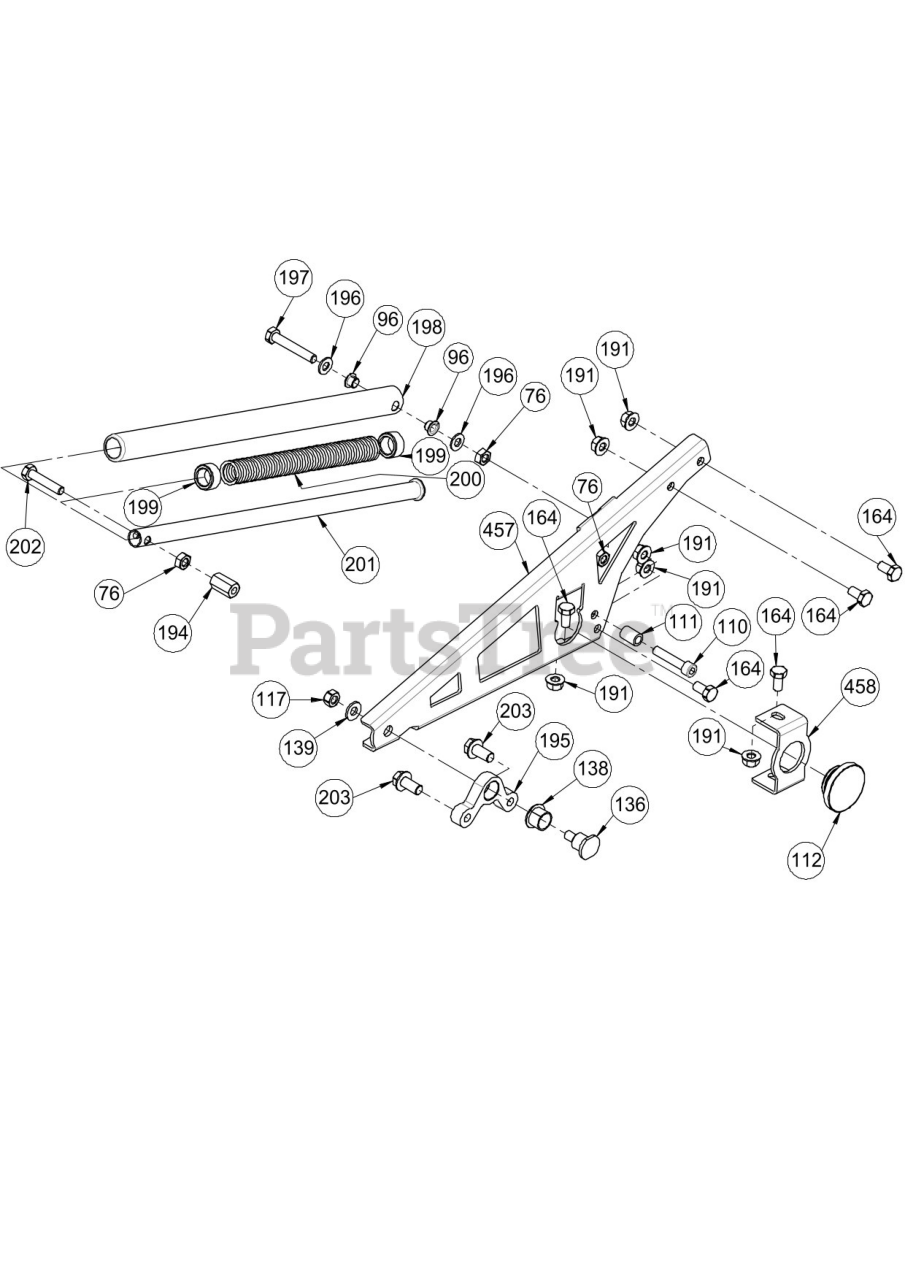

Lifting Arm Parts Diagram

  • Title

76

Gravely 06501111

NUT, HEX M10 DIN 934 8 ZCC

$

$

Currently unavailable

96

Gravely 05501605

BHSG, DU FLG BB1009DU

$

$

Currently unavailable

110

Gravely 06100325

SCR, SKH M10X50 DIN ISO 4762 10.9

$

$

Currently unavailable

111

Gravely 30241900

SPACER

$

$

Currently unavailable

112

Gravely 30240900

PLUG

$

$

Currently unavailable

117

Gravely 06501118

NUT, LK V-M10 DIN 980

$

$

Currently unavailable

136

Gravely 30242000

SCREW, COLLAR

$

$

Currently unavailable

138

Gravely 05501606

BHSG, DU FLG BB201DU

$

$

Currently unavailable

139

Gravely 06401401

WHSR, BLVL M10 DIN 6796

$

$

Currently unavailable

164

Gravely 05902321

BLT, HEX M10X20 DIN 933 8.8 ZCC

$

$

Currently unavailable

191

Gravely 06501105

NUT, FLG SLF LK M10 CL 8 ZCC

$

$

Currently unavailable

194

Gravely 06501103

NUT, COUPLING M10 DIN 6334 ZCC

$

$

Currently unavailable

195

Gravely 30242100

BRKT, PIVOT

$

$

Currently unavailable

196

Gravely 06401420

WSHR, FLT A M10.5 DIN 125 ZCC

$

$

Currently unavailable

197

Gravely 05902322

BLT, HEX M10X65 DIN 931 10.9 (BLK)

$

$

Currently unavailable

198

Gravely 30242200

SLEEVE, SPRING

$

$

Currently unavailable

199

Gravely 30241000

GUIDE, SPRING

$

$

Currently unavailable

200

Gravely 08300813

SPRING, COMPRESSION

$

$

Currently unavailable

201

Gravely 30242300

TUBE, SPRING

$

$

Currently unavailable

202

Gravely 05902323

BLT, HEX M10X50 DIN 931 8.8 ZCC

$

$

Currently unavailable

203

Gravely 05902324

BLT, SER FLG M12X25 VERBUS RIPP 100

$

$

Currently unavailable

457

Gravely 30242400

BRACKET, HOOD ARM

$

$

Currently unavailable

458

Gravely 30242500

ANGLE, SETTING

$

$

Currently unavailable
