949001 (OVIS 40 RC) - Gravely Remote Control Flail Mower (SN: 000101 & Above) Deck Lift & HOC Parts Diagram

Remote Control Flail Mower

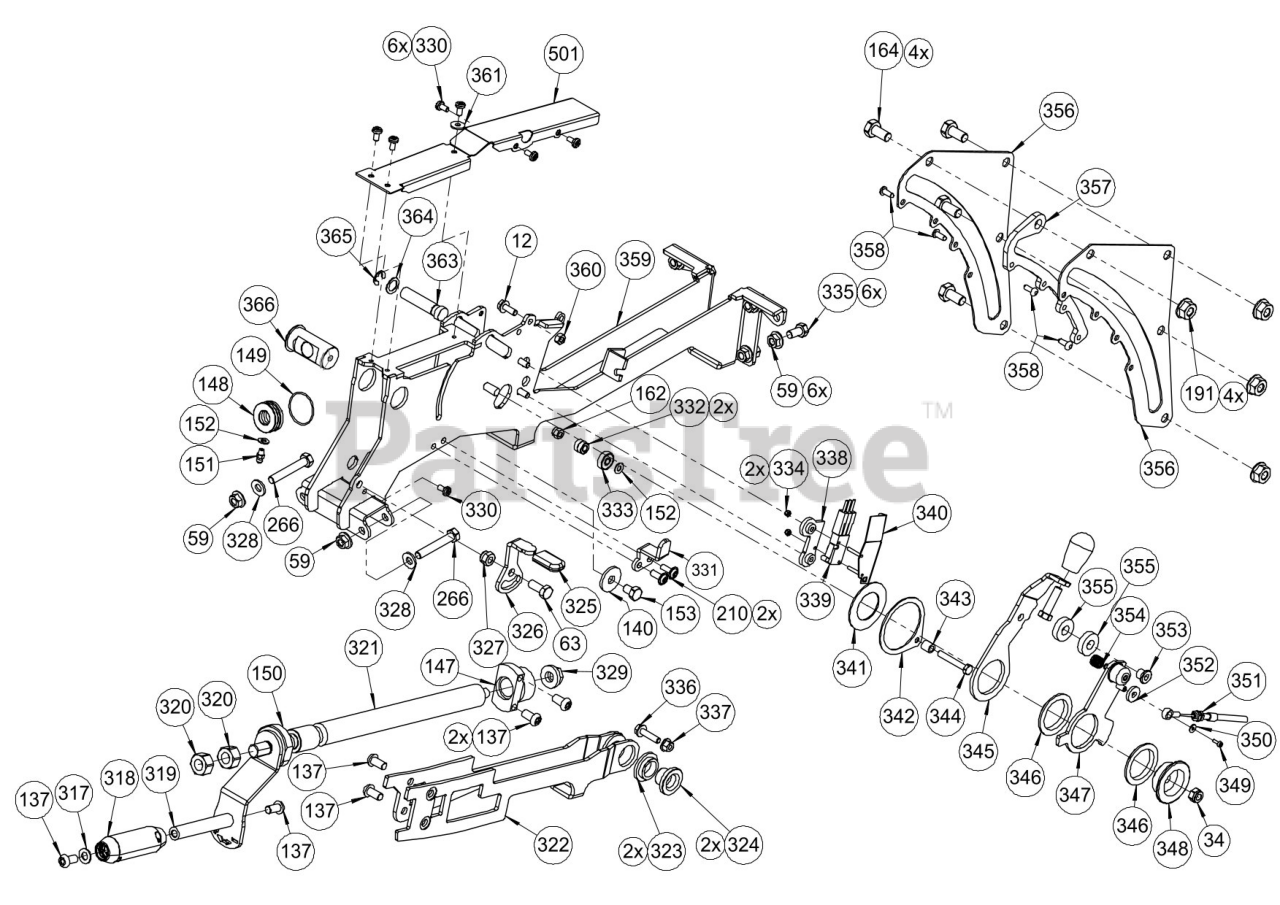

Deck Lift & HOC Parts Diagram

  • Title

12

Gravely 06501107

NUT, FLG SLF LK M6X16

$

$

Currently unavailable

59

Gravely 06501108

NUT, FLG SLF LK M8 CL 8 ZCC

$

$

Currently unavailable

34

Gravely 06501121

NUT, LK-NYL M8 DIN 985 8 ZCC

$

$

Currently unavailable

63

Gravely 05902332

BLT, HEX M8X20 DIN 933 8.8

$

$

Currently unavailable

137

Gravely 06100334

TORX BHCS M8X16 8.8

$

$

Currently unavailable

140

Gravely 06401431

WSHR, FLT M9 X M28 X M3 ZCC

$

$

Currently unavailable

147

Gravely 30251600

NUT, ADJUSTING SPINDLE

$

$

Currently unavailable

148

Gravely 05400823

BRG,BALL AXIAL-DP GROOVE-15X32X12

$

$

Currently unavailable

149

Gravely 30247700

O - RING 32X1,5

$

$

Currently unavailable

150

Gravely 30251700

HOUSING, BEARING/GREASE

$

$

Currently unavailable

151

Gravely 07002404

FITTING, GREASE

$

$

Currently unavailable

152

Gravely 06401416

WSHR, FLT M6 X M12 X M1 DIN 988

$

$

Currently unavailable

153

Gravely 05902316

BLT, HEX M8X12 DIN 933 8.8 ZCC

$

$

Currently unavailable

162

Gravely 06501110

NUT, HEX LK-NYL M6 DIN 982 8 ZCC

$

$

Currently unavailable

164

Gravely 05902321

BLT, HEX M10X20 DIN 933 8.8 ZCC

$

$

Currently unavailable

191

Gravely 06501105

NUT, FLG SLF LK M10 CL 8 ZCC

$

$

Currently unavailable

210

Gravely 06100336

TORX FBHCS M6X16-8.8

$

$

Currently unavailable

266

Gravely 05902304

BLT, HEX M8X 45 DIN 931 8.8 ZCC

$

$

Currently unavailable

317

Gravely 06401421

WSHR, FLT A M8.4 DIN 125 ZCC

$

$

Currently unavailable

318

Gravely 30247100

KNOB, CRANK HANDLE

$

$

Currently unavailable

319

Gravely 30252600

HANDLE, CRANK

$

$

Currently unavailable

320

Gravely 06501115

NUT, JAM M14X1.5 ZCC

$

$

Currently unavailable

321

Gravely 30252700

SPINDLE, ENGAGEMENT ADJUSTING

$

$

Currently unavailable

322

Gravely 30252800

BRACKET, ENGAGEMENT SPINDLE

$

$

Currently unavailable

323

Gravely 05501612

BUSHING, COLLAR

$

$

Currently unavailable

324

Gravely 30252900

BUSHING, LIFT ARM

$

$

Currently unavailable

325

Gravely 30247200

CAP, LOCKING PLATE

$

$

Currently unavailable

326

Gravely 30253000

HANDLE, LOCKING

$

$

Currently unavailable

327

Gravely 06501122

NUT, LK-NYL M8X1.25 DIN 982 8 ZCC

$

$

Currently unavailable

328

Gravely 06401403

WSHR - BLVL M8 DIN 6796

$

$

Currently unavailable

329

Gravely 06401410

WSHR, FLTT M11.3X24X4

$

$

Currently unavailable

330

Gravely 06100403

TORX SHCS M5X10 8.8 ZCC

$

$

Currently unavailable

331

Gravely 30253100

REST, HANDLE

$

$

Currently unavailable

332

Gravely 05400824

BRG,BALL 6X13X5 686-ZZ

$

$

Currently unavailable

333

Gravely 05400825

BRG,BALL 626-2RS DIN625(6X19X6)

$

$

Currently unavailable

334

Gravely 06501120

NUT, LK-NYL M3 DIN 985 5 ZCC

$

$

Currently unavailable

335

Gravely 05902408

BLT, HEX M8X16 DIN 933 8.8 ZCC

$

$

Currently unavailable

336

Gravely 05902409

BLT, FLG M6X25 DIN 6921 8.8 ZCC

$

$

Currently unavailable

337

Gravely 06501109

NUT, FLG-LK-NYL M6

$

$

Currently unavailable

338

Gravely 30253200

BRACKET, SWITCH MOUNTING

$

$

Currently unavailable

339

Gravely 30246400

SWITCH, SAFETY

$

$

Currently unavailable

340

Gravely 54901400

COVER, SWITCH

$

$

Currently unavailable

341

Gravely 06401430

WSHR, FLT M32 X M54 X M1.5

$

$

Currently unavailable

342

Gravely 30253351

DISC, RELEASE

$

$

Currently unavailable

343

Gravely 30237100

SPACER

$

$

Currently unavailable

344

Gravely 05902410

BLT, HEX M6X40 DIN 931 8.8 ZCC

$

$

Currently unavailable

345

Gravely 54901500

KIT, ENGAGEMENT LEVER

$

$

Currently unavailable

346

Gravely 05501613

BUSHING, ENGAGEMENT LEVER

$

$

Currently unavailable

347

Gravely 54901600

ASSY, LATCHING LEVER

$

$

Currently unavailable

348

Gravely 30253500

BUSHING, FLANGE

$

$

Currently unavailable

349

Gravely 06100326

SCR, SKH M3X8 DIN ISO 4762 8.8

$

$

Currently unavailable

350

Gravely 06401412

WSHR, FLT M3.2 DIN 9021 ZCC

$

$

Currently unavailable

351

Gravely 06900812

CABLE, PTO

$

$

Currently unavailable

352

Gravely 06401405

WSHR, FLT M6.4 DIN 7349 ST ZCC

$

$

Currently unavailable

353

Gravely 30253600

SPECIAL NUT M6

$

$

Currently unavailable

354

Gravely 08300816

SPRING, COMPRESSION

$

$

Currently unavailable

355

Gravely 30247300

WASHER, SPRING

$

$

Currently unavailable

356

Gravely 30253700

PLATE, CHEEK

$

$

Currently unavailable

357

Gravely 30253800

PLATE, STRUT

$

$

Currently unavailable

358

Gravely 06800225

RVT 5X12 A2/A2

$

$

Currently unavailable

359

Gravely 30257300

WLDMT, ENGAGEMENT

$

$

Currently unavailable

360

Gravely 06500925

NUT-STD M6-1.0 ZCC

$0.99

$

Usually ships in 4-12 days

0

361

Gravely 06401404

WSHR, FLT M5.3 DIN 9021-ST ZCC

$

$

Currently unavailable

363

Gravely 30253900

BOLT, LOCKING

$

$

Currently unavailable

364

Gravely 06401427

WSHR, FLT M12 DIN 988

$

$

Currently unavailable

365

Gravely 05700301

E-RING 1X.2 DIN 6799

$

$

Currently unavailable

366

Gravely 30251800

TRUNNION, HOC SPINDLE

$

$

Currently unavailable

501

Gravely 54901700

COVER, CONTROLS (W/ DECAL)

$

$

Currently unavailable
