9482-0 - Generac 750 Watt Portable Generator Generator Parts Diagram

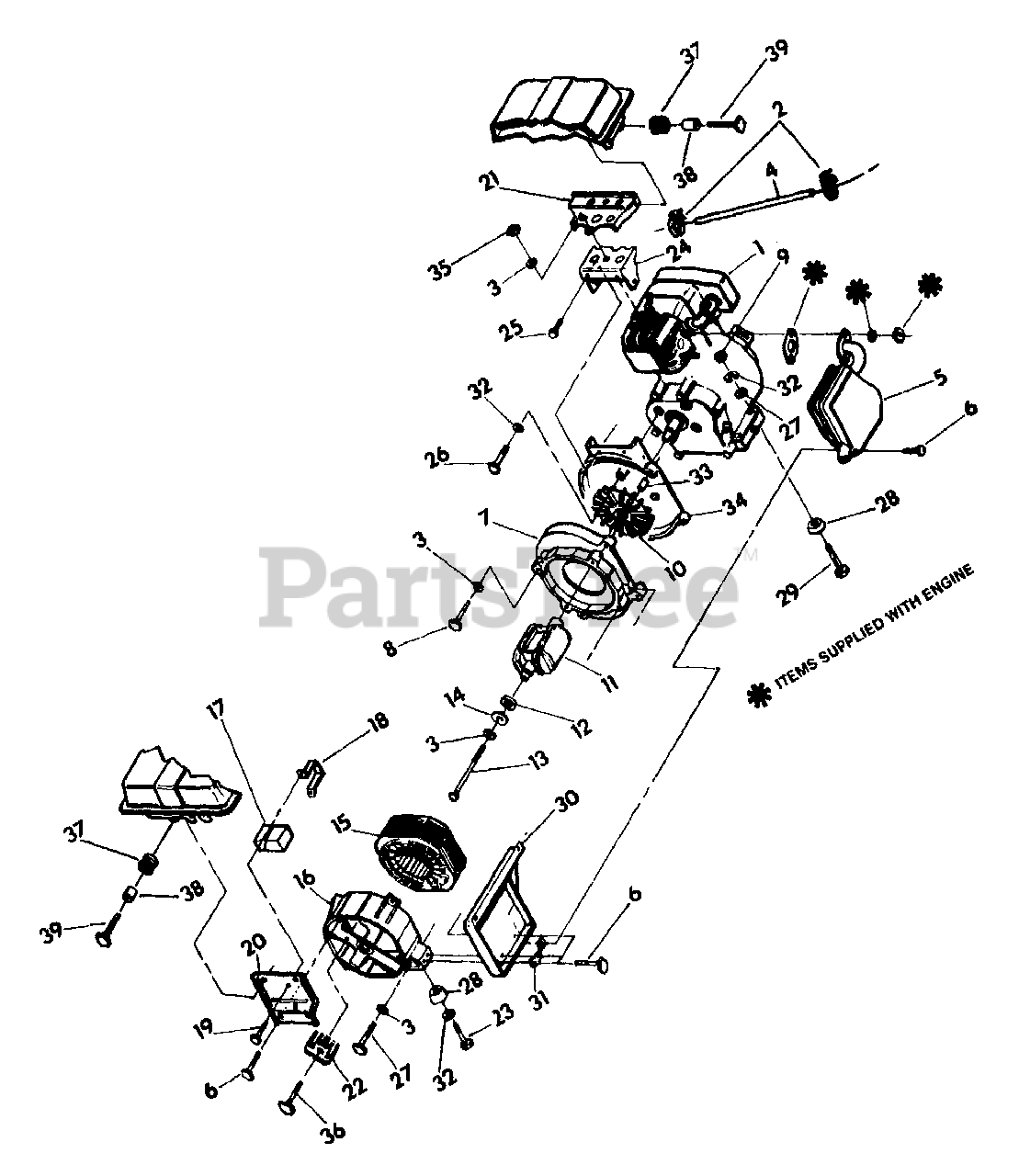

750 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 75904

Engine - Kawasaki FA-76

$

$

Currently unavailable

2

Briggs & Stratton 66836

Fuel Line Clamp

$

$

Currently unavailable

3

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66866

Fuel Hose

$

$

Currently unavailable

5

Briggs & Stratton 65778

Spark Arrestor type Exhaust Muffler
(Superseded to 65778GS)

$379.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66886

M6-1.0 x 12mm Hex Head Machine Screw (with lock washer)

$

$

Currently unavailable

7

Briggs & Stratton 67105

Cooling Fan Adaptor

$

$

Currently unavailable

8

Briggs & Stratton 51753

M3-1.0 x 40mm Hex Head Capscrew
(Superseded to 51753GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 64685

Cooling Fan

$

$

Currently unavailable

11

Briggs & Stratton 65771

Rotor

$

$

Currently unavailable

12

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65792

M6-1.0 x 150mm Rotor Bolt

$

$

Currently unavailable

14

Briggs & Stratton 65793

M6 Flat Washer (special)

$

$

Currently unavailable

15

Briggs & Stratton 65794

Stator

$

$

Currently unavailable

16

Briggs & Stratton 66373

Rear Bearing Carrier

$

$

Currently unavailable

17

Briggs & Stratton 66800

Excitation Capacitor

$

$

Currently unavailable

18

Briggs & Stratton 66385

Excitation Capacitor Support Bracket

$

$

Currently unavailable

19

Briggs & Stratton 65768

M5-0.8 x 6mm Screw (with lock washer)

$

$

Currently unavailable

20

Briggs & Stratton 66383

Generator End Bracket

$

$

Currently unavailable

21

Briggs & Stratton 65790

Engine End Bracket

$

$

Currently unavailable

22

Briggs & Stratton 65795

Battery Charge Rectifier
(Superseded to 65795GS)

$

$

Not available

23

Briggs & Stratton 67488

M8-1.25 x 20mm Pan Head Capscrew
(Superseded to 67488GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 66867

Air Duct

$

$

Currently unavailable

25

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 66889

M8-1.25 x 20mm Screw

$

$

Currently unavailable

27

Briggs & Stratton 66449G

M6-1.0 x 75mm Stator Bolt

$

$

Currently unavailable

28

Briggs & Stratton 70409

Vibration Mount

$

$

Not available

29

Briggs & Stratton 67489

M8-1.25 x 30mm Screw
(Superseded to 67489GS)

$6.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66870

Muffler Air Box

$

$

Currently unavailable

31

Briggs & Stratton 66869

Muffler Support Bracket

$

$

Currently unavailable

32

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 67106

Adaptor Casting Dowel

$

$

Currently unavailable

34

Briggs & Stratton 67118

Adaptor Casting

$

$

Not available

35

Briggs & Stratton 49813

M6-1.0 Hex Nut
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 49815

M5-0.8 x 20mm Taptite Screw
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 81873

Rubber Grommet

$

$

Currently unavailable

38

Briggs & Stratton 81875

O.D. 7.9-7L Ring Insert

$

$

Currently unavailable

39

Briggs & Stratton 81876

Hex Head Screw

$

$

Currently unavailable
