947300 - Gravely 169cc Blower, 6hp Subaru (SN: 000101 & Above) Main Assembly - 169cc Parts Diagram

169cc Blower, 6hp Subaru

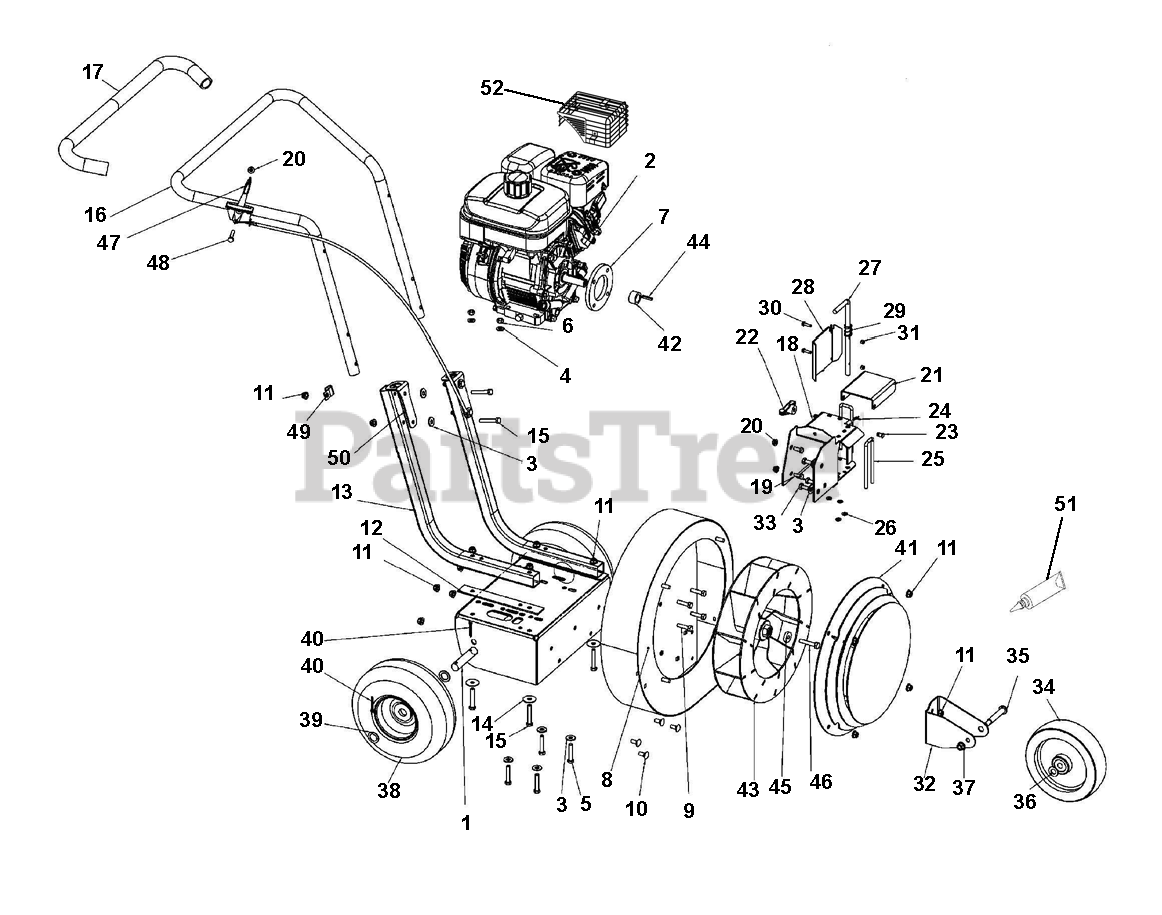

Main Assembly - 169cc Parts Diagram

  • Title

1

Gravely 04290053

Weldment, Blower Frame

$153.99

$

Usually ships in 4-12 days

0

2

Gravely 08200429

Engine, SUBARU 6HP SP170 (CARB)

Note: (CARB)

$

$

Not available

3

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06437200

Washer, Flat .344 x .688 x .065 Stl, YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

6

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

7

Gravely 04291451

Engine Spacer

$

$

Not available

8

Gravely 04290153

Weldment, Blower Housing SM

$237.99

$

Usually ships in 4-12 days

0

9

Gravely 05901423

Bolt, Hex .31-24 x 1.25 Grade 5

$

$

Not available

10

Gravely 06215700

Bolt, Round Head Square Neck .31-18 x .75 Grade 5
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

11

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 04290500

Rubber Spacer

$

$

Not available

13

Gravely 04349151

Handlebar, Lower

$25.99

$

Usually ships in 4-12 days

0

14

Gravely 06446900

Washer, Flat Steel .347 x 1.254 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 05957200

Bolt, Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 04290651

Tube, Handlebar, Upper

$162.99

$

Usually ships in 4-12 days

0

17

Gravely 04290700

Grip, Handlebar, Upper

$35.99

$

Usually ships in 4-12 days

0

18

Gravely 04290353

Weldment, Outlet Chute

$323.99

$

Usually ships in 4-12 days

0

19

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 06500012

Nut, .25-20 Nyloc Flange
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

21

Gravely 04290953

Bracket, Outlet Door

$12.99

$

Usually ships in 4-12 days

0

22

Gravely 07500105

Knob, Wing .31-18 UNC

$3.99

$

In Stock, Qty 20+

0

23

Gravely 06819100

Pin, Clevis .313 x .500

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 04291000

Wireform, Guard, Safety

$

$

Not available

26

Gravely 07027600

Push, Nut 1/4

$2.49

$

In Stock, Qty 9

0

27

Gravely 04291100

Wireform, Lever, Direction

$29.99

$

Usually ships in 4-12 days

0

28

Gravely 04291253

Bracket, Flap Direction

$

$

Not available

29

Gravely 08300526

Spring, Compression 1.0L x .72 OD .05DIA

$9.49

$

Usually ships in 4-12 days

0

30

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

31

Gravely 06536000

Nut, Locking Nylon 10-24 with Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 04290853

Bracket, Wheel, Front

$25.99

$

Usually ships in 4-12 days

0

33

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 07100911

Wheel 8 x 2 W/.5 Bore Black

$

$

Not available

35

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50 Hex Washer Head Grade 5

$6.99

$

In Stock, Qty 20+

0

36

Gravely 06443300

Washer, Flat Nylon .52 x 1.00 x .08

$0.99

$

In Stock, Qty 20+

0

37

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 07100910

Wheel, 10 x 3.75 Grey

$79.99

$

Usually ships in 4-12 days

0

39

Gravely 06441400

Washer, Flat Steel .754 x 1.125 x .062
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 06701100

Pin, Cotter .16 x 1.25 Extended Prong Square Cut

$1.99

$

Usually ships in 4-12 days

0

41

Gravely 04290451

Weldment, Inlet Guard SM

$231.99

$

Usually ships in 4-12 days

0

42

Gravely 05501037

Bushing, Sleeve .76 x 1.13 x .65

$13.99

$

Usually ships in 4-12 days

0

43

Gravely 04296100

Weldment, Fan, Blower SM

$221.99

$

Usually ships in 4-12 days

0

44

Gravely 06601300

Key, Square .188 x 1.00 x .188

$1.49

$

In Stock, Qty 5

0

45

Gravely 06400836

Washer, Flat Steel .350 x 1.00 x .250

$

$

Not available

46

Gravely 05900128

Bolt, Hex .31-24 x 2.00 Grade 8

$

$

Not available

47

Gravely 04300300

Throttle Control

$

$

Not available

48

Gravely 05967100

Bolt, Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

49

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 8

0

50

Gravely 04349251

Bracket, Handlebar Mount

$16.99

$

Usually ships in 4-12 days

0

51

Gravely 00999901

Loctite 609® .5 ml

$3.99

$

Usually ships in 4-12 days

0

52

Gravely 04555051

Weldment, Muffler Guard SP170 Blower (947300)

Note: (947300)

$45.99

$

Usually ships in 4-12 days

0
