947104 - Parker 265cc Walk-Behind Blower (SN: 000101 & Above) Main Assembly 256 Parts Diagram

265cc Walk-Behind Blower

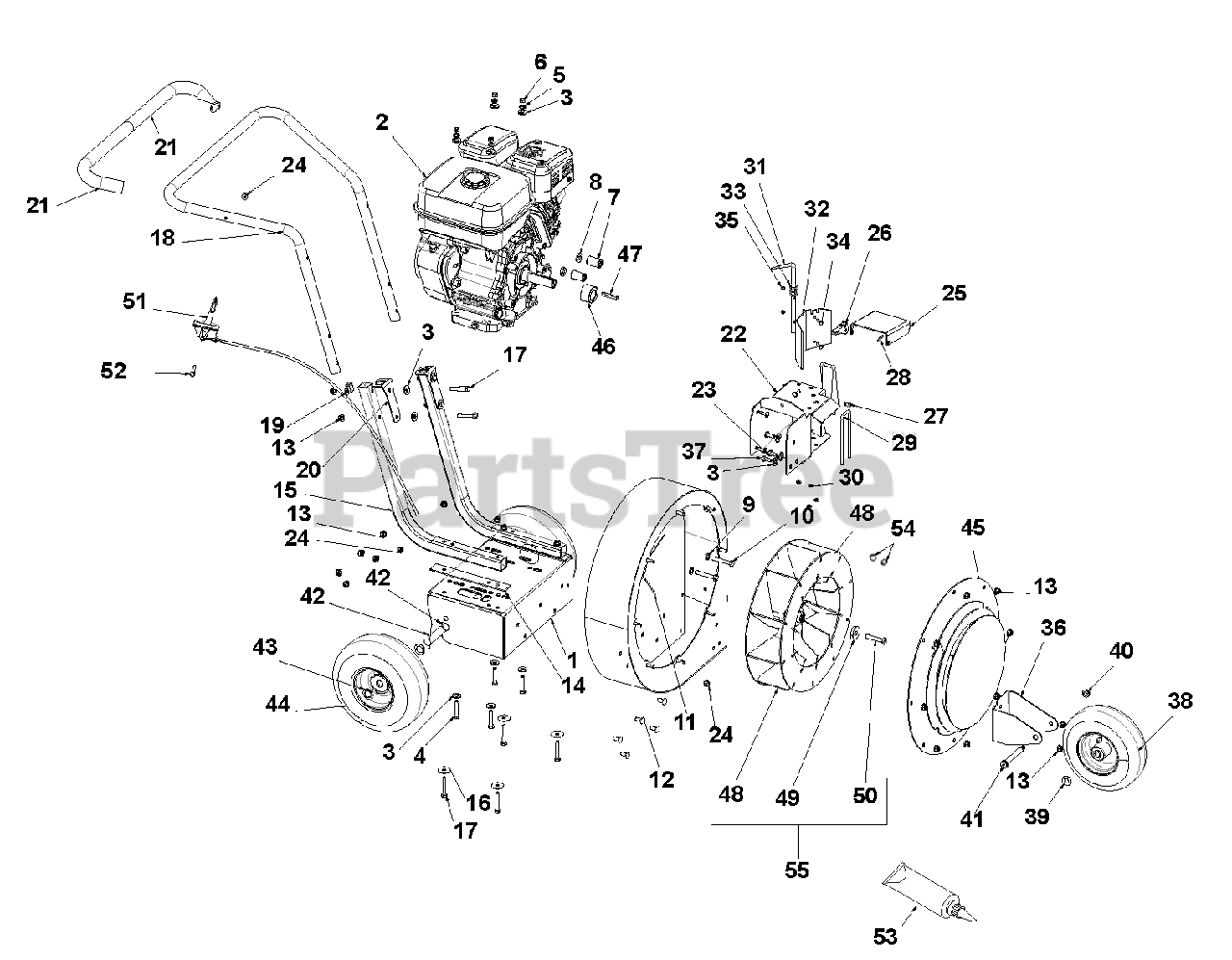

Main Assembly 256 Parts Diagram

  • Title

1

Ariens 04290053

WMT-BLOWER FRAME, SM

$153.99

$

Usually ships in 4-12 days

0

2

Ariens 08200440

ENGINE,SUBARU 9HP EX27 (CARB)

Note: (CARB)

$

$

Not available

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

5

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

7

Ariens 04299451

SPACER, .38X.875X1.38

$

$

Not available

8

Ariens 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 04299553

WMT-BLOWER HOUSING MED

$268.99

$

Usually ships in 4-12 days

0

12

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

13

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 04290500

SPACER-RUBBER

$

$

Not available

15

Ariens 04349151

TUBE-HANDLEBAR, LOWER SQ

$25.99

$

Usually ships in 4-12 days

0

16

Ariens 06446900

WSHR-FL-STL .347X1.254X.048YWZ
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

17

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 04290651

TUBE-HANDLEBAR, UPPER

$162.99

$

Usually ships in 4-12 days

0

19

Ariens 06909400

J-CLAMP

$3.49

$

In Stock, Qty 8

0

20

Ariens 04349251

BRKT-HANDLEBAR MOUNT

$16.99

$

Usually ships in 4-12 days

0

21

Ariens 04290700

GRIP-HANDLEBAR, UPPER

$35.99

$

Usually ships in 4-12 days

0

22

Ariens 04299653

WMT-OUTLET CHUTE MED

$

$

Not available

23

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 15

0

25

Ariens 04299753

BRKT, OUTLET DOOR

$112.99

$

Usually ships in 4-12 days

0

26

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

27

Ariens 06819100

PIN-CLEV .313X.500 YWZC

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 04299800

WIREFORM-GUARD, SAFETY

$

$

Not available

30

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 9

0

31

Ariens 04291100

WIREFORM-LEVER, DIRECTION

$29.99

$

Usually ships in 4-12 days

0

32

Ariens 04299953

BRKT-FLAP, DIRECTION

$

$

Not available

33

Ariens 08300526

SPRING-COMP 1.0LX.72 OD .05DIA

$9.49

$

Usually ships in 4-12 days

0

34

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

35

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 04300153

BRKT-WHEEL, FRONT

$

$

Not available

37

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 07100923

WHEEL-9X2.5 PNEU- WHITE RIM

$

$

Not available

39

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

40

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 07070125

BLT-SHLDR .5X3.25X.38-16

$4.99

$

Usually ships in 4-12 days

0

42

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

$1.99

$

Usually ships in 4-12 days

0

43

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 07100922

WHEEL-10X3.75 PNEU. WHITE

$

$

Not available

45

Ariens 04300051

WMT-INLET GUARD MED

$

$

Not available

46

Ariens 05501038

BSHG-SLV, 1.0X1.75X1.0

$9.49

$

Usually ships in 4-12 days

0

47

Ariens 06601800

KEY-STR .25X1.75X.25

$3.99

$

In Stock, only 2 left!

0

48

Ariens 04433600

WMT-FAN, MED W/SET SCRS
(Superseded to 54700200)

$268.99

$

Usually ships in 4-12 days

0

49

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

$6.99

$

Usually ships in 4-12 days

0

50

Ariens 05901426

BLT-HEX .44-20X2.00 G5 YZ EP80

$5.99

$

Usually ships in 4-12 days

0

51

Ariens 04300300

THROTTLE CONTROL

$

$

Not available

?52

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

?53

Ariens 00999901

ADHESIVE-LOCTITE 609 .5ML

$3.99

$

Usually ships in 4-12 days

0

54

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

$2.99

$

In Stock, Qty 15

0

55

Ariens 54700200

KIT-9HP FAN REPLACEMENT

$268.99

$

Usually ships in 4-12 days

0
