947031 - Gravely Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Blower Housing Parts Diagram

Blower, 8hp Briggs & Stratton

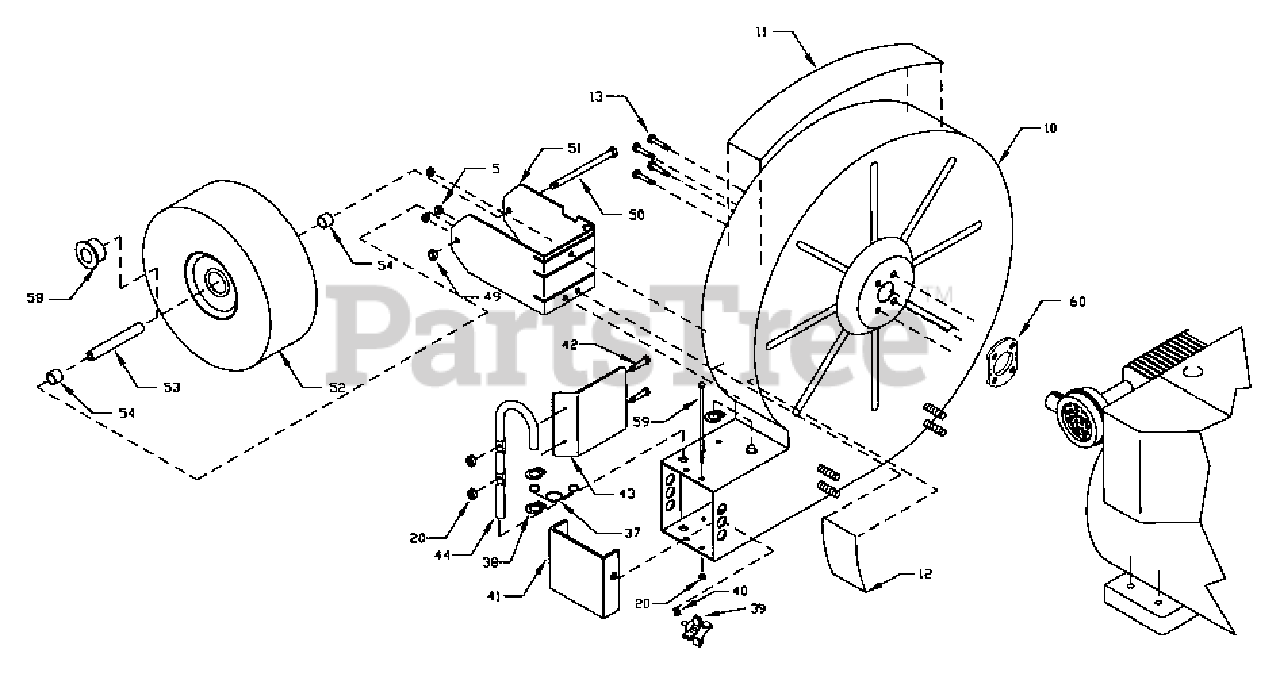

Blower Housing Parts Diagram

  • Title

10

Gravely 04703400

8, 9 HP Housing

$

$

Not available

11

Gravely 04703600

Gravely Housing Label - 8 HP

$

$

Not available

12

Gravely 04703800

Warning Label

$

$

Not available

13

Gravely 04705900

5/16-24 x 3/4 Whiz Head Flange Bolt

$

$

Not available

20

Gravely 04706100

10-32 2-Way Lock Nut

$

$

Not available

37

Gravely 04703900

Deflector Spring

$

$

Not available

38

Gravely 04704000

Retaining Ring

$

$

Not available

39

Gravely 04704100

Knob

$

$

Not available

40

Gravely 06307200

5/16 External Tooth Lock Washer
(Superseded to 06300125)

$0.99

$

Usually ships in 4-12 days

0

41

Gravely 04704300

8, 9 HP Side Deflector

$

$

Not available

42

Gravely 04706200

10-32 x 5/8 Serrated Flange Screw

$

$

Not available

43

Gravely 04704500

8, 9 HP Internal Deflector

$

$

Not available

44

Gravely 04704700

Deflector Handle

$

$

Not available

49

Gravely 06529600

3/8-16 2-Way Lock Nut
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 04704800

3/8-16 x 5 1/4 Bolt

$

$

Not available

51

Gravely 04704900

Wheel Bracket

$

$

Not available

52

Gravely 04705100

Pneumatic Wheel Symmetrical

$

$

Not available

53

Gravely 04705200

Pneumatic Wheel Sleeve

$

$

Not available

54

Gravely 04705300

Front Wheel Bracket Spacer

$

$

Not available

58

Gravely 04705400

Pneumatic Wheel Bearing

$

$

Not available

59

Gravely 04705500

10-32 x 5 1/2 Hex M/S

$

$

Not available

60

Spacer, Engine Housing

Spacer, Engine Housing

Note: Not Used

$

$

Not available
