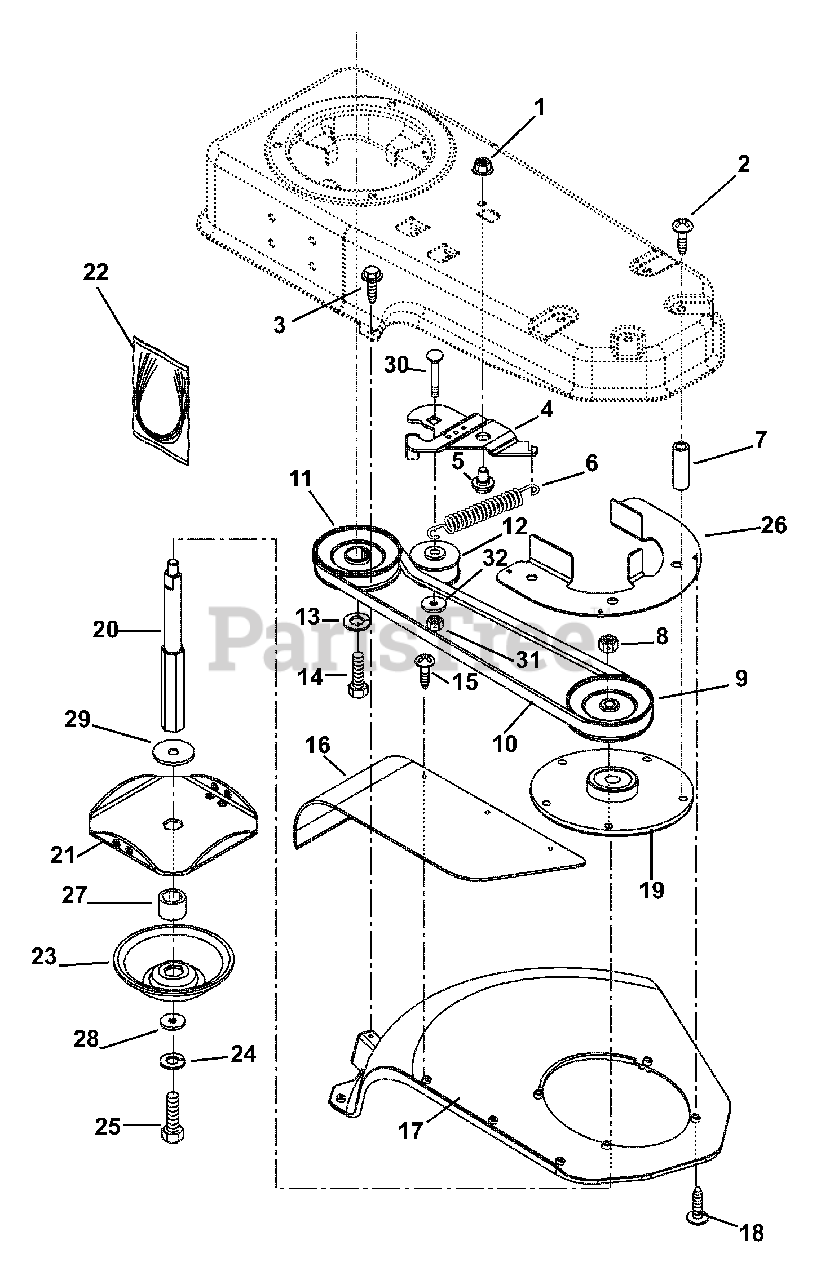

946504 (ST 622) - Gravely Wheeled Trimmer, 6hp Tecumseh (SN: 000101 & Above) Spindle, Belt & Guards Parts Diagram

Wheeled Trimmer, 6hp Tecumseh

Spindle, Belt & Guards Parts Diagram

  • Title

1

Gravely 06534800

Nut-Locking- Flange .38-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 07416100

Screw-Tapping .38-16 x 2.75

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 07413000

Screw-Tapping 10-24 x .75
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

4

Gravely 04640800

Bracket-Idler

$

$

Not available

5

Gravely 07056700

Bolt-Shoulder .38-16 x .135

$3.99

$

In Stock, only 2 left!

0

6

Gravely 08314900

Spring-Tension .035 x .45 x 2.75

$13.99

$

In Stock, only 1 left!

0

7

Gravely 05532300

Spacer-Jackshaft

$3.99

$

In Stock, Qty 15

0

8

Gravely 06542200

Nut-Locking-Flange .38-24 Grade 5

$2.49

$

In Stock, only 2 left!

0

9

Gravely 07326300

Pulley-V 3.50 O.D. x .87 Wide (Cut)

Note: (Cut)

$34.99

$

Usually ships in 4-12 days

0

10

Gravely 07236900

Belt-V A-RMA 46.06 x .50

$37.99

$

In Stock, only 1 left!

0

11

Gravely 07326400

Sheave-Engine 3.50 O.D. x .87 Wide
(Superseded to 54600800)

$107.99

$

Usually ships in 4-12 days

0

12

Gravely 07326500

Idler-Flat 1.88 O.D. x .75 Wide

$25.99

$

In Stock, only 1 left!

0

13

Gravely 06308800

Washer-Locking .38 x .94 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05960300

Bolt-Hex .38-24 x 1.00

$2.99

$

In Stock, only 1 left!

0

15

Gravely 07411000

Screw-Tapping 10-16 x .625 Hex Washer Head

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 04641500

Guard-Debris

$15.99

$

In Stock, only 1 left!

0

17

Gravely 04640100

Shield-Trimmer

$21.99

$

In Stock, only 1 left!

0

18

Gravely 07413000

Screw-Tapping 10-24 x .75
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

19

Gravely 04640600

Housing-Jackshaft
(Superseded to 04640601)

$180.99

$

Usually ships in 4-12 days

0

20

Gravely 04641300

Shaft-Cutter-Hex

$87.99

$

In Stock, only 1 left!

0

21

Gravely 04641000

Disc-Cutter-Hex

$25.99

$

In Stock, Qty 6

0

22

Gravely 04641800

Line-Cutter 18" (Pack of 6)
(Superseded to 70761200)

Note: (Pack of 6)

$21.99

$

In Stock, Qty 8

0

23

Gravely 04641100

Guide-Height-Hex
(Superseded to 04627000)

$49.99

$

In Stock, only 3 left!

0

23

Gravely 04645000

Guide-Height-Long Life
(Superseded to 04630600)

$51.99

$

Usually ships in 4-12 days

0

24

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 04640953

Finger-Belt

$

$

Not available

27

Gravely 05532500

Spacer-Hex

$3.99

$

In Stock, only 2 left!

0

28

Gravely 06446300

Washer-Flat-Steel .344 x 1.13 x .135
(Superseded to 06401104)

$3.99

$

In Stock, only 3 left!

0

29

Gravely 04640700

Shield-Dust

$24.99

$

Usually ships in 4-12 days

0

30

Gravely 06225600

Bolt-Round Head Short Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200328)

$3.99

$

Usually ships in 4-12 days

0

31

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
