946502 (ST 622) - Gravely Wheeled Trimmer, 6hp Tecumseh (SN: 000101 & Above) Frame, Swivel & Wheels Parts Diagram

Wheeled Trimmer, 6hp Tecumseh

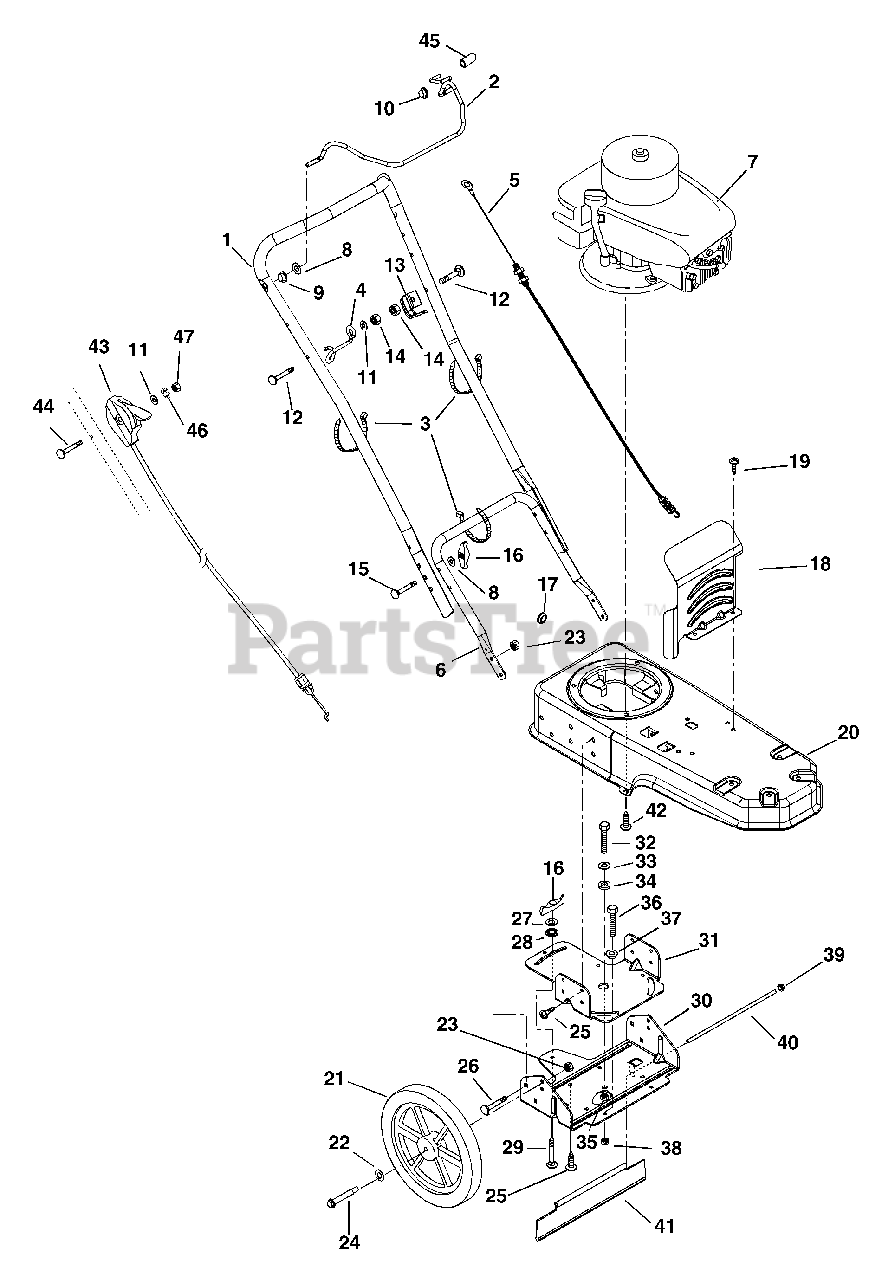

Frame, Swivel & Wheels Parts Diagram

  • Title
1

Gravely 04640451

Handlebar-Upper

$127.99

$

Usually ships in 4-12 days

0

2

Gravely 03809051

Bail-Clutch Control

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 036313

Cable-Tie
(Superseded to 07517300)

$

$

Not available

4

Gravely 04642100

Guide-Pullcord

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 06944500

Cable-Control

$44.99

$

In Stock, only 3 left!

0

6

Gravely 04640551

Handlebar-Lower

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 54600500

Kit-6 H.P.-Tecumseh Engine

$

$

Not available

8

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05514500

Bushing-Flange .325 x .444 x .440 x .560

$3.99

$

In Stock, Qty 20+

0

10

Gravely 02215300

Nut-Push .25

$1.99

$

In Stock, Qty 16

0

11

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06220100

Bolt-Round Head Extra Long Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

13

Gravely 04642351

Cable-Anchor

$

$

Not available

14

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06225800

Bolt Round Head Square Neck Full Thread .31-18 x 2.00 Grade 5

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 07531700

Knob-Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 07532200

Grommet .50 I.D.

$

$

Not available

18

Gravely 04642553

Guard-Engine

$

$

Not available

19

Gravely 07412900

Screw-Tapping .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04640053

Frame-Trimmer

$

$

Not available

21

Gravely 07153200

Wheel 16 x 1.75 x .50

$

$

Not available

22

Gravely 06441100

Washer-Flat-Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07056800

Bolt-Shoulder .38-16 x 2.50

$6.99

$

In Stock, Qty 20+

0

25

Gravely 07415400

Screw-Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 040380

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06514900)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06514900

Nut-Push .312

$0.99

$

In Stock, Qty 20+

0

29

Gravely 06216100

Bolt-Round Head Square Neck .31-18 x 1.00 )
(Superseded to 06200231)

Note: Bolt-Round Head Square Neck .31-18 x 1.00 )

$1.49

$

In Stock, Qty 20+

0

30

Gravely 04640351

Bracket-Axle Swivel

$150.99

$

Usually ships in 4-12 days

0

31

Gravely 04640251

Base-Swivel

$125.99

$

Usually ships in 4-12 days

0

32

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

33

Gravely 06442000

Washer-Flat-Steel .562 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

34

$3.99

$

In Stock, only 2 left!

0

35

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

36

Gravely 05946900

Bolt-Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 05514800

Bushing Flange .312 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

38

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 07008200

Nut-Push .312

$2.49

$

In Stock, Qty 20+

0

$22.99

$

In Stock, only 1 left!

0

41

Gravely 07531500

Guard-Rear-Swivel

$15.99

$

In Stock, only 1 left!

0

42

Gravely 07414100

Screw-Tapping .38-16 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

43

Gravely 06945100

Throttle-Control

$33.99

$

In Stock, only 1 left!

0

44

Gravely 06222900

Bolt-Round Head Square Neck .25-20 x 2.00

$1.49

$

In Stock, only 1 left!

0

45

Gravely 07517000

Cap-Vinyl .25 I.D.

$3.49

$

In Stock, Qty 10

0

46

Gravely 06308400

Washer-Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 06533200

Nut-Hex .25-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0
