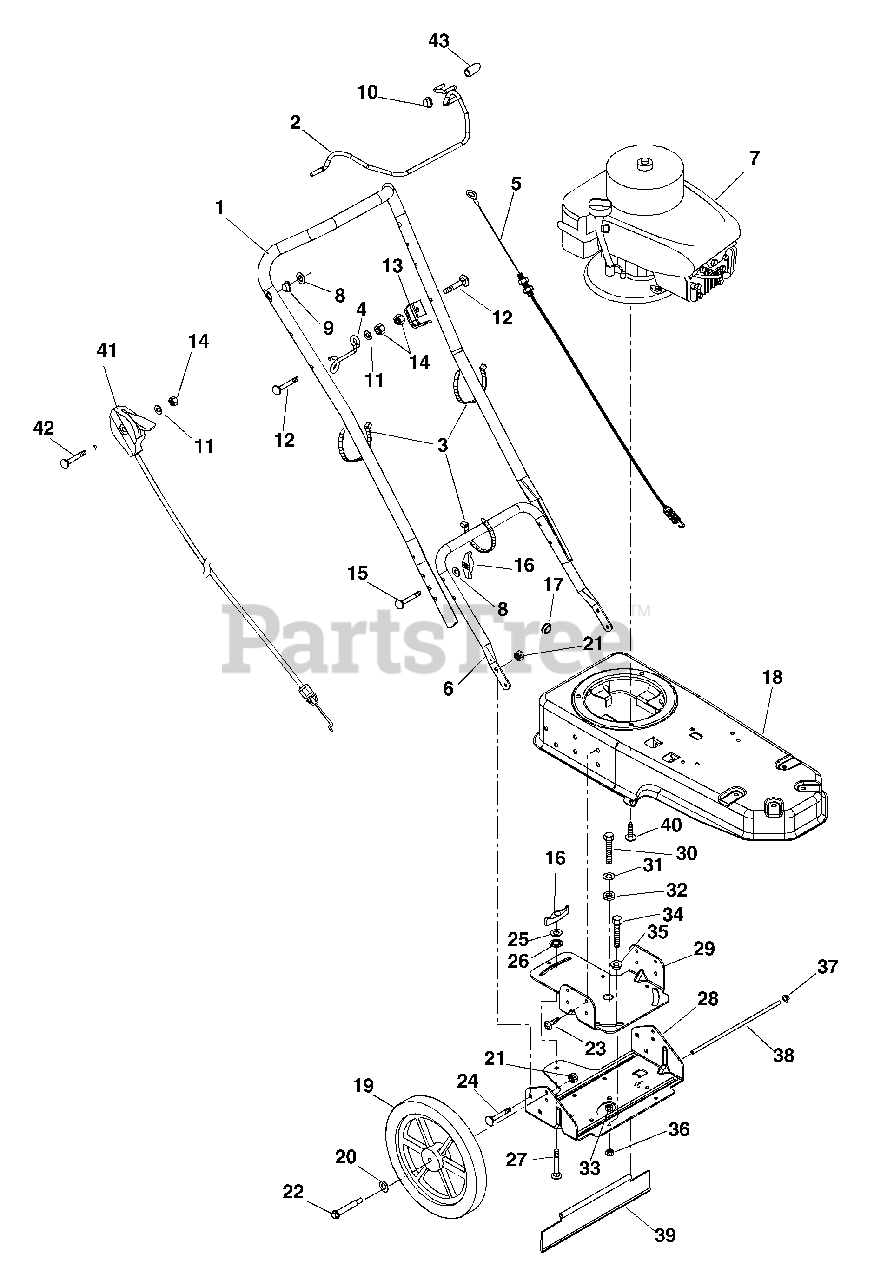

946401 (ST 622) - Ariens 22" Walk-Behind String Trimmer, 6hp Tecumseh (SN: 000101 & Above) Frame, Engine, Swivel & Wheels Parts Diagram

22" Walk-Behind String Trimmer, 6hp Tecumseh

Frame, Engine, Swivel & Wheels Parts Diagram

  • Title

1

Ariens 04640451

HANDLEBAR - UPPER

$127.99

$

Usually ships in 4-12 days

0

2

Ariens 03809051

BAIL SS LF

$77.99

$

Usually ships in 4-12 days

0

3

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

4

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

5

Ariens 06944500

CABLE - CONTROL

$44.99

$

In Stock, only 3 left!

0

6

Ariens 04640551

HANDLEBAR - LOWER

$60.99

$

Usually ships in 4-12 days

0

7

Ariens 08262000

ENGINE - 6 HP TEC CENTURA

$

$

Not available

8

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

10

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

11

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 4 left!

0

13

Ariens 04642351

ANCHOR - CABLE

$

$

Not available

14

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06225800

BLT-RDHDSQNKFT .31-18X2.0 G5YZ

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

17

Ariens 07532200

GROMMET .50 ID

$

$

Not available

18

Ariens 04640057

FRAME - TRIMMER

$

$

Not available

19

Ariens 07153300

WHEEL 14 X 1.75 X .50
(Superseded to 07153301)

$34.99

$

In Stock, only 1 left!

0

20

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

21

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07056800

BLT-SHLDR .38-16X2.50 HWH G5

$6.99

$

In Stock, Qty 20+

0

23

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

25

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 04640351

BRACKET - AXLE - SWIVEL

$150.99

$

Usually ships in 4-12 days

0

29

Ariens 04640251

BASE - SWIVEL

$125.99

$

Usually ships in 4-12 days

0

30

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

31

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

32

Ariens 05532400

SPACER .531 X 1.00 X .225

$3.99

$

In Stock, only 2 left!

0

33

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

34

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05514800

BSHG-FLG .32X.500X.344X.880

$2.49

$

In Stock, only 3 left!

0

36

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

38

Ariens 04641200

ROD

$22.99

$

In Stock, only 1 left!

0

39

Ariens 07531500

GUARD - REAR - SWIVEL

$15.99

$

In Stock, only 1 left!

0

40

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

41

Ariens 06945100

CONTROL - THROTTLE

$33.99

$

In Stock, only 1 left!

0

42

Ariens 06209300

BLT-RDHDXLSQNK .25-20X2.0 G5YZ

$2.99

$

Usually ships in 4-12 days

0

43

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0
