946154 - Ariens 22" Walk-Behind String Trimmer, 149cc Kohler XT6 (SN: 005000 & Above) Trimmer head Parts Diagram

22" Walk-Behind String Trimmer, 149cc Kohler XT6

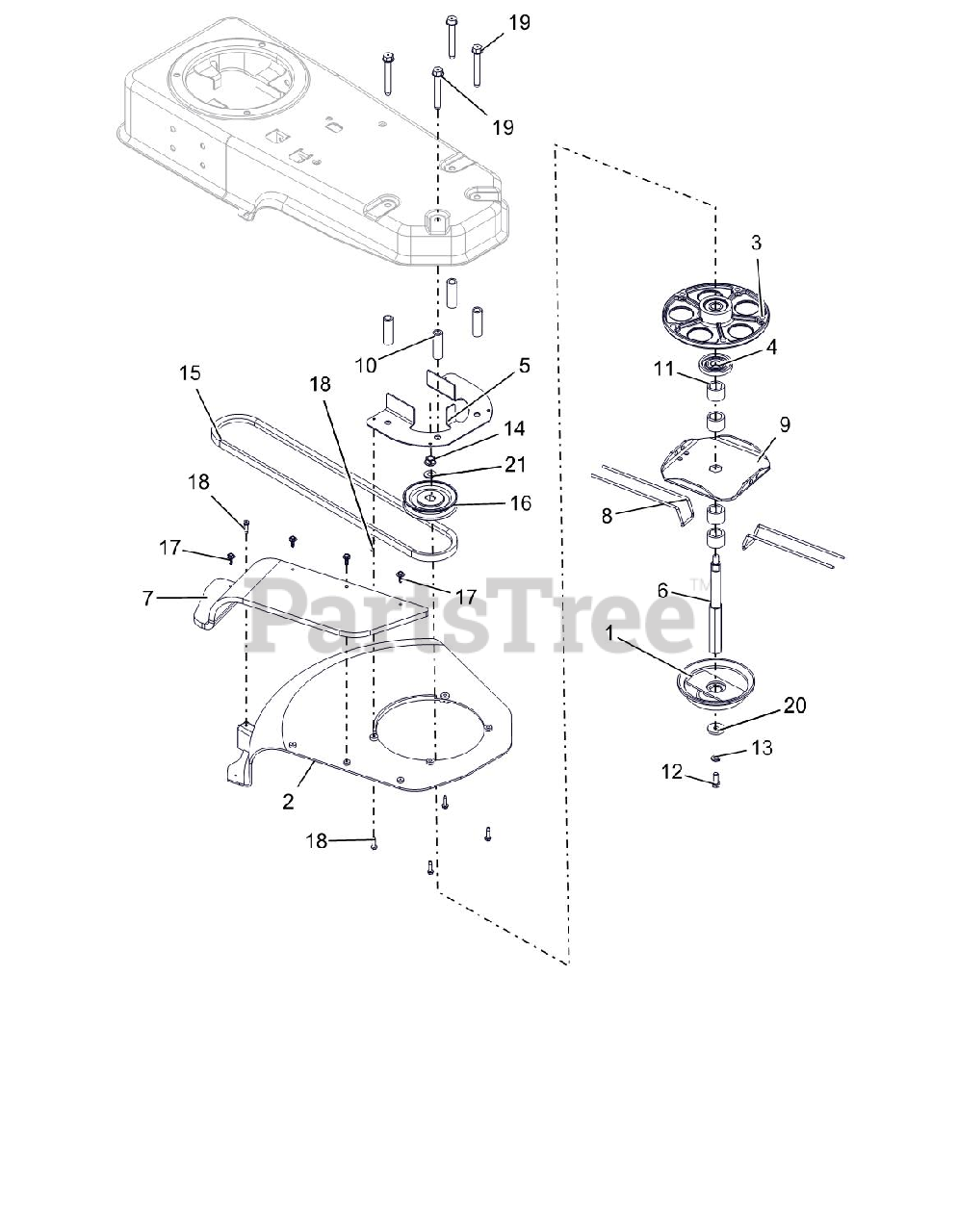

Trimmer head Parts Diagram

  • Title
1

Ariens 04627000

WELDMENT, HEIGHT GUIDE

$49.99

$

Usually ships in 4-12 days

0

2

Ariens 04640100

SHIELD - TRIMMER

$21.99

$

In Stock, only 1 left!

0

3

Ariens 04640600

HOUSING - JACKSHAFT
(Superseded to 04640601)

$180.99

$

Usually ships in 4-12 days

0

4

Ariens 04640700

SHIELD - DUST

$24.99

$

Usually ships in 4-12 days

0

5

Ariens 04640951

FINGER - BELT

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 04641300

SHAFT - CUTTER - HEX

$87.99

$

In Stock, only 1 left!

0

7

Ariens 04641500

GUARD - DEBRIS

$15.99

$

In Stock, only 1 left!

0

8

Ariens 04641800

LINE - CUTTER 18" LG PKG OF 6
(Superseded to 70761200)

$21.99

$

In Stock, only 1 left!

0

9

Ariens 04819251

CUTTER - DISK

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 05532300

BSHG-SPCR .406X.625X1.90

$3.99

$

In Stock, Qty 15

0

11

Ariens 05532500

SPACER - HEX

$3.99

$

In Stock, only 2 left!

0

12

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 06542200

NUT-LK-FLG .375-24 GR5 YWZC

$2.49

$

In Stock, only 2 left!

0

15

Ariens 07236900

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, only 1 left!

0

16

Ariens 07326300

PLY-V 3.50 OD X .87 WIDE (CUT)

$34.99

$

Usually ships in 4-12 days

0

17

Ariens 07411000

SCR-TAP #10-16 X .625 HWH

$3.49

$

Usually ships in 4-12 days

0

18

Ariens 07413000

SCR-TAP 10-24X.75 HWH TR YWZC
(Superseded to 07400118)

$3.99

$

In Stock, Qty 8

0

19

Ariens 07416100

@SCR-TAP.375-16X2.75 HWH TR YZ

$3.49

$

Usually ships in 4-12 days

0

20

Ariens 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

21

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
