946154 - Ariens 22" Walk-Behind String Trimmer, 149cc Kohler XT6 (SN: 000101 - 004999) Engine Parts Diagram

22" Walk-Behind String Trimmer, 149cc Kohler XT6

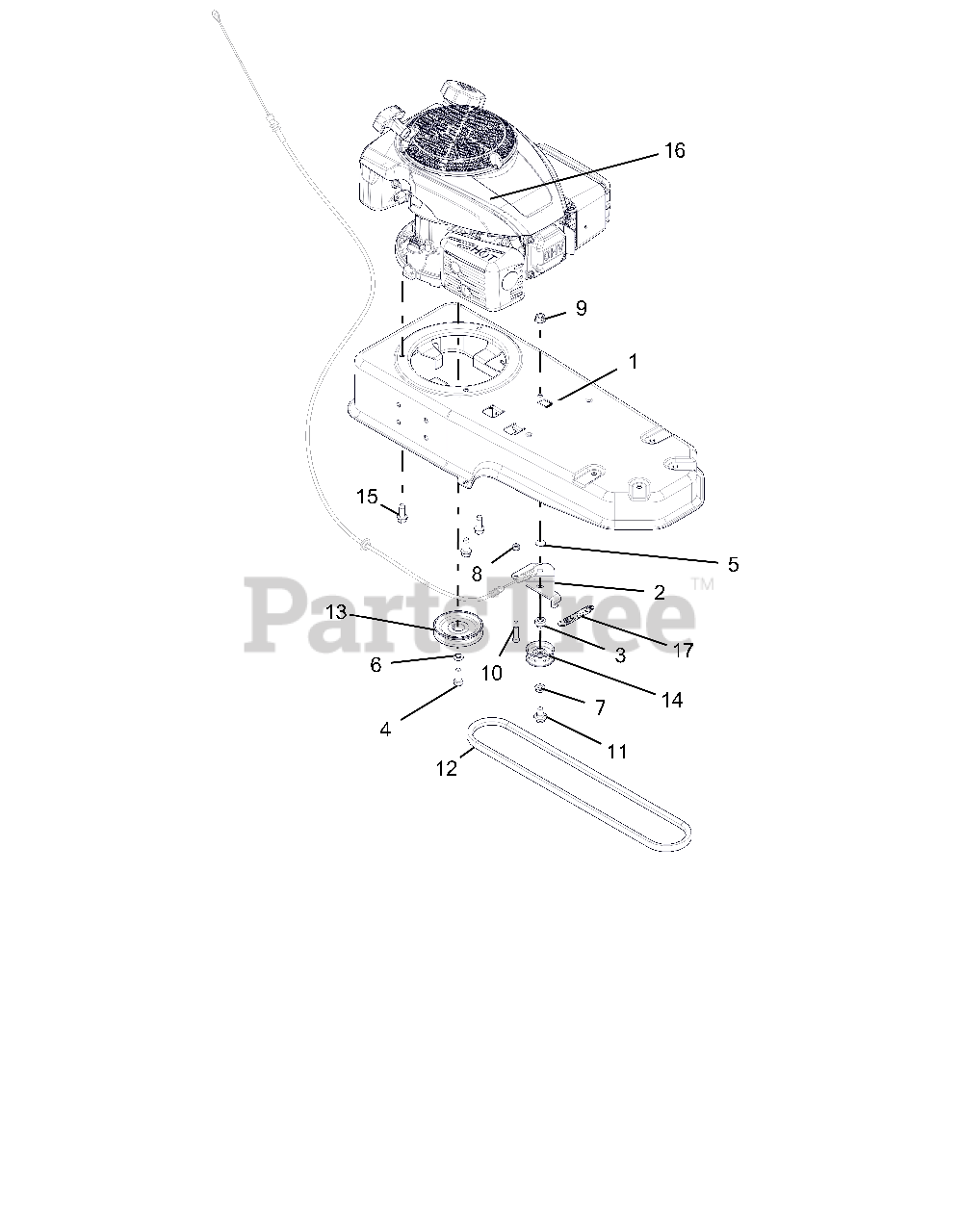

Engine Parts Diagram

  • Title

1

Ariens 54600700

KIT-FRAME W/SAFETY DECAL-TRIM

$

$

Not available

2

Ariens 04791251

BRKT-IDLER STRING TRIMMER

$

$

Not available

3

Ariens 05501114

SPCR, BRG .315X.500X.481X.281

$

$

Not available

4

Ariens 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$2.99

$

In Stock, only 1 left!

0

5

Ariens 06213900

BLT-RDHDSQSHK .31-18X1.75 YWZC
(Superseded to 06200335)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 07016900

SCR-SHLDR .25-20X1.00 -YWZC

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 07056700

BOLT-SHLDR .375-16X.150

$3.99

$

In Stock, only 2 left!

0

12

Ariens 07236900

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, only 1 left!

0

13

Ariens 07326400

SHEAVE-ENGINE 3.50 ODX.87 WIDE
(Superseded to 54600800)

$107.99

$

Usually ships in 4-12 days

0

14

Ariens 07338500

IDLER, FLAT - 1.875"

$22.99

$

In Stock, only 4 left!

0

15

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

16

Ariens 08201032

ENGINE, KOHLER XT6 149CC

$

$

Not available

17

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0
