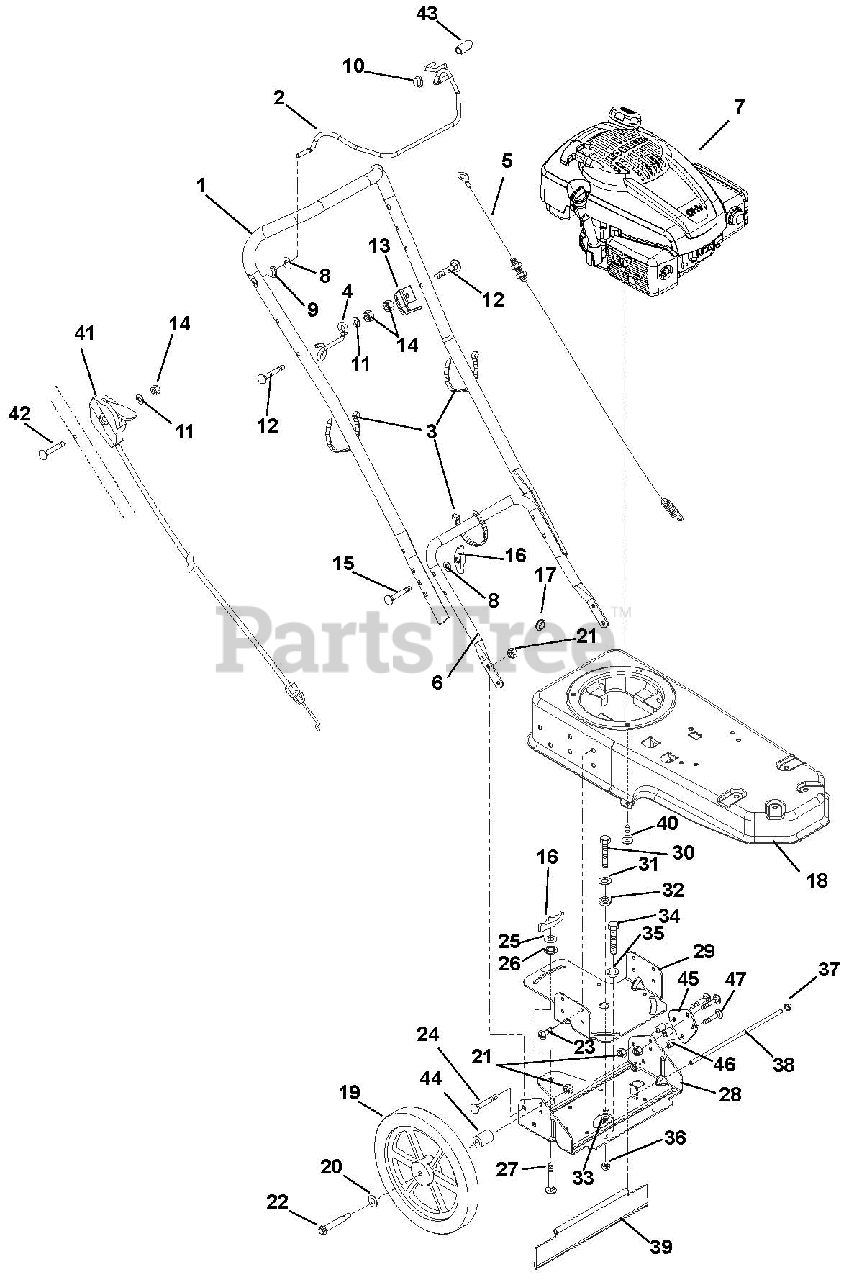

946153 (ST 622) - Gravely Wheeled Trimmer, Kohler Courage XT-8 (SN: 002654 & Above) Frame, Engine, Swivel And Wheels Parts Diagram

Wheeled Trimmer, Kohler Courage XT-8

Frame, Engine, Swivel And Wheels Parts Diagram

  • Title

1

Gravely 04640451

Handlebar, Upper

$127.99

$

Usually ships in 4-12 days

0

2

Gravely 03809051

Bail, Clutch Control

$77.99

$

Usually ships in 4-12 days

0

3

Gravely 07517300

Cable, Tie

$

$

Not available

4

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

5

Gravely 06944500

Cable, Control

$44.99

$

In Stock, only 3 left!

0

6

Gravely 04640551

Handlebar, Lower

$60.99

$

Usually ships in 4-12 days

0

7

Gravely 08200821

Engine, Courage XT-8, Kohler

$

$

Not available

8

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05514500

Bushing, Flange .325 x .444 x .440 x .560

$3.99

$

In Stock, Qty 20+

0

10

Gravely 02215300

Nut, Push .25

$1.99

$

In Stock, Qty 16

0

11

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 06220100

Bolt, Round Head Extra Long Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 4 left!

0

13

Gravely 04642351

Cable, Anchor

$

$

Not available

14

Gravely 06529700

Nut, Locking Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 06225800

Bolt, Round Head Square Neck Full Thread .31-18 x 2.00 Grade 5

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 07531700

Knob, Wing .312-18
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 07532200

Grommet .50 I.D.

$

$

Not available

18

Gravely 04640053

Frame, Trimmer

$

$

Not available

19

Gravely 07153302

Wheel 14" String Trimmer
(Superseded to 07153301)

$34.99

$

In Stock, only 1 left!

0

20

Gravely 06441100

Washer, Flat Steel .52 x .827 x .062
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

21

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 07056800

Bolt, Shoulder .38-16 x 2.50

$6.99

$

In Stock, Qty 20+

0

23

Gravely 07415400

Screw, Tapping .38-16 x .75
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

25

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 04640351

Bracket, Axle Swivel

$150.99

$

Usually ships in 4-12 days

0

29

Gravely 04640251

Base, Swivel

$125.99

$

Usually ships in 4-12 days

0

30

Gravely 05947100

Bolt, Hex .50-13 x 1.00 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

31

Gravely 06442000

Washer, Flat Steel .562 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

32

Gravely 05532400

Spacer

$3.99

$

In Stock, only 2 left!

0

33

Gravely 06536300

Nut, Locking Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

34

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05514800

Bushing, Flange .312 x .500 x .344 x .880

$2.49

$

In Stock, only 3 left!

0

36

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 07008200

Nut, Push .312

$2.49

$

In Stock, Qty 20+

0

38

Gravely 04641200

Rod

$22.99

$

In Stock, only 1 left!

0

39

Gravely 07531500

Guard, Rear Swivel

$15.99

$

In Stock, only 1 left!

0

40

Gravely 07414100

Screw, Tapping .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

41

Gravely 01286400

Cable, Throttle

$21.99

$

In Stock, only 3 left!

0

42

Gravely 06209300

Bolt, Round Head Extra Long Square Neck .25-20 x 1.75

$2.99

$

Usually ships in 4-12 days

0

43

Gravely 07517000

Cap, Vinyl .25 I.D.

$3.49

$

In Stock, Qty 10

0

44

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

45

Gravely 04690851

Bracket, Trimmer Wheel

$

$

Not available

46

Gravely 05533300

Bushing, Sleeve .469 x .750 x .430

$3.99

$

In Stock, Qty 11

0

47

Gravely 06225600

Bolt, Round Head Square Neck .38-16 x 1.50 G5YZ
(Superseded to 06200328)

$3.99

$

Usually ships in 4-12 days

0
