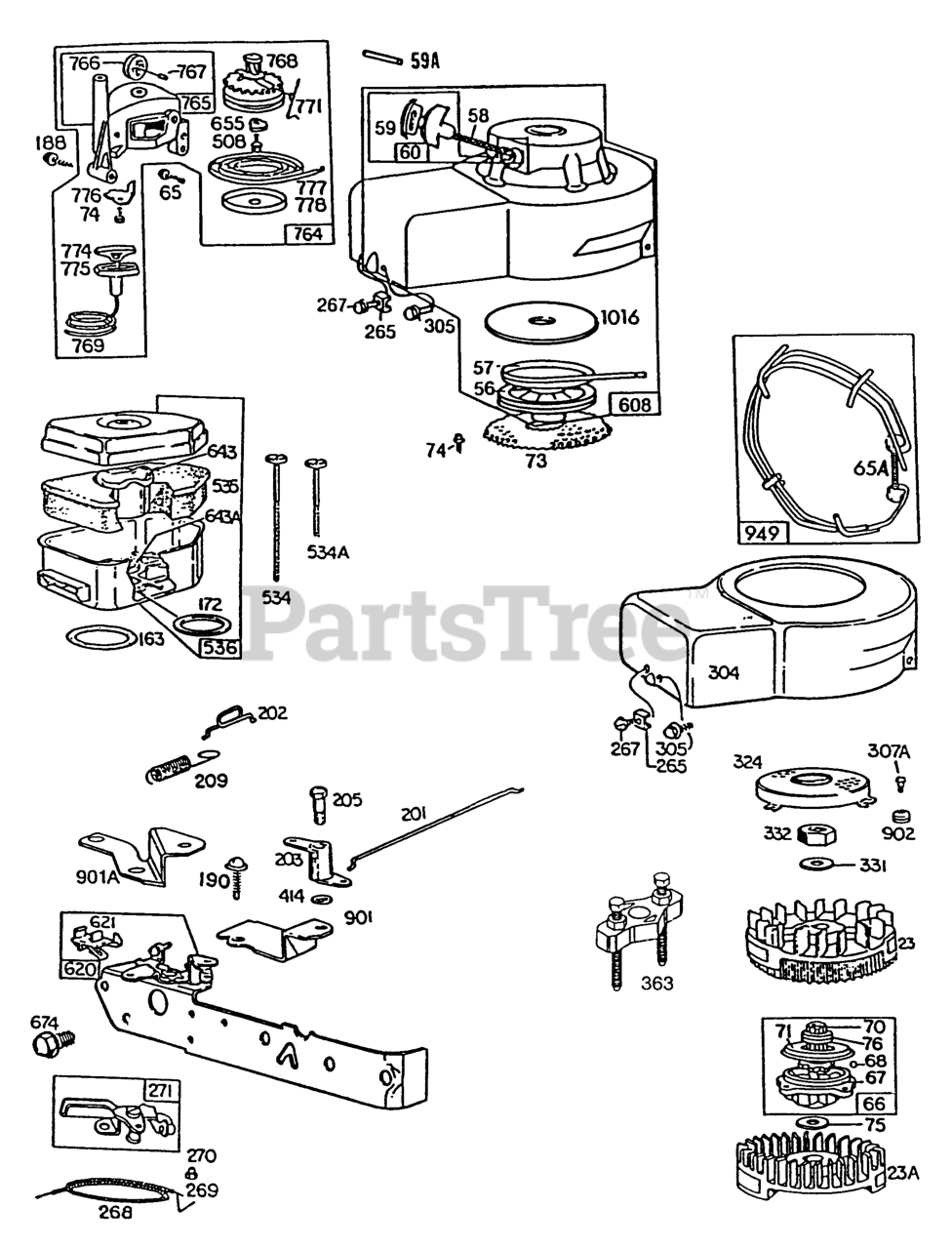

94502-5913-01 - Briggs & Stratton Vertical Engine Blower Hsg,Rewind,Vert Pull Parts Diagram

Vertical Engine

Blower Hsg,Rewind,Vert Pull Parts Diagram

  • Title

23A

Briggs & Stratton 395653

Flywheel-Magneto
(Superseded to 799682)

$

$

Not available

23

Briggs & Stratton 394032

Flywheel Assy (Vert. Pull Only)
(Superseded to 394848)

$46.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 280439

Pulley-Starter
(Superseded to 280439S)

$12.99

$

In Stock, Qty 12

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$

$

Not available

58

Briggs & Stratton 66734

Rope-Starter (48-5/8")

$6.49

$

In Stock, Qty 12

0

59A

Briggs & Stratton 230228

Pin-Starter Rope
(Superseded to 230228S)

$3.99

$

In Stock, only 4 left!

0

59

Briggs & Stratton 396892

Insert-Starter Rope

$5.49

$

In Stock, only 1 left!

0

60

Briggs & Stratton 393152

Insert-Starter Handle

$4.99

$

Usually ships in 2-12 days

0

65A

Briggs & Stratton 94124

Screw-Round Head

$3.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 93587

Screw, Sem Hex Head (1/4-20 X 1")
(Superseded to 691083)

$5.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 221653

Washer, Steel (Non-Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221661

Screw-Rewind Starter
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 223047

Washer, Flywheel
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

163

Briggs & Stratton 271139

Gasket, Air Cleaner (Above Spacer)
(Superseded to 271139S)

$3.99

$

In Stock, Qty 20+

0

172

Briggs & Stratton 271273

Gasket-Air Cleaner

$2.49

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94102

Screw-Hex. Hd. Sem
(Superseded to 592840)

$43.99

$

In Stock, only 1 left!

0

190

Briggs & Stratton 93440

Screw, Sem Pan Hd C
(Superseded to 692200)

$

$

Not available

201

Briggs & Stratton 261539

Link-Governor

Note: Used Before Code Date 82101904

$5.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 261918

Link-Mech Gov

Note: Used After Code Date 82101804

$7.99

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 261897

Link-Air Vane (Mechanical Governor)

$5.99

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280272

Crank-Bell (Mechanical Governor)

$8.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 231520

Screw, Shoulder Hex (#8-32 Thread)
(Superseded to 691776)

Note: Used After Code Date 86112300

$

$

Not available

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

Note: Used Before Code Date 86112400

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 261060

Spring-Governor

Note: (For 3100 to 3300 RPM Top Speed Set-No Load)

$4.49

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp-Casing
(Superseded to 692179)

$4.49

$

In Stock, only 4 left!

0

267

Briggs & Stratton 93469

Screw, Hex Head Thr
(Superseded to 691044)

$3.99

$

In Stock, only 4 left!

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If Longer Casing is Needed, Specify Length in Inches; If a Shorter Casing is Needed, Order No. 66986 and Cut to Required Length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If Longer Wire is Needed, Specify Length in Inches; if Shorter Wire is Needed, Order No. 26099 and Cut to Required Length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

307A

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

307A

Briggs & Stratton 93926

Screw-Shoulder

$6.99

$

Usually ships in 2-12 days

0

324

Briggs & Stratton 223006

Screen-Rotating

$10.99

$

Usually ships in 2-12 days

0

331

Briggs & Stratton 223047

Washer, Flywheel
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

332

Briggs & Stratton 92284

Nut, Jam (Flywheel)
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

Note: Used Before Code Date 86112400

$7.49

$

In Stock, only 1 left!

0

414

Briggs & Stratton 223932

Washer

Note: Used After Code Date 86112300

$4.49

$

Usually ships in 2-12 days

0

508

Briggs & Stratton 93158

Screw, Sem Hex Head (1/4-20 X 5/8")
(Superseded to 692198)

$5.99

$

In Stock, Qty 12

0

534A

Briggs & Stratton 93865

Screw, Air Cleaner
(Superseded to 691417)

$5.99

$

In Stock, only 3 left!

0

534

Briggs & Stratton 93928

Screw-Slotted (4-3/8" Long)

$4.49

$

Usually ships in 2-12 days

0

536

Briggs & Stratton 394214

Cleaner-Air (2-slanted Sides)

$13.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 398236

Starter Assy.-Rewind (9 O'clock)
(Superseded to 396835)

$55.99

$

Usually ships in 2-12 days

0

620

Briggs & Stratton 394056

Bracket-Control (Remote Control)

$25.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 297472

Switch, Stop Assy
(Superseded to 297472S)

Note: Used Before Code Date 85041800

$

$

Not available

621

Briggs & Stratton 396847

Switch, Stop Assy
(Superseded to 692310)

Note: Used After Code Date 85041700

$5.99

$

In Stock, Qty 20+

0

643A

Briggs & Stratton 280268

Support-Air Cleaner Element

$4.49

$

Usually ships in 2-12 days

0

643

Briggs & Stratton 280374

Retainer-Air Filter

$7.49

$

Usually ships in 2-12 days

0

655

Briggs & Stratton 222057

Anchor-Spring

$6.99

$

Usually ships in 2-12 days

0

764

Briggs & Stratton 396082

Str-Vertical Rewind (48-5/8" Rope)

$50.99

$

Usually ships in 2-12 days

0

765

Briggs & Stratton 395914

Housing-Vert Str (For Band Brake)

$55.99

$

Usually ships in 2-12 days

0

766

Briggs & Stratton 280022

Pulley-Rope Guide

$11.99

$

Usually ships in 2-12 days

0

767

Briggs & Stratton 231048

Pin-Rope Pulley (7/16" Long)

$3.49

$

Usually ships in 2-12 days

0

768

Briggs & Stratton 299948

Pulley-Vert Str

$22.99

$

Usually ships in 2-12 days

0

769

Briggs & Stratton 66734

Rope-Starter (48-5/8")

$6.49

$

In Stock, Qty 12

0

771

Briggs & Stratton 299961

Clip-Vertical Pull Str.

$6.49

$

Usually ships in 2-12 days

0

774

Briggs & Stratton 280121

Insert-Starter Handle
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

775

Briggs & Stratton 280036

Grip-Starter Rope
(Superseded to 393152)

$4.99

$

Usually ships in 2-12 days

0

776

Briggs & Stratton 222049

Guide-Rope

$3.99

$

Usually ships in 2-12 days

0

777

Briggs & Stratton 390066

Spring-Vertical Pull Starter

$20.99

$

In Stock, only 1 left!

0

778

Briggs & Stratton 280021

Cover-Vertical Starter

$

$

Not available

901A

Briggs & Stratton 223004

Bracket-Bell Crank

$

$

Not available

901

Briggs & Stratton 223083

Bracket-Bell Crank

Note: Used Before Code Date 86112400

$

$

Not available

901

Briggs & Stratton 490819

Bracket-Bell Crank

Note: Used After Code Date 86112300

$3.49

$

Usually ships in 2-12 days

0

902

Briggs & Stratton 280271

Grommet-Screen

$5.99

$

Usually ships in 2-12 days

0

949

Briggs & Stratton 396579

Guard-Finger (Includes Mtg. Parts)

$9.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, Qty 5

0
