945 SWE (31BH97SW710) - Cub Cadet 45" Snow Thrower (2012) Drive System Parts Diagram

45" Snow Thrower

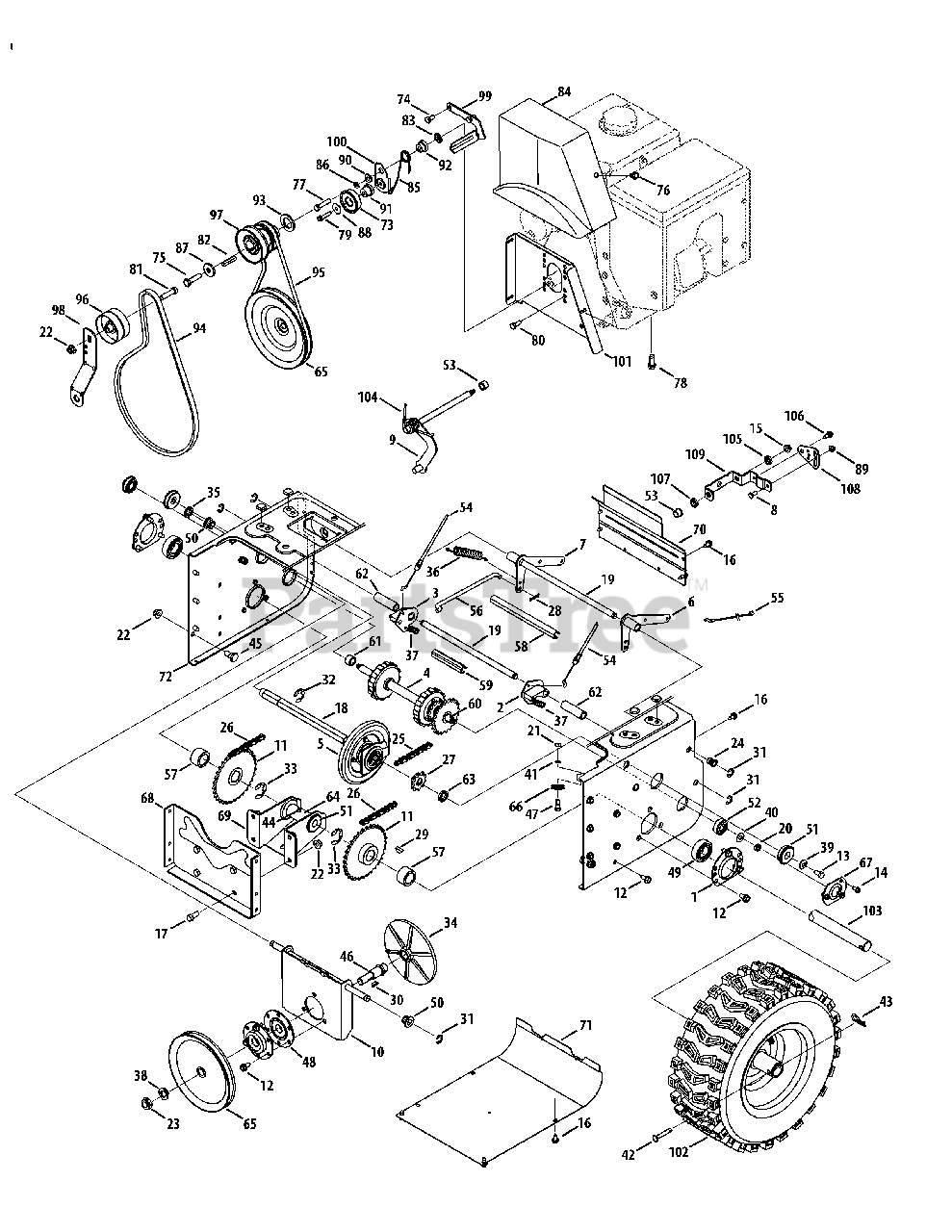

Drive System Parts Diagram

  • Title

1

Cub Cadet 05244B

Housing, Bearing

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0279P

Dogg, Steering Drive, LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0280P

Dogg, Steering Drive, RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-0282E

Shaft Assembly, Steering

$559.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 918-04178

Assembly, Friction Wheel
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 6

0

5

Cub Cadet 718-04034

Wheel, Friction, Bonded

$

$

Not available

5

Cub Cadet 710-0896

Screw, Hex Wash

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 684-0118B-0637

Bracket, Auger Actuator

$

$

Not available

7

Cub Cadet 684-0119B-0637

Bracket, Drive Actuator

$

$

Not available

8

Cub Cadet 710-0751

Hex Head Screw, 1/4-20

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 684-04229

Rod Assembly, Shift

$56.99

$

In Stock, only 1 left!

0

10

Cub Cadet 684-04212-0637

Brkt, Friction Drive Suprt.

$52.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 684-04235

Sprocket, 32T

$124.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-04484

TT Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0538

Screw, Hex Cap Lock,

$4.49

$

In Stock, Qty 7

0

14

Cub Cadet 710-0599

Screw, Hex, 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1652

Screw, Hex Wash.

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16

$7.49

$

In Stock, Qty 9

0

18

Cub Cadet 911-04279

Shaft, Hex Drive

$

$

Not available

19

Cub Cadet 711-04605

Shaft, Actuator

$

$

Not available

20

Cub Cadet 912-0116

Nut, Hex Insert Jam Lock
(Superseded to 712-0116)

$

$

Not available

21

Cub Cadet 912-0138

Nut, Hex, 1/4-28 GR5
(Superseded to 712-0138)

$

$

Not available

22

Cub Cadet 712-04065

Nut, Hx Flnge Insert Lk

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 912-0413

Nut, Hx Insert Jam Lk
(Superseded to 712-0413)

$

$

Not available

24

Cub Cadet 712-0717

Nut, Insert 3/8-16

$8.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 713-0284

Chain, Endless, #41 x 36L

$24.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 713-0286

Chain, #420 x 40L

$66.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 913-04015

Sprocket, #41 x 10T

$12.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 914-0104

Pin, Internal Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 914-0135

Key, Woodruff
(Superseded to 714-0135)

$

$

Not available

30

Cub Cadet 914-0388

Key, Hi-Pro, 3/16 x 5/8

$7.99

$

In Stock, Qty 20+

0

31

Cub Cadet 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 716-0136

Ring, Retaining

$8.99

$

In Stock, Qty 18

0

33

Cub Cadet 716-04048

Ring, Retainer

$

$

Not available

34

Cub Cadet 917-0302

Plate, Drive

$82.99

$

In Stock, only 1 left!

0

35

Cub Cadet 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0

36

Cub Cadet 932-0121

Spring, Extension

$14.99

$

In Stock, only 1 left!

0

37

Cub Cadet 932-0209

Spring, Extension

$7.99

$

In Stock, only 2 left!

0

38

Cub Cadet 936-0158

Washer, Lock, 5/8

$4.49

$

In Stock, Qty 11

0

39

Cub Cadet 736-0242

Wsh, Bell., .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 936-0864

Wash, .375 x .812 x .060

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 9

0

42

Cub Cadet 711-04615

Pin, Clevis

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 914-0149B

Pin, Internal Cotter
(Superseded to 714-0149B)

$

$

Not available

44

Cub Cadet 937-3000

Fitting, Lube, 3/16 Drive

$4.99

$

In Stock, Qty 20+

0

45

Cub Cadet 738-0143

Screw, Shldr., .498 x .34

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 738-0279

Spindle, Drive Plate

$57.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 738-0924A

Screw, Hex Shldr., 1/4-28

$6.99

$

In Stock, Qty 5

0

48

Cub Cadet 741-0163A

Ass’y, Bearing/Housing

$48.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 941-04025

Bearing, Self Aligning

$36.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 741-04108

Bearing, Hex Flange

$5.99

$

In Stock, Qty 11

0

51

Cub Cadet 941-0563

Bearing, Ball

$36.99

$

In Stock, Qty 7

0

52

Cub Cadet 741-0747

Bush, Flg, .5625 ID x 1.375 x .4375

$18.99

$

In Stock, only 2 left!

0

53

Cub Cadet 741-0748

Bush, Flg, .5 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 946-04337A

Cable, Steering

$34.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 946-0951A

Cable, Auger Idler

$45.99

$

In Stock, only 3 left!

0

56

Cub Cadet 747-0973

Rod, Drive Clutch

$48.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 750-04703

Spacer, 1.01 x 1.50 x .93

$12.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 750-04717

Spacer, .49 x 7.865

$8.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 750-04718

Spacer, .49 x 3.545

$5.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 750-05342

Spacer, .566 x .87 x .190

$3.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 750-05343

Spacer, .566 x .87 x 1.25

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 750-0903B

Spcr., .514 x .632 x 2.44

$10.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 950-0997

Spacer, .675 x 1.0 x .23

$6.99

$

In Stock, only 4 left!

0

64

Cub Cadet 750-1302B

Spcr, .6725 x 1.125 x 2.48

$47.99

$

In Stock, only 1 left!

0

65

Cub Cadet 756-0344

Pulley, Drive

$81.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

67

Cub Cadet 784-0404

Retainer Bracket

$8.49

$

In Stock, only 2 left!

0

68

Cub Cadet 784-0406A-0637

Bracket, Frame Support

$37.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 784-0407-0637

Bracket, Axle Support

$37.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 790-00257-4021

Cover, Upper Frame

$15.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 790-00259-4021

Cover, Lower Frame
(Superseded to 790-00259)

$27.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 790-00349-4021

Trans Frame
(Superseded to 790-00349A-4021)

$144.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 8

0

74

Cub Cadet 710-0627

Screw, Hex 5/16-24 x .75

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 710-0191

Screw, Hex 3/8-24 x 1.25

$4.99

$

In Stock, Qty 9

0

76

Cub Cadet 710-0607

Screw, Hx Wash Hd Tapp

$6.99

$

In Stock, Qty 9

0

77

Cub Cadet 710-0624

Screw, Hex Cap, 5/16-24 x 1.50

$5.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

79

Cub Cadet 710-0809

Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

80

Cub Cadet 738-04439

Screw, Shldr., .500 x .145

$3.99

$

In Stock, Qty 5

0

81

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

82

Cub Cadet 714-0118

Key, Square, 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

83

Cub Cadet 926-04012

Nut, Push
(Superseded to 726-04012)

$

$

Not available

84

Cub Cadet 931-2531

Cover, Belt

$51.99

$

In Stock, only 1 left!

0

85

Cub Cadet 732-04308A

Torsion Spring, .850 dia. x .333 lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

86

Cub Cadet 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

87

Cub Cadet 736-0247

Washer, Flat, .406 x 1.25

$9.49

$

In Stock, Qty 12

0

88

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 6

0

89

Cub Cadet 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

90

Cub Cadet 748-04112B

Shldr. Spacer, .3175 x .500 x .094

$4.49

$

In Stock, Qty 9

0

91

Cub Cadet 750-04571

Shldr. Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

92

Cub Cadet 750-04821

Shoulder Spacer, .340 x 1.00

$6.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 750-05316

Spacer, 1.02 x 1.63 x .1425

$5.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 954-04194A

V-Belt, 4L x 44.60

$22.99

$

In Stock, Qty 9

0

95

Cub Cadet 954-04202

V Belt, 3/8 x 36.68

$18.99

$

In Stock, Qty 15

0

96

Cub Cadet 756-04224

Pulley, Flat Idler, 2.75 OD

$26.99

$

In Stock, Qty 20+

0

97

Cub Cadet 756-0241B

Double Pulley, 3.25 x 2.75

$99.99

$

In Stock, only 4 left!

0

98

Cub Cadet 784-0385D

Bracket, Auger Idler

$29.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 790-00167A-0637

Belt Keeper Bracket

$36.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 790-00208C

Idler Drive Wheel Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, Qty 9

0

101

Cub Cadet 790-00254A-0637

Belt Cover Bracket

$27.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 634-0225A-0931

Wheel Ass’y. - LH

$270.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 634-0226A-0931

Wheel Ass’y. - RH

$233.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 734-2031

Tire

Note: (Not shown)

$166.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 741-0246A

Bearing

Note: (Not shown)

$14.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 934-0255

Valve

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

103

Cub Cadet 711-04606A

Axle, Wheel, 45"

$149.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 732-04385

Torsion Spring, .750 I.D. x .968 Lg.

$5.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 936-3015

Flat Washer, .469 x .875 x .105

$4.49

$

In Stock, Qty 19

0

106

Cub Cadet 738-04184A

Shoulder Screw, .368 x .113

$6.99

$

In Stock, Qty 5

0

107

Cub Cadet 750-04719

Spacer, .515 ID x .750 OD x .220

$4.49

$

Usually ships in 3-6 days

0

108

Cub Cadet 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0
