945 SWE (31AH9P7J710) - Cub Cadet 45" Snow Thrower (2005-2) General Parts Diagram

45" Snow Thrower

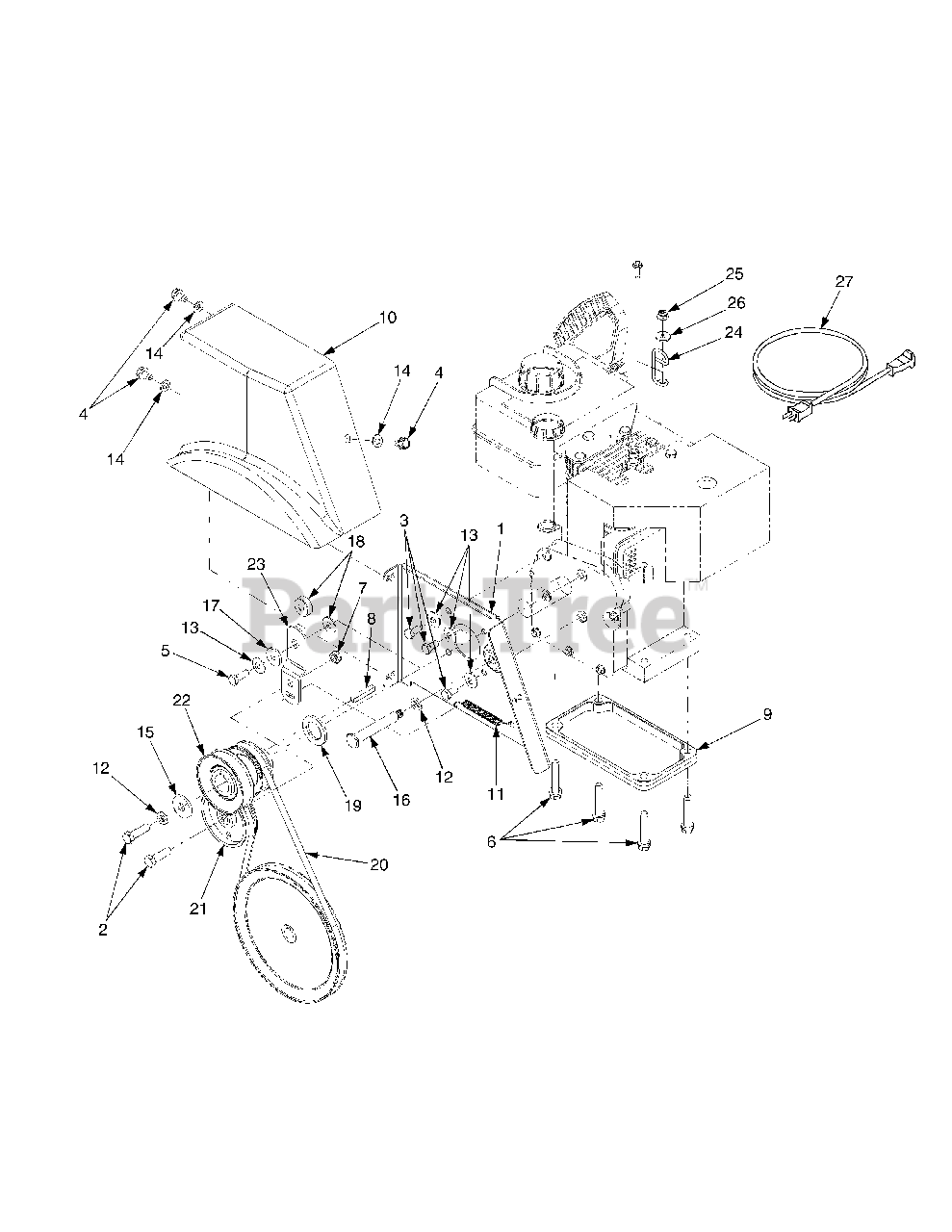

General Parts Diagram

  • Title

1

Cub Cadet 684-0123A

Bracket, Belt Cover
(Superseded to 684-0123A-0637)

Variations

Cub Cadet 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

2

Cub Cadet 710-0191

Screw, Hex Cap, 3/8-14 x 1.25 GR8

$4.99

$

In Stock, Qty 9

0

3

Cub Cadet 710-0237

Screw, Hx Cap, 5/16-24 x .625 GR5

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 710-0607

Screw, Hx Wash Hd Tapp, 5/16-18 x .5

$6.99

$

In Stock, Qty 11

0

5

Cub Cadet 710-0672

Screw, Hx Cap 28" S.T. Only, 5/16-24 x 1.25 GR5

$4.49

$

In Stock, Qty 18

0

5

Cub Cadet 710-1245B

Screw, Hx Cap 33" and 45" S.T. Only, 5/16-24 x .875 GR8

$8.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1008

Screw, Hx Sems Tapp 28" S.T.Only, 3/8-16 x 1.875

$5.49

$

In Stock, Qty 8

0

6

Cub Cadet 710-0502

Screw, Hx Sems Tapp 33" and 45" S.T. Only, 3/8-16 x 1.25
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

7

Cub Cadet 712-0116

Nut, Hx Insert Jam Lk, 3/8-24 GR5

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 714-0118

Key, Square, 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

9

Cub Cadet 717-0882A

Spacer, .56, 28" S.T. Only

$

$

Not available

10

Cub Cadet 731-2531

Cover, Belt
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

11

Cub Cadet 732-0303

Spring, Extension
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 12

0

12

Cub Cadet 736-0217

Washer, Lock

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0264

Washer, Flat, .33 x .63 x .0635 ...

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 736-0322

Washer, Flat, Hdn .45 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

16

Cub Cadet 738-0982

Screw, Shoulder 28" S.T. Only, .498 x 3.245:3/8-16

$14.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 738-0215A

Screw, Shoulder 33" and 45" S.T. Only .498 x 2.99:3/8-16

$9.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 748-0234

Spacer, Shoulder

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 748-0418

Spacer 28" S.T. Only, .331 x 1.01 x .36

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 736-0159

Washer, Flat, 33" and 45" S.T.,Only, .349 x .879 x .063

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 750-1148A

Spacer, 28" S.T. Only, 1.02 x 1.63 x .1425

$46.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 754-0131

V-Belt, 3/8 x 35.5
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 10

0

21

Cub Cadet 756-0240

Pulley, Flat Idler, 3.0 OD

$

$

Not available

22

Cub Cadet 756-0241B

Pulley, Double, 3.25 OD: 2.75 OD

$99.99

$

In Stock, Qty 5

0

23

Cub Cadet 784-5726

Bracket, Idler

$39.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 732-0705

Guide, Chute Cable

$11.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-04064

Nut, Hx Flnge Insert Lk 33" and 45" S.T. Only, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0173

Washer, Flat 33" and 45" S.T.Only — .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 629-0071

Extension Cord, 110V, 3-prong ...
(Superseded to 929-0071B)

$21.99

$

In Stock, only 1 left!

0
