945 SWE (31AH9J3W710) - Cub Cadet 45" Snow Thrower (2008) Drive System Parts Diagram

45" Snow Thrower

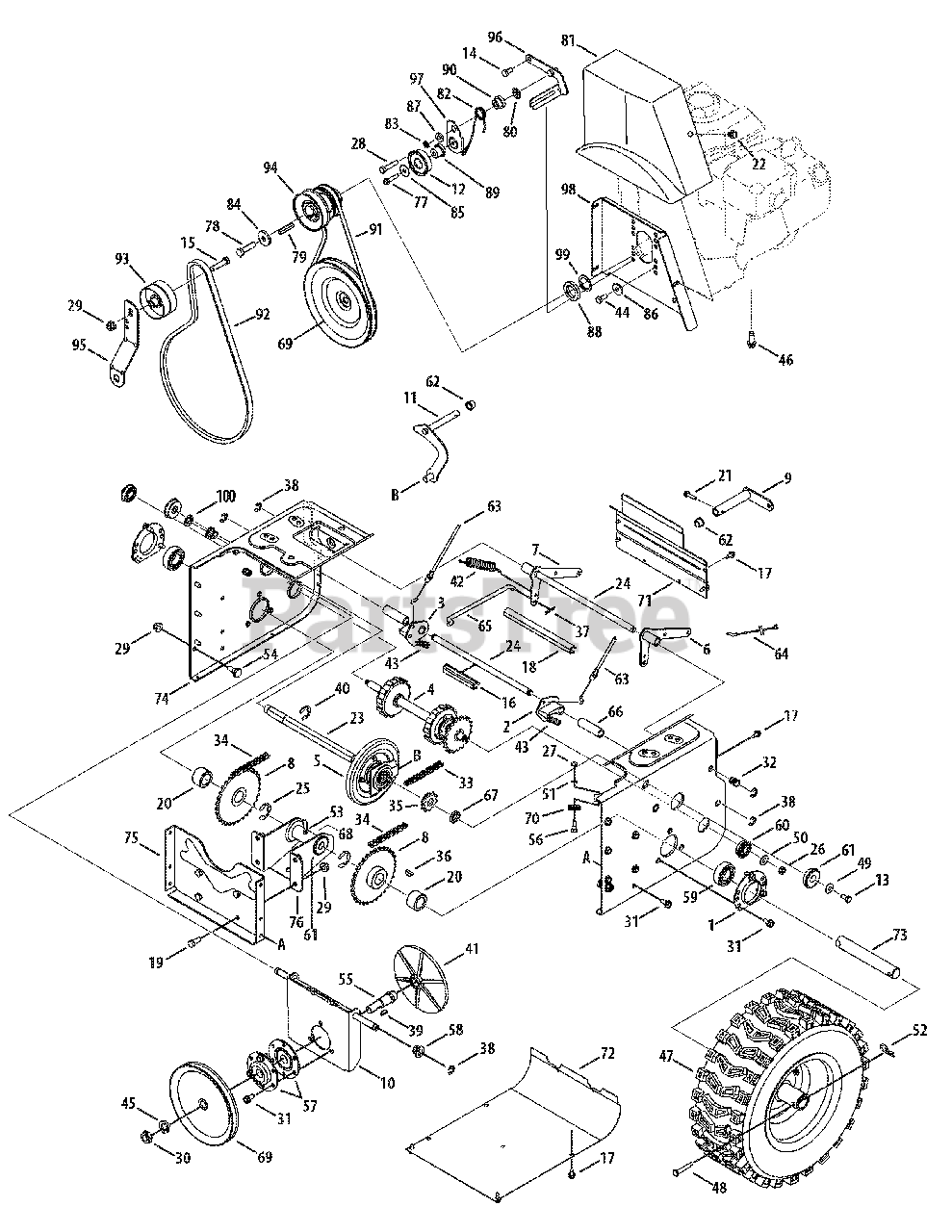

Drive System Parts Diagram

  • Title

1

Cub Cadet 05244B

Housing, Bearing

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-0279

Dogg, Steering Drive, LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0280

Dogg, Steering Drive, RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 618-0282E

Shaft Assembly, Steering
(Superseded to 918-0282E)

$559.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 618-04178

Assembly, Friction Wheel
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 6

0

5

Cub Cadet 718-04034

Wheel, Friction, Bonded

Note: Not shown

$

$

Not available

5

Cub Cadet 710-0896

Screw, Hex Wash

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 684-0118B

Bracket, Auger Actuator
(Superseded to 684-0118B-0637)

Variations

Cub Cadet 684-0118B-0637

BRACKET AUGER ACTUATOR - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 684-0119B

Bracket, Drive Actuator
(Superseded to 684-0119B-0637)

Variations

Cub Cadet 684-0119B-0637

BRACKET AUGER ACTUATOR - POWDER BLACK (0637)

$

$

Not available

$

$

8

Cub Cadet 684-04235

Sprocket, 32T

$124.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 684-0161

Arm, Shift
(Superseded to 684-0161-0637)

Variations

Cub Cadet 684-0161-0637

ARM ASM-SHIFT - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 684-04212

Friction Drive Support Bracket
(Superseded to 684-04212-0637)

Variations

Cub Cadet 684-04212-0637

BRACKET ASM-SUPPORT F - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 684-04103

Rod Assembly, Shift
(Superseded to 984-04103)

$74.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 684-04169

Idler Pulley Assembly

$34.99

$

In Stock, Qty 8

0

13

Cub Cadet 710-0538

Screw, Hex Cap Lock,

$4.49

$

In Stock, Qty 7

0

14

Cub Cadet 710-0237

Screw, Hex Cap, 5/16-24

$4.49

$

In Stock, only 1 left!

0

15

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 750-04718

Spacer, .51 ID x 3.66 Lg.

$5.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-1652

Screw, Hex Wash.

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 750-04717

Spacer, .51 ID x 7.895 Lg.

$8.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-3001

Screw, Hex Cap, 3/8-16

$7.49

$

In Stock, Qty 9

0

20

Cub Cadet 750-04703

Spacer, 1.0 ID x 1.50 OD

$12.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0788

Screw, Hex, 1/4-20 x 1.00

$7.49

$

In Stock, only 2 left!

0

22

Cub Cadet 710-0607

Screw, Hex Wash Head Tapp

$6.99

$

In Stock, Qty 9

0

23

Cub Cadet 711-04279

Shaft, Hex Drive
(Superseded to 911-04279)

$

$

Not available

24

Cub Cadet 711-04605

Shaft, Actuator

$

$

Not available

25

Cub Cadet 716-04048

Ring, Retainer

$

$

Not available

26

Cub Cadet 712-0116

Nut, Hex Insert Jam Lock

$4.99

$

In Stock, Qty 6

0

27

Cub Cadet 712-0138

Nut, Hex, 1/4-28 GR5

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0624

Screw, Hex Cap, 5/16-24 x 1.50

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-04065

Nut, Hx Flnge Insert Lk

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0413

Nut, Hx Insert Jam Lk

$6.49

$

In Stock, only 1 left!

0

31

Cub Cadet 710-04484

TT Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0717

Nut, Insert 3/8-16

$8.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 713-0284

Chain, Endless, #41 x 36L

$24.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 713-0286

Chain, #420 x 40L

$66.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 713-04015

Sprocket, #41 x 10T
(Superseded to 913-04015)

$12.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 714-0135

Key, Woodru

$4.99

$

In Stock, only 2 left!

0

37

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 716-0104

E-Ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 714-0388

Key, Hi-Pro, 3/16 x 5/8
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

40

Cub Cadet 716-0136

Ring, Retaining

$8.99

$

In Stock, Qty 18

0

41

Cub Cadet 717-0302

Plate, Drive
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

42

Cub Cadet 732-0121

Spring, Extension
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

43

Cub Cadet 732-0209

Spring, Extension
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

44

Cub Cadet 710-0627

Screw, Hex Cap, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0158

Washer, Lock, 5/8

$4.49

$

In Stock, Qty 11

0

46

Cub Cadet 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 634-0225A

Wheel Ass’y. - LH

Variations

Cub Cadet 634-0225A-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$252.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0225A-0921

WHEEL ASM-COMPLETE - Carlisle White (0921)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0225A-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$270.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0225A-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0225A-0971

WHEEL ASM-COMPLETE - Carlisle Yellow (0971)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0225A-0976

USE 634-0225A-0971 WHEEL ASM- - Kenda Yellow (0976)

$220.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0225A-4028

WHEEL COMP-16 X 6. - SEARS YELLOW (4028)

$

$

Not available

$254.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 634-0226A

Wheel Ass’y. - RH

Variations

Cub Cadet 634-0226A-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$308.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226A-0921

WHEEL ASM-COMPLETE - Carlisle White (0921)

$286.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226A-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226A-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$233.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226A-0971

WHEEL ASM-COMPLETE - Carlisle Yellow (0971)

$266.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226A-0976

USE 634-0226A-0971 WHEEL ASM- - Kenda Yellow (0976)

$266.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-0226A-4028

WHEEL COMP-16 X 6. - SEARS YELLOW (4028)

$

$

Not available

$250.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 734-2031

Tire

Note: Not shown

$166.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 734-1124A

Rim Assembly

Note: Not shown

Variations

Cub Cadet 734-1124A-0499

RIM ASM-WHEEL 8 X - CUB BEIGE (0499)

$132.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1124A-0662

RIM ASM-WHEEL 8 X - OYSTER GRAY (0662)

$132.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1124A-0674

RIM ASM-WHEEL 8 X - YARDMAN YELLOW (0674)

$115.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1124A-0717

RIM ASM-WHEEL 8 X - SILVER MIST (0717)

$115.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1124A-4028

RIM ASM-WHEEL 8 X - SEARS YELLOW (4028)

$115.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 734-0255

Valve
(Superseded to 934-0255)

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 741-0246A

Bearing

Note: Not shown

$14.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 711-04615

Pin, Clevis

$5.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 736-0242

Wsh, Bell., .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 736-0300

Wash, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

52

Cub Cadet 714-0149B

Pin, Internal Cotter

$4.49

$

In Stock, Qty 18

0

53

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 738-0143

Screw, Shldr., .498 x .34

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 738-0279

Spindle, Drive Plate

$57.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-0924A

Screw, Hex Shldr., 1/4-28

$6.99

$

In Stock, Qty 5

0

57

Cub Cadet 741-0163A

Ass’y, Bearing/Housing

$48.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 741-04108

Bearing, Hex Flange

$5.99

$

In Stock, Qty 11

0

59

Cub Cadet 741-04025

Bearing, Self Aligning
(Superseded to 941-04025)

$36.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 741-04076

Bearing, Ball

$14.99

$

In Stock, Qty 16

0

61

Cub Cadet 741-0563

Bearing, Ball
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

62

Cub Cadet 741-0748

Bush, Flg, .5 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 746-0949A

Cable, Steering

$52.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 746-0951

Cable, Auger Idler
(Superseded to 946-0951A)

$45.99

$

In Stock, only 3 left!

0

65

Cub Cadet 747-0973

Rod, Drive Clutch

$48.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 750-0903B

Spcr., .514 x .632 x 2.44

$10.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 750-0997

Spacer, .675 x 1.0 x .23
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

68

Cub Cadet 750-1302B

Spcr, .6725 x 1.125 x 2.48

$47.99

$

In Stock, only 1 left!

0

69

Cub Cadet 756-0344

Pulley, Drive

$81.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

71

Cub Cadet 790-00257

Cover, Upper Frame

Variations

Cub Cadet 790-00257-0691

Frame Cover, Upper Black - BLACK JACK (0691)

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-0606

COVER:UPPER FRAME: - MAJESTIC ORANGE (0606)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-0716

COVER:UPPER FRAME: - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-0721

USE 790-00257-4044 COVER:UPPE - SEARS RED (0721)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-4021

COVER:UPPER FRAME: - CUB YELLOW 2 (4021)

$15.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-4033

COVER:UPPER FRAME: - FLINT MICA (4033)

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-4044

COVER:UPPER FRAME: - CRAFTSMAN RED (4044)

$12.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00257-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 790-00259

Cover, Lower Frame

Variations

Cub Cadet 790-00259-0606

Frame Cover, Lower Orange - MAJESTIC ORANGE (0606)

$33.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0638

COVER:FRAME:LOWER - MTD/TROY-BILT RED (0638)

$31.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0650

COVER:FRAME:LOWER - RED METALLIC (0650)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0691

COVER:FRAME:LOWER - BLACK JACK (0691)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0716

COVER:FRAME:LOWER - CUB YELLOW-99 (0716)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-0721

USE 790-00259-4044 COVER:FRAM - SEARS RED (0721)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-4021

COVER:FRAME:LOWER - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-4033

COVER:FRAME:LOWER - FLINT MICA (4033)

$27.99

$

Usually ships in 3-6 days

0

Cub Cadet 790-00259-4044

COVER:FRAME:LOWER - CRAFTSMAN RED (4044)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 711-04606

Axle, Wheel, 45"
(Superseded to 711-04606A)

$149.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 790-00255A

Frame, Transmission

Variations

Cub Cadet 790-00255A-0606

FRAME ASM-TRANS 90 - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 790-00255A-0638

FRAME ASM-TRANS 90 - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 790-00255A-0662

FRAME ASM-TRANS 90 - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 790-00255A-0665

FRAME ASM-TRANS 90 - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 790-00255A-0691

FRAME ASM-TRANS 90 - BLACK JACK (0691)

$

$

Not available

Cub Cadet 790-00255A-0721

USE 790-00255A-4044 FRAME ASM - SEARS RED (0721)

$

$

Not available

Cub Cadet 790-00255A-4021

FRAME ASM-TRANS 90 - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 790-00255A-4044

FRAME ASM-TRANS 90 - CRAFTSMAN RED (4044)

$

$

Not available

$

$

75

Cub Cadet 784-0406A

Bracket, Frame Support
(Superseded to 784-0406A-0637)

Variations

Cub Cadet 784-0406A-0637

BRACKET-SUPPORT FRAME - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 784-0407

Bracket, Axle Support
(Superseded to 784-0407-0637)

Variations

Cub Cadet 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 710-0809

Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

78

Cub Cadet 710-1044

Hex Hd. Screw, 3/8-24 x 1.50 GR8

$3.99

$

In Stock, Qty 8

0

79

Cub Cadet 714-0118

Key, Square, 1/4 x 1.5

$6.99

$

In Stock, only 4 left!

0

80

Cub Cadet 726-04012

Nut, Push

$7.49

$

In Stock, Qty 8

0

81

Cub Cadet 731-2531

Cover, Belt
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

82

Cub Cadet 732-04308A

Torsion Spring, .850 dia. x .333 lg.
(Superseded to 732-04308C)

$5.49

$

In Stock, Qty 20+

0

83

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

84

Cub Cadet 736-0247

Washer, Flat, .406 x 1.25

$9.49

$

In Stock, Qty 12

0

85

Cub Cadet 736-3092

Washer, Flat, .265 x 1.0 x .030

$3.99

$

In Stock, Qty 6

0

86

Cub Cadet 748-0234

Spacer, Shoulder

$4.49

$

In Stock, Qty 20+

0

87

Cub Cadet 748-04112B

Shoulder Spacer, .3175 x .500 x .0975

$4.49

$

In Stock, Qty 9

0

88

Cub Cadet 750-04020

Spacer, 1.004 x 1.375 x .25
(Superseded to 950-04020)

$12.99

$

In Stock, only 1 left!

0

89

Cub Cadet 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.99

$

In Stock, only 1 left!

0

90

Cub Cadet 750-04821

Shoulder Spacer, .340 x 1.00

$6.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 754-0367

V-Belt, 3/8 x 34.4
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

92

Cub Cadet 754-04131

V Belt,1/2 x 42
(Superseded to 954-04131)

$31.99

$

In Stock, only 1 left!

0

93

Cub Cadet 756-0178

Pulley, Flat Idler, 2.75 OD

$20.99

$

In Stock, only 4 left!

0

94

Cub Cadet 756-0241B

Double Pulley, 3.25 x 2.75

$99.99

$

In Stock, only 4 left!

0

95

Cub Cadet 784-0385B

Bracket, Auger Idler
(Superseded to 784-0385D)

$29.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 790-00167A

Belt Keeper Bracket
(Superseded to 790-00167A-0637)

Variations

Cub Cadet 790-00167A-0637

Belt Keeper Bracket - POWDER BLACK

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 790-00208C

Idler Drive Wheel Bracket
(Superseded to 790-00208D)

$8.99

$

In Stock, Qty 9

0

98

Cub Cadet 790-00254A

Belt Cover Bracket
(Superseded to 790-00254A-0637)

Variations

Cub Cadet 790-00254A-0637

BRACKET-COVER BELT - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

99

Cub Cadet GW-1166-1

Washer, Flat, 1.015 x 1.375 x .062
(Superseded to 736-04309)

$4.49

$

In Stock, Qty 20+

0

100

Cub Cadet 726-0221

Speed Nut, .500

$6.49

$

In Stock, only 2 left!

0
