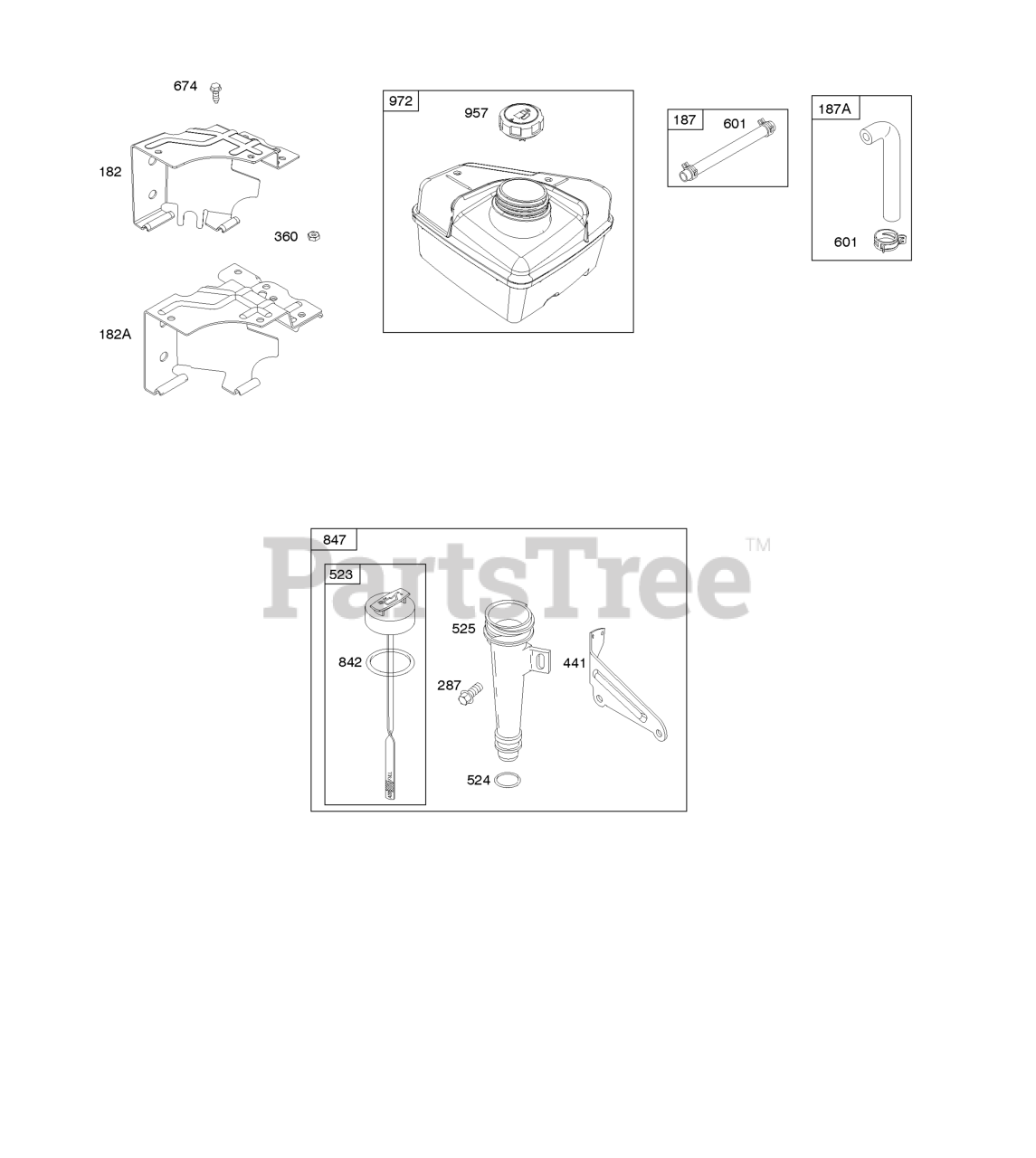

94332-0119-B1 - Briggs & Stratton Horizontal Engine Fuel Supply, Lubrication Parts Diagram

Horizontal Engine

Fuel Supply, Lubrication Parts Diagram

  • Title

182A

Briggs & Stratton 792663

Bracket-Fuel Tank

$52.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 792662

Line-Fuel

Note: (Formed)(Cut To Required Length)

$6.49

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 695733

Screw

Note: (Dipstick Tube) (7/16" Long)

$3.99

$

Usually ships in 2-12 days

0

360

Briggs & Stratton 691105

Nut

Note: (Fuel Tank Bracket)

$7.99

$

In Stock, only 1 left!

0

441

Briggs & Stratton 690484

Bracket-Oil Fill

$8.99

$

In Stock, only 1 left!

0

523

Briggs & Stratton 499621

Dipstick

$17.99

$

In Stock, only 4 left!

0

524

Briggs & Stratton 691876

Seal-O Ring

$5.49

$

In Stock, Qty 11

0

525

Briggs & Stratton 694426

Tube-Dipstick

$10.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

674

Briggs & Stratton 690708

Screw

Note: (Fuel Tank Bracket) (Bracket to Tank)

$2.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 690848

Dipstick/Tube Assembly

$25.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 493988S

Cap-Fuel Tank
(Superseded to 799719)

Note: (Plastic)

$40.99

$

In Stock, only 3 left!

0

972

Briggs & Stratton 792664

Tank-Fuel

Note: (Plastic)

$70.99

$

Usually ships in 2-12 days

0
