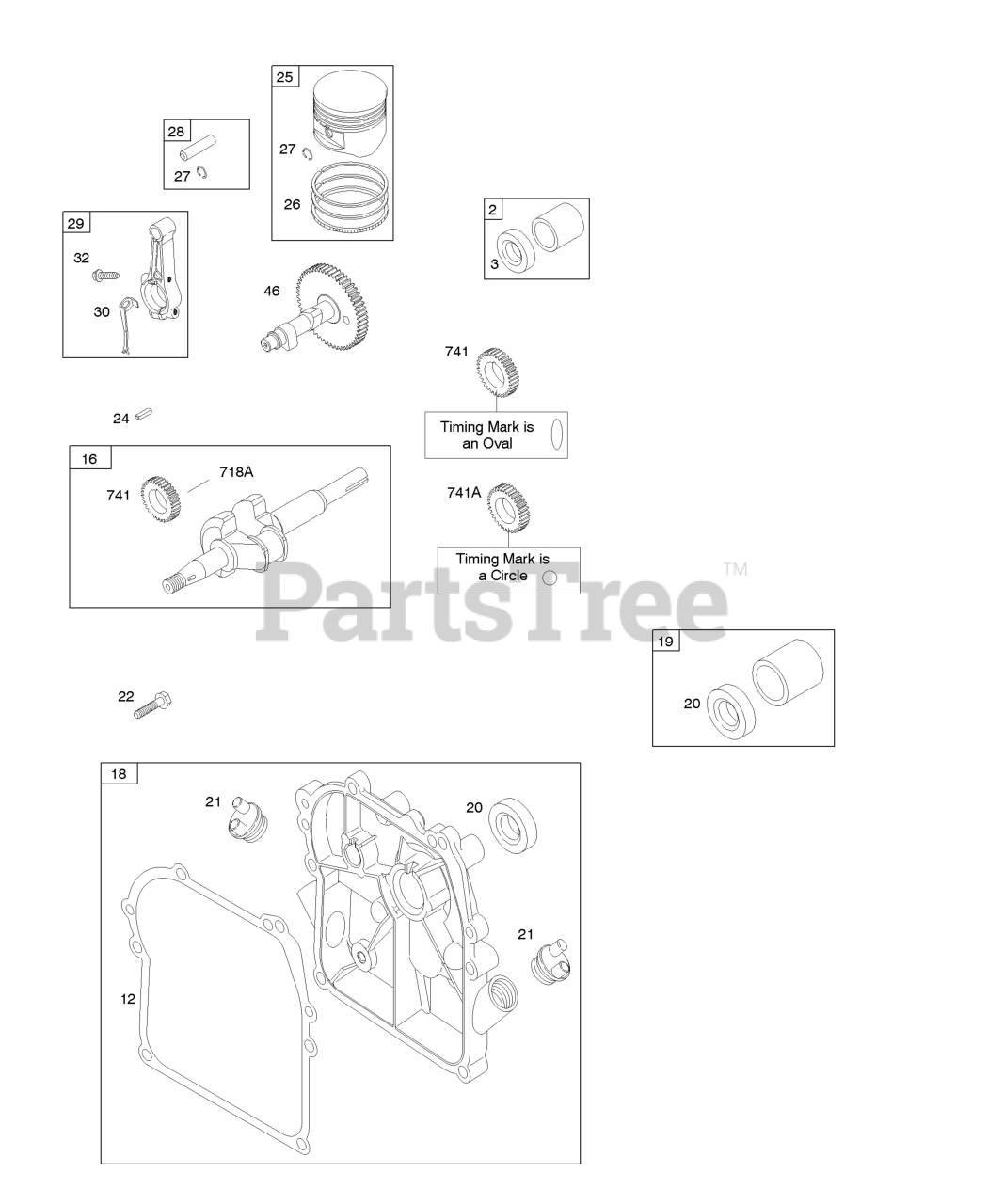

94212-0319-E1 - Briggs & Stratton Horizontal Engine Camshaft, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod Parts Diagram

Horizontal Engine

Camshaft, Crankcase Cover/Sump, Crankshaft, Piston/Rings/Connecting Rod Parts Diagram

  • Title

2

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (Magneto Side)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 17

0

12

Briggs & Stratton 270895

Gasket-Crankcase

Note: (.005" Thick)

$9.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 270896

Gasket-Crankcase

Note: (.009" Thick)

$5.99

$

In Stock, Qty 8

0

12

Briggs & Stratton 692218

Gasket-Crankcase

Note: (.015" Thick)(Standard)

$

$

Not available

16

Briggs & Stratton 793154

Crankshaft

$148.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 496679

Cover-Crankcase
(Superseded to 699096)

$172.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 399269

Kit-Bushing/Seal
(Superseded to 796961)

Note: (PTO Side)

$21.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 692020

Seal-Oil

Note: (PTO Side)

$10.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Oil Fill

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 693732

Screw

Note: (Crankcase Cover/Sump) (Used in Positions 1 and 6) (7/8" Long)

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698S

KEY, Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 790908

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used Before Code Date 07073000

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 792532

Piston Assembly
(Superseded to 795689)

Note: (.020 Oversize) Used Before Code Date 07073000

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 795131

Piston Assembly
(Superseded to 795691)

Note: (Standard) Used After Code Date 07072900 Used Before Code Date 08021300

$111.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 795689

Piston Assembly

Note: (.020 Oversize) Used After Code Date 07072900

$80.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 795691

Piston Assembly

Note: (Standard) Used After Code Date 08021200

$111.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 695171

Ring Set

Note: (.010" Oversize) Used Before Code Date 05051900

$44.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 695172

Ring Set

Note: (.020 Oversize) Used Before Code Date 05051900

$41.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 790909

Ring Set
(Superseded to 795690)

Note: (Standard) Used After Code Date 05051800 Used Before Code Date 07073000

$52.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 795132

Ring Set
(Superseded to 795690)

Note: (Standard) Used After Code Date 07072900 Used Before Code Date 08021300

$52.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 795134

Ring Set
(Superseded to 795688)

Note: (.020 Oversize) Used After Code Date 05051800 Used Before Code Date 08021300

$98.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 795688

Ring Set

Note: (.020 Oversize) Used After Code Date 08021200

$98.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 795690

Ring Set

Note: (Standard) Used After Code Date 08021200

$52.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 695169

Ring Set

Note: (Standard) Used Before Code Date 05051900

$52.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691588

Lock-Piston Pin

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston

Note: (.005" Oversize) Used Before Code Date 05051900

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

Note: (Standard) Used Before Code Date 05051900

$8.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 699659

Pin-Piston

Note: (Standard) Used After Code Date 05051800

$8.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 699655

Rod-Connecting

Note: (Standard)

$39.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 691719

Dipper-Connecting Rod

$7.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 691664

Screw

Note: (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

46

Briggs & Stratton 691998

Camshaft

$61.99

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 499047

Pin-Locating

Note: (Crankshaft)

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 791124

Gear-Timing

Note: [Timing Mark is an Oval {()}] Used After Code Date 05013000

$18.99

$

In Stock, only 2 left!

0

741A

Briggs & Stratton 691805

Gear-Timing

Note: {Timing Mark is a Circle (O)} Used Before Code Date 05053100

$15.99

$

Usually ships in 2-12 days
