942001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler (SN: 000101 & Above) HOPPER Parts Diagram

Pro-Vac Vacuum, 18hp Kohler

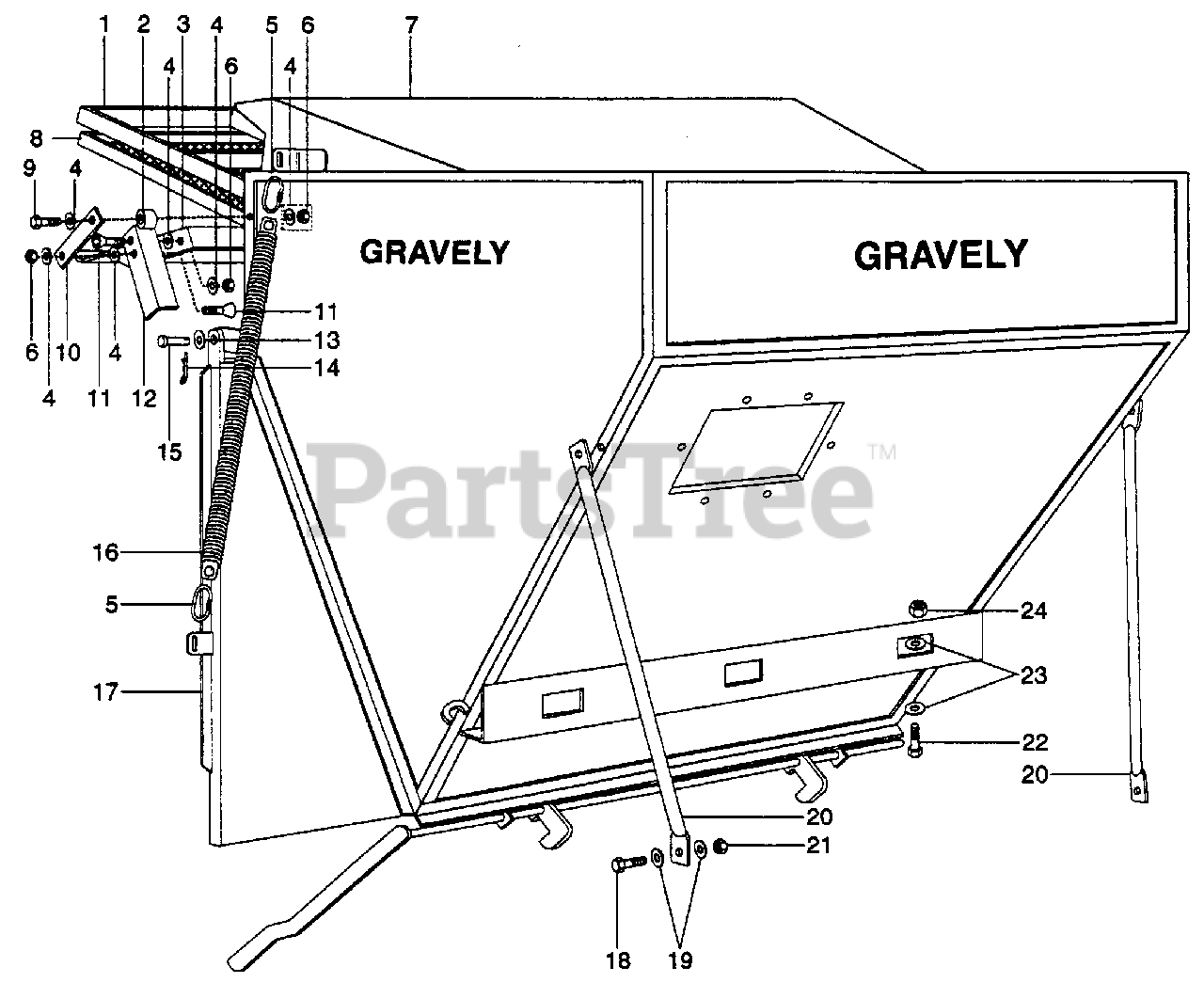

HOPPER Parts Diagram

  • Title
1

Gravely 04204551

GRID WELDMENT
(Superseded to 02084151)

$

$

Not available

2

Gravely 04204600

SCREEN DOOR LINK SPACER
(Superseded to 02084551)

$

$

Not available

3

Gravely 04205553

SCREEN DOOR WELDMENT

$

$

Not available

3

Gravely 04205557

SCREEN DOOR WELDMENT

$

$

Not available

4

Gravely 06405700

WSHR-FL-STL .323 X .625 X .062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

5

Gravely 04204200

1/4 QUICK LINK
(Superseded to 02084000)

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 04203053

HOPPER WELDMENT

$

$

Not available

7

Gravely 04203057

HOPPER WELDMENT

$

$

Not available

8

Gravely 04204400

SINGLE SCREEN
(Superseded to 02952900)

$

$

Not available

9

Gravely 05914000

BLT-HEX .31-18 X 1.50 PL GR 5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 12

0

10

Gravely 04204951

FILTER DOOR LINKAGE
(Superseded to 02084851)

$

$

Not available

11

Gravely 05928700

SCR-SKH .31-18 X 1.00 FLTCNTRS
(Superseded to 02221600)

$3.99

$

In Stock, only 1 left!

0

12

Gravely 04204751

FILTER DOOR LATCH RH
(Superseded to 02084651)

$

$

Not available

12

Gravely 04204851

FILTER DOOR LATCH LH
(Superseded to 02084751)

$

$

Not available

13

Gravely 06404300

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06702400

PIN-COTR .12 X .75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

15

Gravely 01330300

CLEVIS PIN

$

$

Not available

16

Gravely 04204100

SPRING
(Superseded to 08300351)

$

$

Not available

17

Gravely 04203153

DOOR WELDMENT

$

$

Not available

17

Gravely 04203157

DOOR WELDMENT

$

$

Not available

18

Gravely 05913300

BLT-HEX .38-16 X 1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06400200

WSHR-FL-STL .38 X .875 X .083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 04203853

HOPPER BRACE
(Superseded to 02083951)

$

$

Not available

20

Gravely 04203857

HOPPER BRACE

$

$

Not available

21

Gravely 06512200

NUT-LK-TOP .375-16 GR C PL

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 05914600

BLT-HEX .50-13 X 1.25 PL GR 5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

23

Gravely 06404700

WSHR-FL-STL .511 X 1.45 X .125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06512700

NUT-LK-CROWN .50-13 GR C
(Superseded to 06528200)

$3.99

$

In Stock, only 3 left!

0
