942001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler (SN: 000101 & Above) DRIVE Parts Diagram

Pro-Vac Vacuum, 18hp Kohler

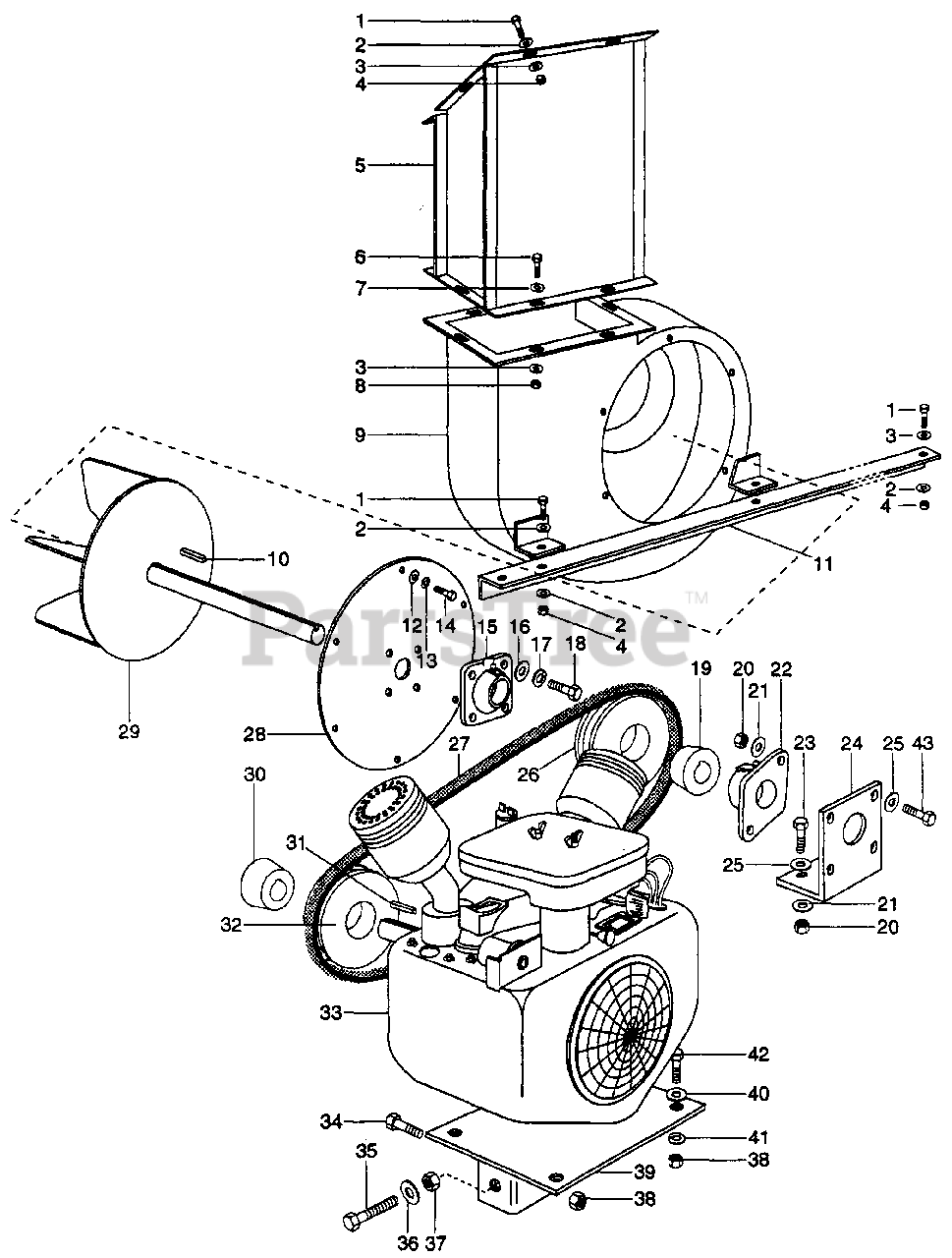

DRIVE Parts Diagram

  • Title

1

Gravely 05914500

BLT-HEX .38-16 X 1.00
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06421500

WSHR-FL-STL .38 X 1.50 X .125 PL
(Superseded to 06443400)

$3.49

$

In Stock, Qty 9

0

3

Gravely 06400200

WSHR-FL-STL .38 X .875 X .083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06512200

NUT-LK TOP .375-16 GR C PL

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 04203653

DISCHARGE CHUTE WELDMENT

$

$

Not available

5

Gravely 04203657

DISCHARGE CHUTE WELDMENT

$

$

Not available

6

Gravely 05918100

BLT-HEX .31-18 X 1.00 PL GR 5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06412300

WSHR-FL-STL .344 X .688 X .065
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 04200653

BLOWER WELDMENT
(Superseded to 02074553)

$

$

Not available

9

Gravely 04200657

BLOWER WELDMENT

$

$

Not available

10

Gravely 06605600

KEY STR .38 X 2.0 X .38

$

$

Not available

11

Gravely 04202653

BLOWER SUPPORT BEAM

$

$

Not available

11

Gravely 04202657

BLOWER SUPPORT BEAM

$

$

Not available

12

Gravely 06400700

WSHR-FL-STL .312 ID HEAVY PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06300300

WSHR-LOCK .312 ID HEAVY PL
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05913500

BLT-HEX .31-18 X .75 PL GR 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05418600

BRG

$96.99

$

Usually ships in 4-12 days

0

16

Gravely 06412100

WSHR-FL-STL .469 X .937 X .065 PL

$

$

Not available

17

Gravely 06300500

WSHR-LOCK .438 X .133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 05905500

BLT-HEX .44-14 X 1.38 GR 5

$

$

Not available

19

Gravely 04201900

DRIVEN SHEAVE BUSHING
(Superseded to 05500439)

$

$

Not available

20

Gravely 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

21

Gravely 06400300

WSHR-FL-STL .531 X 1.062 X .095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 05418500

BRG 2 BLT
(Superseded to 05400234)

$96.99

$

Usually ships in 4-12 days

0

23

Gravely 05920000

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 04202451

BEARING HOLDER
(Superseded to 05400251)

$

$

Not available

25

Gravely 06412000

WSHR-FL-STL .563 X 1.37 X .109 PL
(Superseded to 06442000)

$2.49

$

In Stock, only 1 left!

0

26

Gravely 07315300

PLY - V 2G 3V 6.5 TAPER LOCK
(Superseded to 07300310)

$162.99

$

In Stock, only 1 left!

0

27

Gravely 07218300

V-BELT MATCHED SET OF TWO
(Superseded to 07200329)

$75.99

$

Usually ships in 4-12 days

0

28

Gravely 04200553

FAN COVER WELDMENT
(Superseded to 02074353)

$

$

Not available

28

Gravely 04200557

FAN COVER WELDMENT

$

$

Not available

29

Gravely 04200700

FAN
(Superseded to 02075600)

$782.99

$

Usually ships in 4-12 days

0

30

Gravely 04201800

DRIVE SHEAVE BUSHING
(Superseded to 05500438)

$

$

Not available

31

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

32

Gravely 07315400

PLY - V 2G 3V 5.5 TAPER LOCK
(Superseded to 07300311)

$

$

Not available

33

Gravely 08230300

ENGINE-KOHLER 18 HP # 24653

$

$

Not available

34

Gravely 05913300

BLT-HEX .38-16 X 1.25 PL GR 2
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05918300

BLT-HEX .50-13 X 5.00 PL GR 2
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 06404700

WSHR-FL-STL .511 X 1.44 X 1.25 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 20+

0

37

Gravely 06502100

NUT .50-13 PL
(Superseded to 06537300)

$3.99

$

Usually ships in 4-12 days

0

38

Gravely 06503900

NUT-LK .375-16 X 1.25 PL GR 2
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 04205951

ENGINE SUBPLATE WELDMENT

$

$

Not available

40

Gravely 06404300

WSHR-FL-STL .406 X .812 X .065 PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

41

Gravely 06512900

WSHR-FL-STL .406 X 1.000 X .105
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

42

Gravely 05903800

BLT-HEX .38-16 X 1.25 GR 5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 05928600

BLT-HEX .50-13 X 1.75 PL GR 5
(Superseded to 05901939)

$3.99

$

In Stock, only 2 left!

0
