942001 (Pro-Vac 1050) - Gravely Pro-Vac Vacuum, 18hp Kohler (SN: 000101 & Above) BATTERY AND FUEL Parts Diagram

Pro-Vac Vacuum, 18hp Kohler

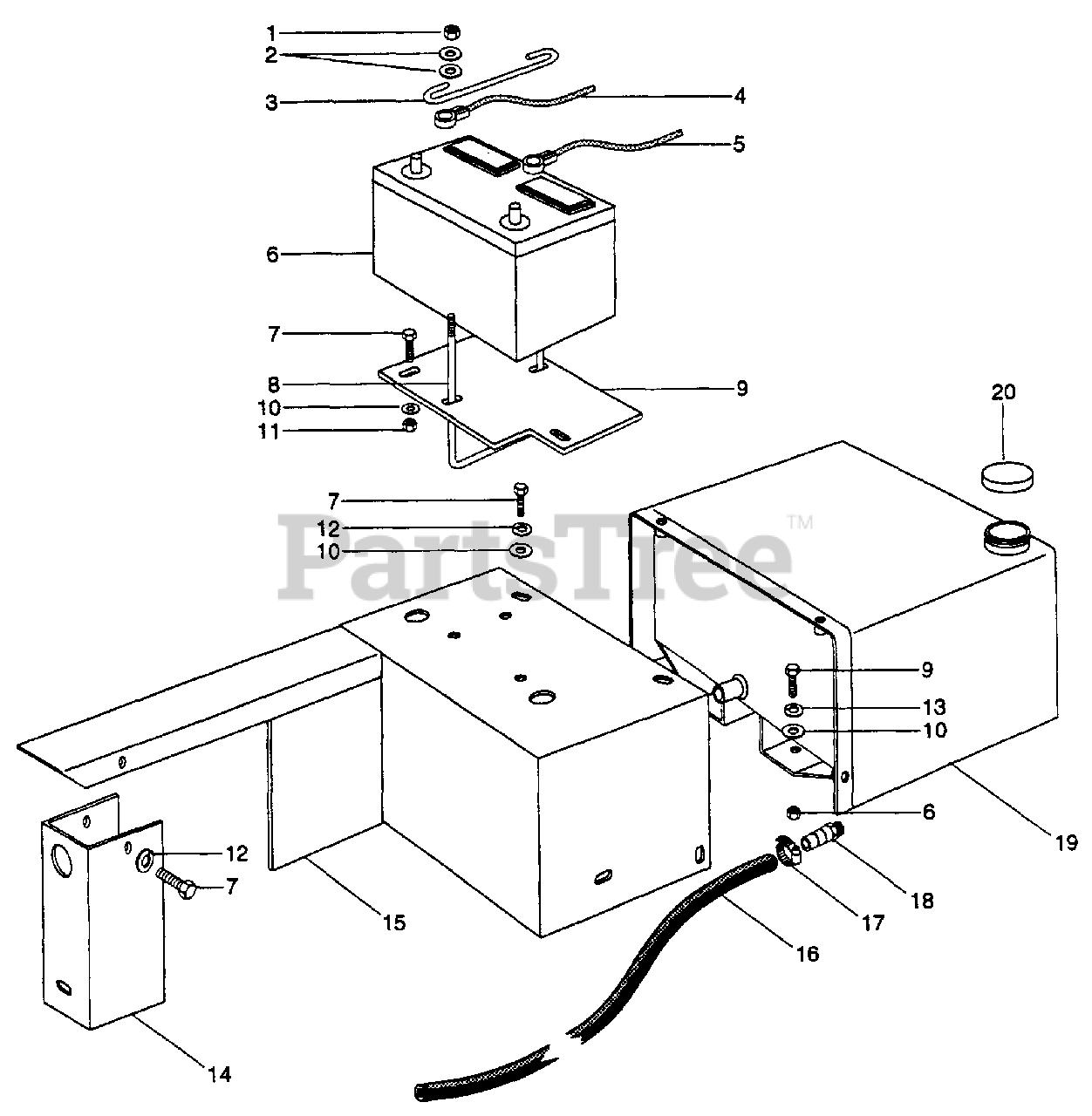

BATTERY AND FUEL Parts Diagram

  • Title

1

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 06412700

WSHR-FL-STL .281 X .62 X .065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09030300

ROD, HOLD DOWN

$

$

Not available

4

Gravely 04202100

BATTERY CABLE
(Superseded to 02087400)

$

$

Not available

5

Gravely 04202000

GROUND CABLE
(Superseded to 02078300)

$

$

Not available

6

Gravely 04202200

BATTERY
(Superseded to 02078500)

$

$

Not available

7

Gravely 05914500

BLT-HEX .38-16 X 1.00 PL GR
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 09030200

ROD BATTERY

$252.99

$

Usually ships in 4-12 days

0

9

Gravely 04205251

MOUNTING PLATE
(Superseded to 02953051)

$

$

Not available

10

Gravely 06400800

WSHR-FL-STL .438 X 1.0 X .083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06512200

NUT-LK TOP .375-16 GR C PL

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 06300400

WSHR-LOCK .375 X .115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

13

Gravely 06400200

WSHR-FL-STL .38 X .875 X .083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 04201751

HOUR-METER MOUNT

$

$

Not available

15

Gravely 04200453

GUARD WELDMENT
(Superseded to 02088953)

$

$

Not available

15

Gravely 04200457

GUARD WELDMENT
(Superseded to 02088953)

$

$

Not available

16

Gravely 03153700

HOSE, FUEL

$

$

Not available

17

Gravely 06924300

CLAMP HOSE

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 04202300

HOSE BARB

$

$

Not available

19

Gravely 04200353

FUEL TANK WELDMENT
(Superseded to 59200700)

$

$

Not available

19

Gravely 04200357

FUEL TANK WELDMENT

$

$

Not available

20

Gravely 04202500

GAS CAP

$

$

Not available
