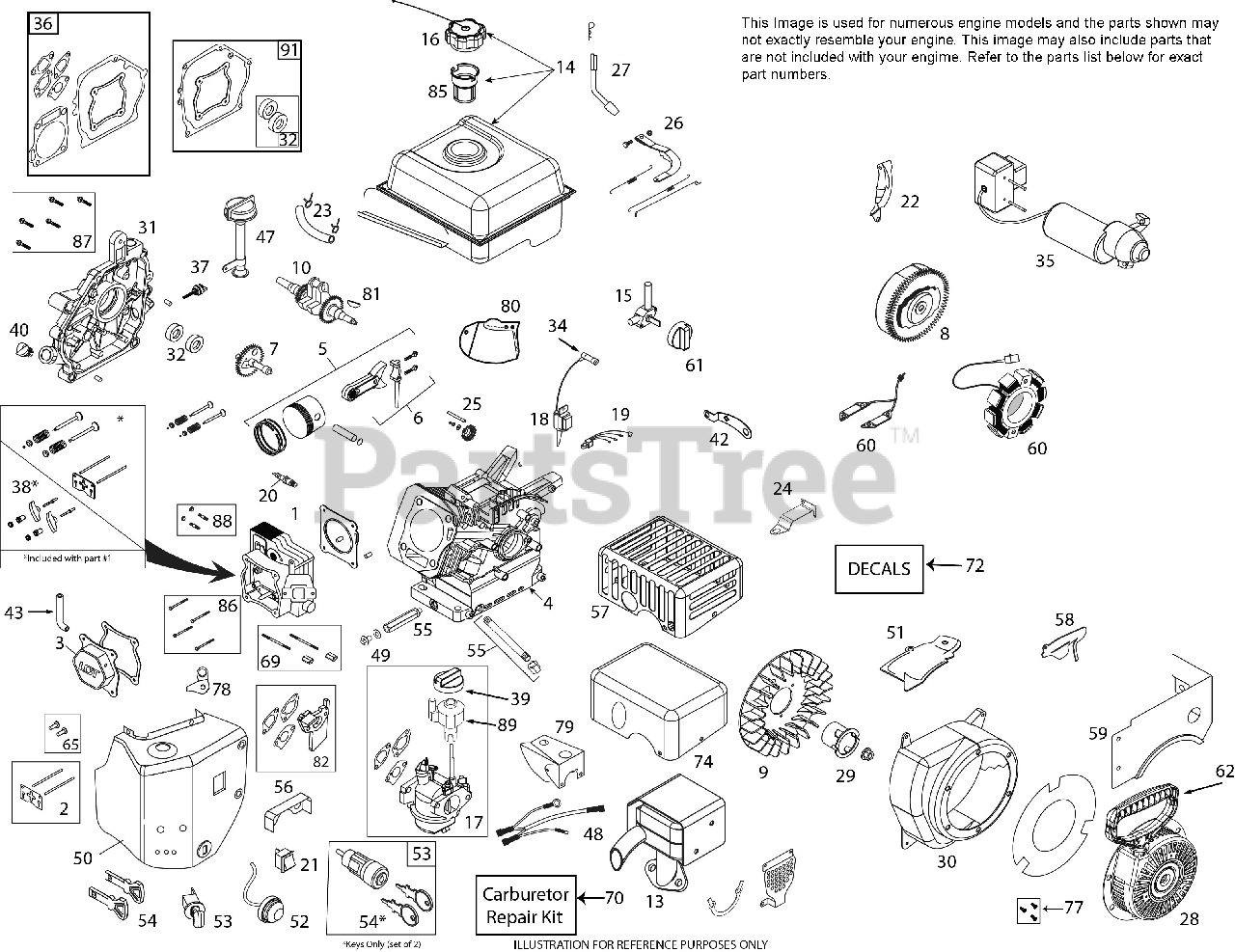

939401 - Ariens Sno-Tek 20" Snow Blower, 136cc LCT (SN: 085000 & Above) Engine 08200818 Parts Diagram

Sno-Tek 20" Snow Blower, 136cc LCT

Engine 08200818 Parts Diagram

  • Title

1

Ariens 20001187

CYLINDER HEAD ASSY(W/GASKET)

Note: (incl. Gasket)

$197.99

$

Usually ships in 4-12 days

0

2

Ariens 20001188

PUSH ROD & PLATE KIT(W/GASKET)

Note: (136cc)(incl. valve cover gskt)

$37.99

$

Usually ships in 4-12 days

0

3

Ariens 20001217

VALVE COVER (W/GASKET)

Note: (136cc)(incl. gasket)

$12.99

$

Usually ships in 4-12 days

0

5

Ariens 20001192

PISTON & ROD ASSEMBLY

Note: (136cc)

$73.99

$

Usually ships in 4-12 days

0

7

Ariens 20001193

CAMSHAFT - MCR(W/COVER GASKET)

Note: (136cc)

$57.99

$

Usually ships in 4-12 days

0

8

Ariens 20001088

FLYWHEEL - ELECTRIC START

Note: (no charging magnets) (136cc SS Sn)

$81.99

$

Usually ships in 4-12 days

0

9

Ariens 20001214

COOLLNG FAN - FLYWHEEL (PLSTC)

Note: (Plastic - 136cc)

$8.99

$

Usually ships in 4-12 days

0

10

Ariens 20001073

CRANKSHAFT (#18 KEYED)

Note: (#18 Keyed 136cc Snow)

$116.99

$

Usually ships in 4-12 days

0

13

Ariens 20001083

MUFFLER KIT

Note: (incl. ref# 74 Shield)

$48.99

$

In Stock, only 1 left!

0

14

Ariens 20001078

FUEL TANK - BLACK W/CAP

Note: (Black)(136cc)(2.7L Snow)

$119.99

$

Usually ships in 4-12 days

0

15

Ariens 20001436

FUEL TANK ON/OFF VALVE

Note: (Petcock) - GEN II Snow

$27.99

$

In Stock, Qty 15

0

16

Ariens 07500112

CAP, FUEL TANK BLACK

Note: (Vented) same as 4301.1

$17.99

$

In Stock, Qty 9

0

17

Ariens 20001086

CARBURETOR (W/GSKTS & SPACER)
(Superseded to 20001369)

Note: (L13) (GEN II Snow 136cc- w/gskts & spacer)

$71.99

$

In Stock, only 1 left!

0

18

Ariens 20001042

IGNITION COIL (CDI) (STANDARD)

Note: (CDI) (208cc)(Standard)

$45.99

$

In Stock, Qty 16

0

20

Ariens 20001246

SPARK PLUG, ARIENS AX
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

21

Ariens 20001033

ON/OFF SWITCH - ROCKER

$13.99

$

In Stock, only 1 left!

0

22

Ariens 20001093

SHIELD - FLYWHEEL - ELECTRIC

Note: (136 Single Stage) Snow

$6.49

$

Usually ships in 4-12 days

0

23

Ariens 20001252

FUEL HOSE KIT 1/4-318MM

Note: (1/4' ID x 318mm - SS Snow)

$5.99

$

In Stock, Qty 11

0

24

Ariens 20001080

SPEED CONTROL BRACKET (FIXED)

Note: (Fixed)

$6.49

$

Usually ships in 4-12 days

0

25

Ariens 20001236

GOVERNOR GEAR ASSEMBLY

Note: (136/208cc)

$10.99

$

Usually ships in 4-12 days

0

26

Ariens 20001207

GOVERNOR ARM & LINK KIT

Note: (136cc Snow)

$8.49

$

Usually ships in 4-12 days

0

27

Ariens 20001209

GOVERNOR ARM PADDLE

$20.99

$

Usually ships in 4-12 days

0

28

Ariens 20001054

RECOIL STARTER ASSY RND-BLACK

Note: (Round-Black)Snow

$62.99

$

In Stock, Qty 16

0

29

Ariens 20001091

STARTER CUP

Note: (136cc Snow)

$19.99

$

Usually ships in 4-12 days

0

30

Ariens 20001328

BLOWER HOUSING - BLACK ES

Note: (136 Two-Stage) Snow

$50.99

$

Usually ships in 4-12 days

0

31

Ariens 20001087

CRANKCASE COVER ASSY

Note: (136cc with threaded oil-fill tube)

$73.99

$

Usually ships in 4-12 days

0

32

Ariens 20001213

OIL SEAL KIT

Note: (136cc)

$15.99

$

Usually ships in 4-12 days

0

34

Ariens 20001158

SPARK PLUG BOOT (W/MTL SHIELD)

Note: (Snow)

$11.99

$

In Stock, only 2 left!

0

35

Ariens 20001030

120V ELECTRIC STARTER
(Superseded to 20001045)

Note: (208/254cc Gen ll) (side mount)

$206.99

$

In Stock, only 1 left!

0

35

Ariens 20001428

ELECTRIC STARTER SOCKET (CAP)

Note: (Not Shown) (OPTIONAL)

$10.99

$

Usually ships in 4-12 days

0

35

Ariens 20001103

STARTER SWITCH SCREWS

$9.49

$

In Stock, only 1 left!

0

36

Ariens 20001215

ENGINE GASKET KIT

Note: (136cc)

$68.99

$

In Stock, only 1 left!

0

37

Ariens 20001244

SMALL BLACK OIL DIPSTICK

Note: (Plastic)

$7.99

$

In Stock, only 1 left!

0

38

Ariens 20001190

ROCKER ARM KIT (W/GASKET)

Note: (136cc)(incl. gasket)

$21.99

$

Usually ships in 4-12 days

0

39

Ariens 20001145

CHOKE CONTROL KNOB (RED)
(Superseded to 20000025)

Note: (GEN II Red)

$5.99

$

In Stock, Qty 20+

0

40

Ariens 20001243

NON-REMOVABLE PLASTIC PLUG

Note: (136/208/254cc)

$5.99

$

In Stock, only 1 left!

0

43

Ariens 20001251

BREATHER TUBE

Note: (136/208/254cc)

$4.99

$

Usually ships in 4-12 days

0

48

Ariens 20001082

WIRE HARNESS

Note: (136cc Snow)

$14.99

$

Usually ships in 4-12 days

0

49

Ariens 20001255

OIL DRAIN PLUG (W/WASHER)

Note: (136/208/254cc)

$5.99

$

Usually ships in 4-12 days

0

50

Ariens 20001074

HEATER BOX KIT

Note: (136cc Snow)

$71.99

$

Usually ships in 4-12 days

0

51

Ariens 20001095

SHIELD - CYLINDER

Note: (136cc Snow)

$6.99

$

Usually ships in 4-12 days

0

52

Ariens 20001023

PRIMER BULB WITH HOSE-SNOW
(Superseded to 20001472)

$

$

Not available

53

Ariens 20001031

SAFETY KEY SWITCH (W/KEYS)
(Superseded to 20000026)

Note: (incl. keys)

$12.99

$

In Stock, Qty 6

0

54

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

Note: (2) (Snow)

$4.99

$

In Stock, Qty 11

0

55

Ariens 20001068

OIL DRAIN TUBE

Note: (136/208cc)

$11.99

$

Usually ships in 4-12 days

0

58

Ariens 20001089

SHIELD - GOVERNOR LINKAGE

$6.49

$

Usually ships in 4-12 days

0

59

Ariens 20001076

FUEL TANK SKIRT

Note: (136cc Snow)

$17.99

$

Usually ships in 4-12 days

0

61

Ariens 20001148

FUEL CONTROL KNOB (RED)
(Superseded to 20000024)

Note: (GEN II Snow - Red)

$4.99

$

In Stock, Qty 20+

0

62

Ariens 20001058

STARTER GRIP
(Superseded to 20001064)

$14.99

$

In Stock, only 2 left!

0

65

Ariens 20001189

TAPPET KIT (SET OF 2)

Note: (136cc)(Set of 2)

$7.49

$

Usually ships in 4-12 days

0

69

Ariens 20001024

CARBURETOR STUDS & COUPLNG KIT

$11.99

$

In Stock, Qty 9

0

70

Ariens 20001184

CARBURETOR REPAIR KIT
(Superseded to 20001441)

Note: (136/208/254cc)

$34.99

$

In Stock, Qty 8

0

74

Ariens 20001019

MUFFLER HEAT SHIELD COVER

Note: (136/208/254)

$22.99

$

In Stock, only 1 left!

0

77

Ariens 20001186

RECOIL BOLT KIT

Note: (3 bolts per kit)

$4.99

$

In Stock, Qty 6

0

78

Ariens 20001079

BREATHER TUBE BRACKET

$

$

Not available

79

Ariens 20001081

CARBURETOR COVER

Note: (136cc Snow)

$8.99

$

Usually ships in 4-12 days

0

81

Ariens 20001327

WOODRUFFF FLYWHEEL KEY 5-PACK

Note: (5-pack) (4x6x18mm)(136/291cc)

$7.49

$

Usually ships in 4-12 days

0

82

Ariens 20001326

CARBURETOR SPACER

$9.49

$

Usually ships in 4-12 days

0

85

Ariens 20001342

FUEL TANK STRAINER

$5.99

$

In Stock, Qty 5

0

86

Ariens 20001358

HEAD BLT KIT 136-179-208-254CC

Note: (4) (136-179-208-254cc)

$

$

Not available

87

Ariens 20001356

CRANKCASE COVER BOLT KIT 136CC

Note: (7) (136cc)

$11.99

$

Usually ships in 4-12 days

0

88

Ariens 20001353

MUFFLER MTG STUD KIT

Note: (2)

$9.49

$

In Stock, only 1 left!

0

91

Ariens 20001416

CRANKCASE GASKET KIT (136CC)

$28.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001346

HIGH ALT JET - 136CC L13 CARB

Note: (>6,000 feet)(136cc L13 Carburetor)

$13.99

$

Usually ships in 4-12 days

0

9999

Ariens 20001438

HARDWARE KIT (4 M6X10 FLG BLT)

Note: (4 M6X10 FLG BLT)

$6.99

$

Usually ships in 4-12 days

0
