939401 - Ariens Sno-Tek 20" Snow Blower, 136cc LCT (SN: 075000 - 084999) Auger And Impeller Parts Diagram

Sno-Tek 20" Snow Blower, 136cc LCT

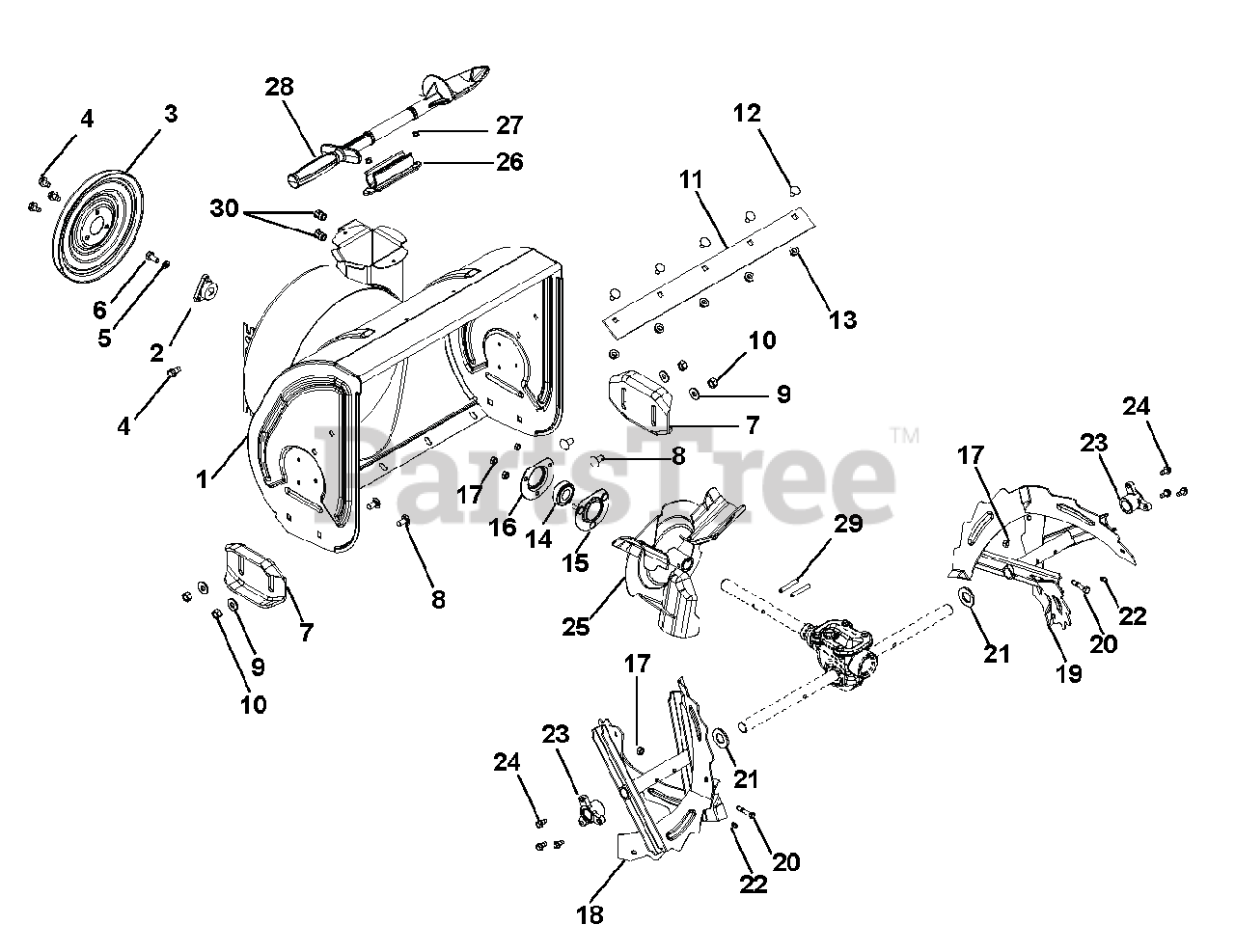

Auger And Impeller Parts Diagram

  • Title

1

Ariens 53900800

BLOWER HOUSING, 20" BLACK

$305.99

$

Usually ships in 4-12 days

0

2

Ariens 04516500

HUB, ATTACHMENT PULLEY D-BORE

$

$

Not available

3

Ariens 00268900

PULLEY,SPIN FORM SINGLE GROOVE
(Superseded to 00268951)

$

$

Not available

4

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 02483851

SKID SHOE, REVERSIBLE - BLACK

$19.99

$

In Stock, Qty 5

0

8

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 00396651

BLADE, SCRAPER 20" COMPACT BLK

$28.99

$

Usually ships in 4-12 days

0

12

Ariens 06200209

BOLT, MODIFIED HEAD CARRIAGE

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 20+

0

15

Ariens 00428700

BEARING FLANGE

$18.99

$

In Stock, Qty 8

0

16

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

17

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 53212300

AUGER, 20" RH, BLK SERR W/ZERK

$170.99

$

In Stock, only 1 left!

0

19

Ariens 53212400

AUGER, LH 20", BLK SERR W/ZERK

$

$

Not available

20

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Item 17)

$2.99

$

In Stock, Qty 20+

0

21

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

23

Ariens 05500918

BUSHING, RAKE SHAFT .75"

$14.99

$

In Stock, Qty 6

0

24

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$82.99

$

In Stock, only 1 left!

0

26

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

27

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 15

0

28

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

29

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07001612

NUT, THREADED INSERT .38-16
(Superseded to 07001805)

$2.49

$

Usually ships in 4-12 days

0
