939401 - Ariens Sno-Tek 20" Snow Blower, 136cc LCT (SN: 035000 - 074999) Gear Case Parts Diagram

Sno-Tek 20" Snow Blower, 136cc LCT

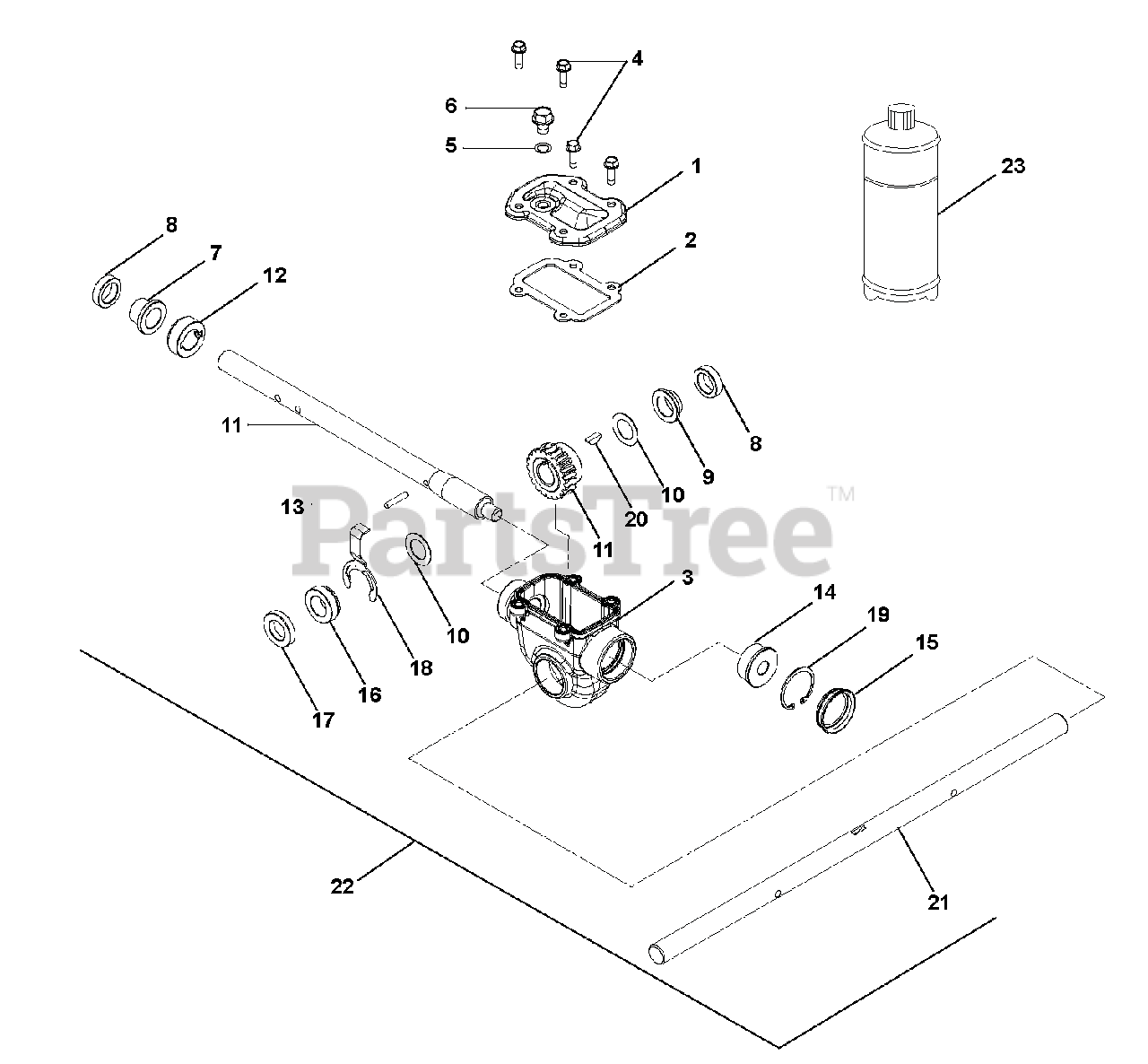

Gear Case Parts Diagram

  • Title
1

Ariens 04280251

COVER, TOP - COMPACT

$20.99

$

Usually ships in 4-12 days

0

2

Ariens 04282400

GASKET, TOP - COMPACT GEARCASE

$3.99

$

In Stock, Qty 11

0

3

Ariens 04304600

GEARCASE, COMPACT ALUMINUM

$75.99

$

Usually ships in 4-12 days

0

4

Ariens 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 6

0

5

Ariens 06400920

WSHR-BND-SEAL .38X.75X.11 GALV

$0.99

$

In Stock, Qty 20+

0

6

Ariens 07400110

@SCR-ROLOK .38-16X.50 HWH YWZC
(Superseded to 07400201)

$3.49

$

In Stock, only 1 left!

0

7

Ariens 05501020

BSHG-FLG .755X.878X.75X1.25

$9.49

$

Usually ships in 4-12 days

0

8

Ariens 05600501

SEAL-OIL .748X1.125X.312 TB2-H
(Superseded to 05600509)

$5.99

$

In Stock, Qty 15

0

9

Ariens 05501106

BSHG-FLG .755X.878X.424X1.25

$

$

Not available

10

Ariens 06400912

WSHR-FL-STL .760X1.225X.032 YZ

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 52003400

SHAFT AND WORM GEAR ASSEMBLY

$86.99

$

In Stock, Qty 7

0

12

Ariens 04277000

THRUST COLLAR, .75" ID SLIPFIT

$

$

Not available

13

Ariens 05800207

PIN-STR .188X1.00 6150

$2.49

$

In Stock, only 3 left!

0

14

Ariens 05501108

BSHG-FLG .503X1.303X.62X1.465

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 04302800

COVER, GEAR CASE 1.50"

$15.99

$

In Stock, Qty 5

0

16

Ariens 05501107

BSHG-FLG COMPACT, RIGHT

$17.99

$

In Stock, only 2 left!

0

17

Ariens 05600440

SEAL-OIL .748X1.300X.250 TB2-H
(Superseded to 05600508)

$5.99

$

In Stock, Qty 11

0

18

Ariens 04323600

BUSHING RETAINER, COMPACT

$

$

Not available

19

Ariens 05700212

RG-RTNG-INT 1.500X.050

$2.99

$

Usually ships in 4-12 days

0

20

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$2.99

$

In Stock, Qty 11

0

21

Ariens 00260500

SHAFT, RAKE - 20" (.750 DIA)

$70.99

$

Usually ships in 4-12 days

0

22

Ariens 53900900

GEAR CASE, 20" ALUM SM TOP-LD

Note: (Includes Items 1 - 21)

$224.99

$

In Stock, only 1 left!

0

23

Ariens 00068800

ARIENS L3 LUBE, 8 OZ BOTTLE

$18.99

$

In Stock, Qty 20+

0
