939401 - Ariens Sno-Tek 20" Snow Blower, 136cc LCT (SN: 035000 - 074999) Engine Belt Drive Parts Diagram

Sno-Tek 20" Snow Blower, 136cc LCT

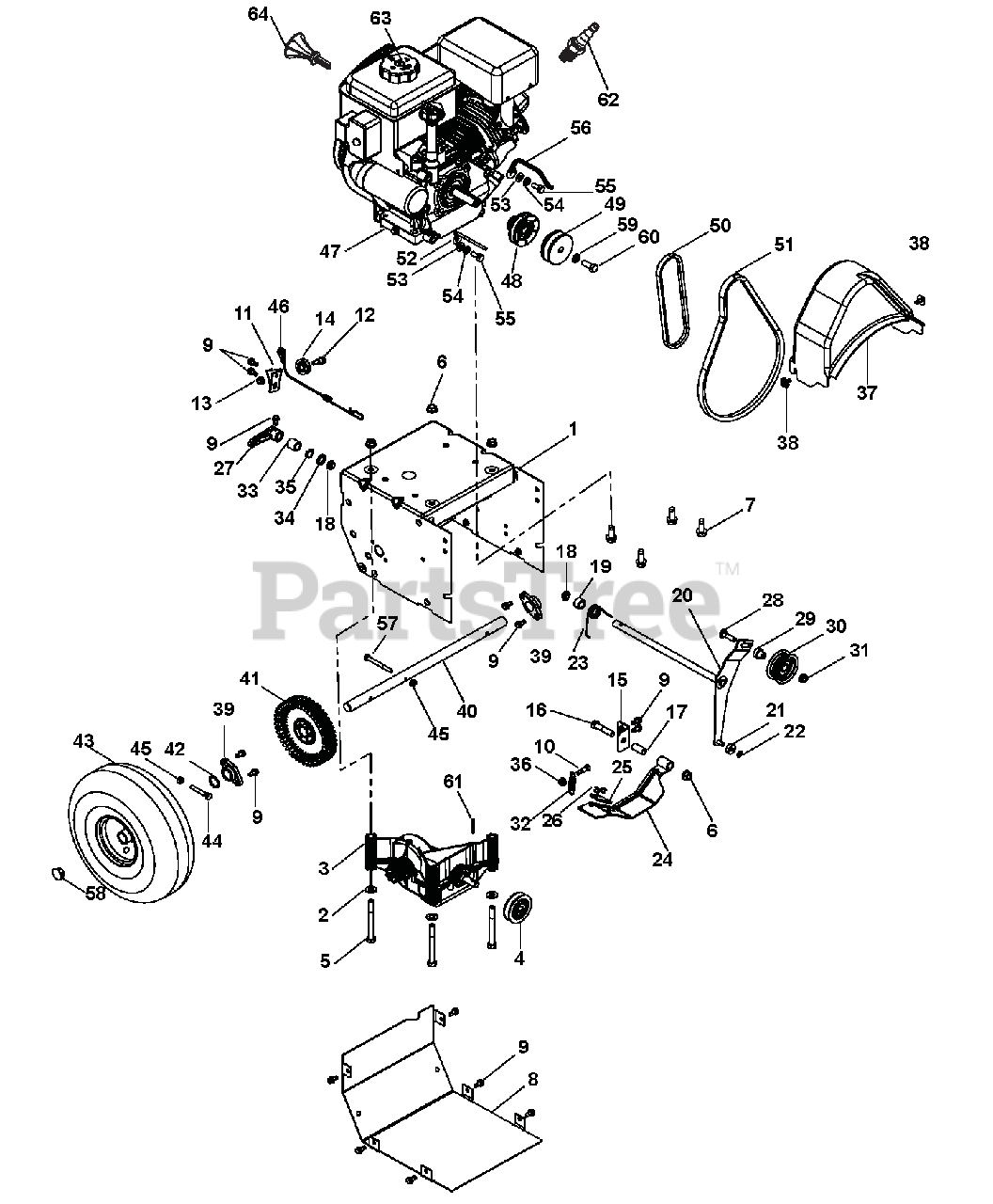

Engine Belt Drive Parts Diagram

  • Title

1

Ariens 03990451

FRAME, WELDMENT

$

$

Not available

2

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 04164600

TRANSMISSION, GT H0 W/O PULLEY

$161.99

$

Usually ships in 4-12 days

0

4

Ariens 04164800

PULLEY, COMPOSITE 3L (2.308)

$

$

Not available

5

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

$3.99

$

In Stock, Qty 20+

0

6

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07400010

SCR-TAP .38-16X1.0 HWH YZ W/VT

$

$

Not available

8

Ariens 00490851

COVER, BOTTOM

$34.99

$

Usually ships in 4-12 days

0

9

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05900030

BLT-SHLDR .31X.50 .25-20X.438

$5.99

$

Usually ships in 4-12 days

0

11

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

12

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

15

Ariens 00495251

BRACKET, MOUNT - BRAKE

$11.99

$

Usually ships in 4-12 days

0

16

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 05500106

BSHG-SLV .385X.500X1.045

$1.99

$

In Stock, Qty 20+

0

18

Ariens 05500028

BUSHING, POLYLINER-.50 SNAPIN

$2.49

$

In Stock, Qty 18

0

19

Ariens 05500107

BSHG-SLV .510X.751X.475

$1.49

$

In Stock, Qty 20+

0

20

Ariens 04345700

WELDMENT, ATTACHMENT IDLER ARM

$

$

Not available

21

Ariens 05500820

BSHG,SLV .270 X .750 X .250

$2.49

$

In Stock, Qty 20+

0

22

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 17

0

23

Ariens 08300015

SG-TORS .067X.88

$2.49

$

In Stock, Qty 20+

0

24

Ariens 52000500

BRAKE ARM W/PAD

Note: (Includes Items 25 and 26)

$22.99

$

In Stock, only 1 left!

0

25

Ariens 00180500

PAD, BRAKE

Note: (Included in Item 24)

$10.99

$

In Stock, Qty 7

0

26

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

Note: (Included in Item 24

$0.99

$

In Stock, Qty 7

0

27

Ariens 01987100

ARM, CLUTCH - ATTACHMENT

$

$

Not available

28

Ariens 06200008

@BLT-RHDSHSQNK.31-18X1.25 G5YZ
(Superseded to 06200310)

$1.49

$

In Stock, Qty 5

0

29

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, only 2 left!

0

30

Ariens 02457400

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 20+

0

31

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 08300029

SG-TENS .06X.46X2.00

$5.99

$

Usually ships in 4-12 days

0

33

Ariens 05501104

BSHG-SLV .510X.751X.750

$3.49

$

Usually ships in 4-12 days

0

34

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

35

Ariens 06400005

WSHR-WAVE .50X.75X.015 .13FRHT

$2.99

$

In Stock, only 2 left!

0

36

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 00497200

COVER, BELT

$20.99

$

Usually ships in 4-12 days

0

38

Ariens 07400104

SCR-TAP .25-20X.50 LGHWH TR YZ
(Superseded to 07400138)

$1.49

$

In Stock, only 4 left!

0

39

Ariens 05500101

BSHG .75X1.125X.65

$9.99

$

In Stock, Qty 8

0

40

Ariens 04149800

SHAFT, AXLE - SINGLE SPEED

$

$

Not available

41

Ariens 03268200

GEAR, AXLE 45T POLYMER

$14.99

$

Usually ships in 4-12 days

0

42

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

43

Ariens 07100222

TIRE/WHEEL, 4.10-4

$68.99

$

Usually ships in 4-12 days

0

Ariens 07100724

TIRE, 4.10-4 K398A

$

$

Not available

Ariens 07100732

TUBE, 4.10-4

$

$

Not available

44

Ariens 05953000

BLT-HEX .25-20X1.75 GR8 YWZC

$9.49

$

In Stock, only 1 left!

0

45

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06900503

CABLE, LOWER TRACTION,SS & PRO

$17.99

$

In Stock, only 4 left!

0

47

Ariens 08200704

ENGINE,LCT STORMFORCE 208 120V

$

$

Not available

48

Ariens 04098200

SHEAVE, DRIVE

$15.99

$

Usually ships in 4-12 days

0

49

Ariens 03776900

SHEAVE, ENGINE

$22.99

$

Usually ships in 4-12 days

0

50

Ariens 07200109

V-BELT, 3L-STRETCH FIT

$18.99

$

In Stock, Qty 7

0

51

Ariens 07200108

V-BELT, 4L-RAW EDGE

$22.99

$

In Stock, Qty 13

0

52

Ariens 02411000

BELT FINGER

$9.49

$

In Stock, only 1 left!

0

53

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 00498300

FINGER, BELT

$

$

Not available

57

Ariens 05900034

@BLT-HEX .25-20X2.5 GR8 YWZC

$

$

Not available

58

Ariens 07500024

PLUG, HOLE - 0.75"

$1.49

$

Usually ships in 4-12 days

0

59

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

60

Ariens 05960300

BLT-HEX .38-24X1.0 YWZC GR5

$2.99

$

In Stock, only 1 left!

0

61

Ariens 05800204

PIN-ROLL, 5MMX26MM

$1.99

$

In Stock, only 2 left!

0

62

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

$3.99

$

In Stock, Qty 20+

0

63

Ariens 07500112

CAP, FUEL TANK BLACK

$13.99

$

In Stock, Qty 13

0

64

Ariens 07500111

KEY, PUSH/PULL LCT (2/PACKAGE)
(Superseded to 20000027)

$3.99

$

In Stock, Qty 12

0
