939401 - Ariens Sno-Tek 20" Snow Blower, 136cc LCT (SN: 000101 - 034999) Handlebars And Controls Parts Diagram

Sno-Tek 20" Snow Blower, 136cc LCT

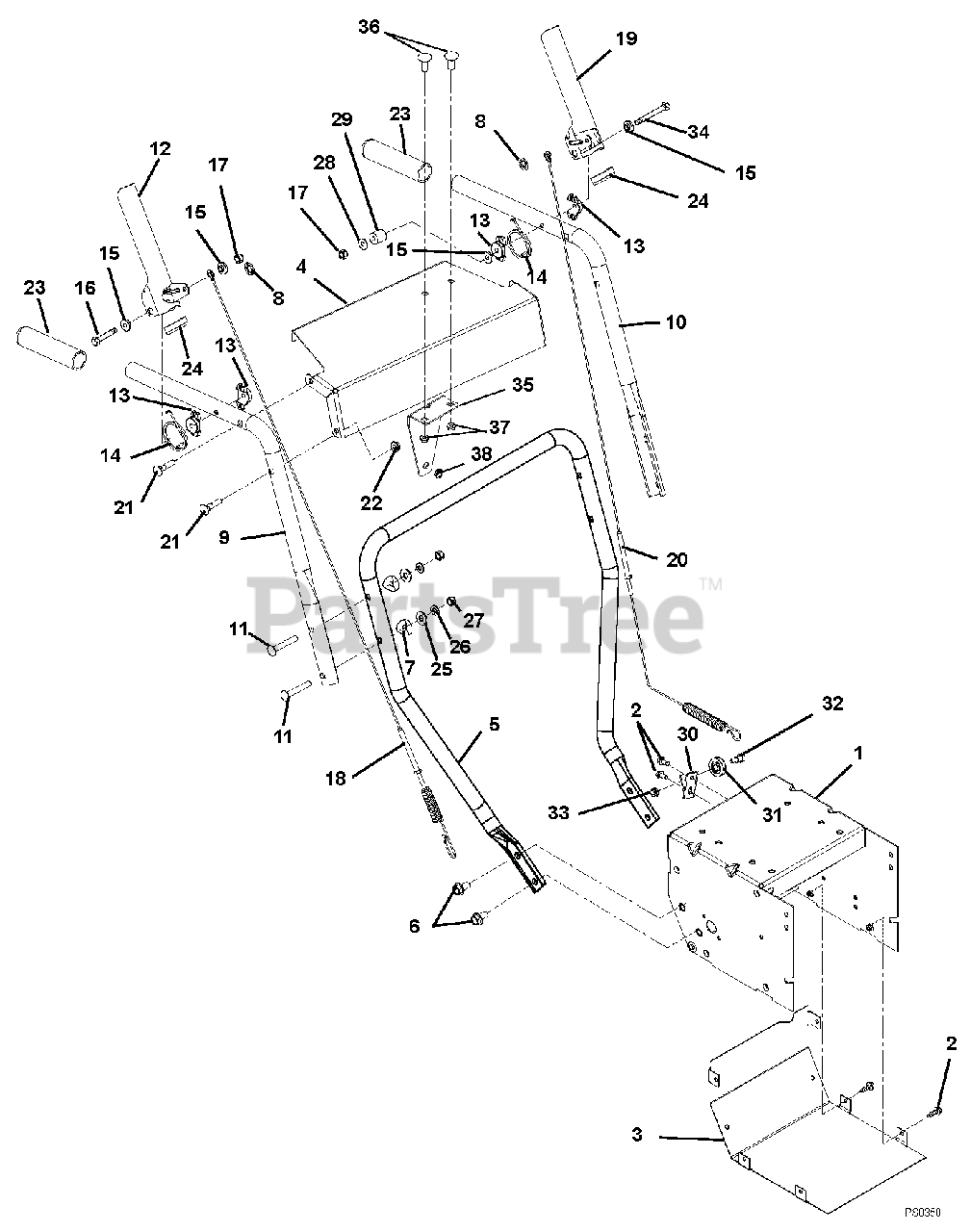

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 00814151

FRAME, WELDMENT

$170.99

$

Usually ships in 4-12 days

0

2

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 00490851

COVER, BOTTOM

$34.99

$

Usually ships in 4-12 days

0

4

Ariens 53900400

CONTROL PANEL W/DECAL SNO TEK

$

$

Not available

5

Ariens 00596351

HANDLEBAR, LOWER (SNGLE SPEED)
(Superseded to 00490951)

$227.99

$

Usually ships in 4-12 days

0

6

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

8

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

9

Ariens 00585951

HANDLEBAR, UPPER RH

$

$

Not available

10

Ariens 00491051

HANDLEBAR, UPPER LH

$36.99

$

Usually ships in 4-12 days

0

11

Ariens 06221600

@BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

12

Ariens 00398351

PADDLE, CLUTCH - RH COMPACT

$25.99

$

In Stock, only 2 left!

0

13

Ariens 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 08300026

SPRING, TORSION

$5.99

$

Usually ships in 4-12 days

0

15

Ariens 00399300

BSHG, FLG .266X.42X.150 PM

$

$

Not available

16

Ariens 05961600

@BLT-HEX .25-20X2.50 GR5 YWZC

$2.49

$

In Stock, only 1 left!

0

17

Ariens 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 9

0

18

Ariens 06900034

AUGER CABLE, ST520 SINGLE SPD

$25.99

$

Usually ships in 4-12 days

0

19

Ariens 00398151

PADDLE, CLUTCH - LH COMPACT

$40.99

$

In Stock, only 2 left!

0

20

Ariens 06900325

CABLE, TRACTION

$39.99

$

Usually ships in 4-12 days

0

21

Ariens 06200009

BLT-RDHDXLSQNK .31-18X1.5 G5YZ
(Superseded to 06119100)

$

$

Not available

22

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, Qty 20+

0

24

Ariens 07500103

EDGING, CLUTCH PADDLE - 2.00"

$3.49

$

Usually ships in 4-12 days

0

25

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 00589800

BSHG, SLV .266 X .750 X .750

$3.99

$

In Stock, only 1 left!

0

30

Ariens 00373051

BRACKET, CABLE PULLEY
(Superseded to 00373000)

$

$

Not available

31

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 11

0

32

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

33

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 05965300

@BLT-HEX .25-20X3.25 YWZC

$

$

Not available

35

Ariens 03917251

MOUNT, SNOTK/SNGLSPD CHUT CRNK

$

$

Not available

36

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

37

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 20+

0
