939400 - Ariens Sno-Tek 22" Snow Blower, 208cc LCT (SN: 009785 & Above) Auger And Chute Parts Diagram

Sno-Tek 22" Snow Blower, 208cc LCT

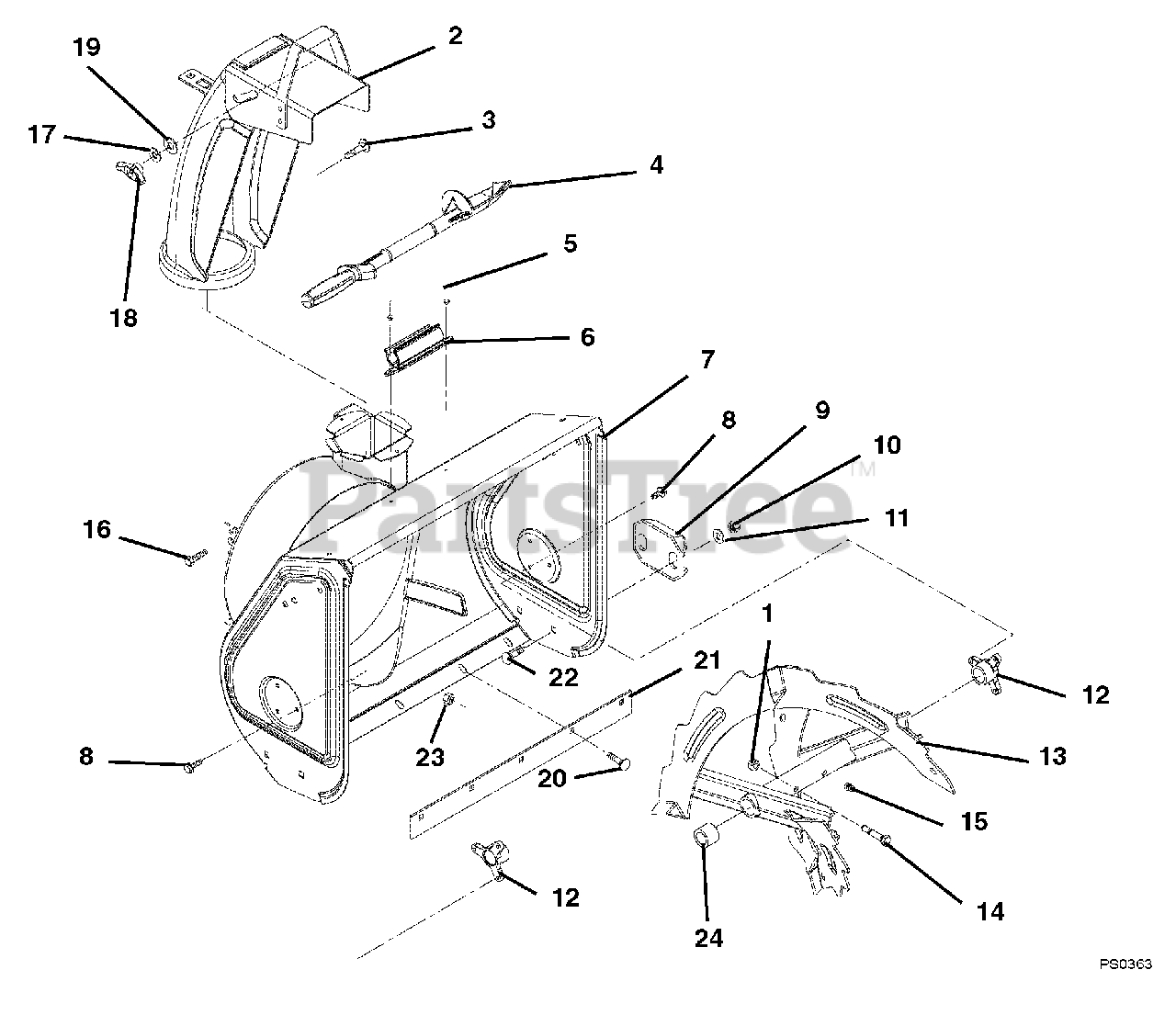

Auger And Chute Parts Diagram

  • Title
1

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 52000900

CHUTE, DISCHARGE W/CAP & DECAL

$134.99

$

Usually ships in 4-12 days

0

3

Ariens 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

4

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

5

Ariens 06800028

RVT-POP .187 YZ
(Superseded to 06800140)

$0.99

$

In Stock, Qty 14

0

6

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

7

Ariens 52001000

BLOWER HOUSING W/DECAL 22" ST

$

$

Not available

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02483851

SKID SHOE, REVERSIBLE - BLACK

$19.99

$

In Stock, Qty 5

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05500918

BUSHING, RAKE SHAFT .75"

$14.99

$

In Stock, Qty 6

0

13

Ariens 53212300

AUGER, 20" RH, BLK SERR W/ZERK

Note: (Includes Item 15)

$170.99

$

In Stock, only 1 left!

0

13

Ariens 53212400

AUGER, LH 20", BLK SERR W/ZERK

Note: (Includes Item 15)

$

$

Not available

14

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Item 1)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

16

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

19

Ariens 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 11

0

20

Ariens 06200120

BLT,RDSHHDSQSHNK .31-18X.62 YZ
(Superseded to 06200209)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03884351

SCRAPER BLADE, 22" COMPACT HI

$26.99

$

In Stock, only 1 left!

0

22

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05500917

BSHG-SLV .75X1.12X1.062 NYL BK

$3.49

$

In Stock, only 2 left!

0
