939400 - Ariens Sno-Tek 22" Snow Blower, 208cc LCT (SN: 000101 - 009784) Gearcase And Impeller Parts Diagram

Sno-Tek 22" Snow Blower, 208cc LCT

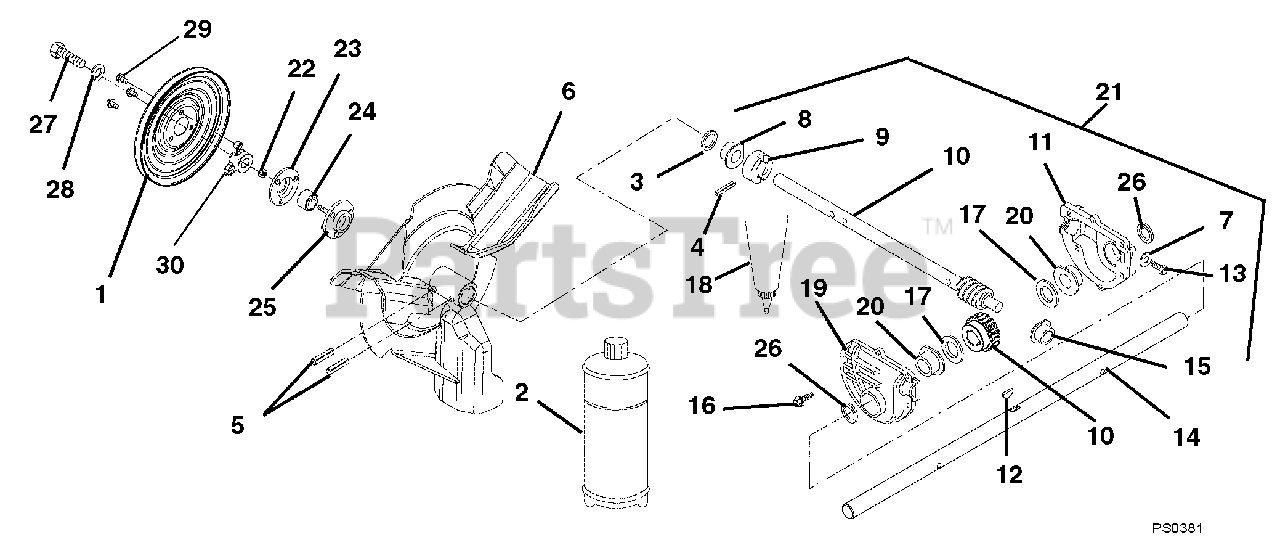

Gearcase And Impeller Parts Diagram

  • Title

1

Ariens 00268951

PULLEY,SPIN FORM SINGLE GROOVE

$

$

Not available

2

Ariens 00008000

ARIENS 16 OZ.BOTTLE OF L2 LUBE
(Superseded to 00068800)

Note: (GEARCASE CAPACITY = 2.5 OZ)

$18.99

$

In Stock, Qty 20+

0

3

Ariens 05600434

SEAL-OIL.748X1.375X.247 GRD OD
(Superseded to 05600004)

$7.99

$

In Stock, Qty 11

0

4

Ariens 05804900

@PIN-GRV .188X1.25 TP E ALLOY

$6.99

$

Usually ships in 4-12 days

0

5

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03835551

IMPELLER, COMPACT 12" 3-BLADE

$82.99

$

In Stock, only 1 left!

0

7

Ariens 06442500

WSHR-FIBER .437X.656X.032

$0.99

$

In Stock, only 2 left!

0

8

Ariens 05511200

BSHG-FLG .750X1.000X.750X1.250

$11.99

$

In Stock, Qty 15

0

9

Ariens 00272100

THRUST COLLAR, .75" ID

$

$

Not available

10

Ariens 53212500

SHAFT AND WORM GEAR ASSEMBLY

$110.99

$

In Stock, Qty 5

0

11

Ariens 00291100

GEARCASE CASTING, MACHINED LH
(Superseded to 52004900)

$59.99

$

Usually ships in 4-12 days

0

12

Ariens 06609300

KEY-WDRF .19X.63 HRD #61

$2.99

$

In Stock, Qty 11

0

13

Ariens 07417000

SCR-TAP .38-16X.75 ROLOK YZ WX
(Superseded to 07400201)

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 03885800

SHAFT, RAKE - 22" (.750 DIA)

$77.99

$

Usually ships in 4-12 days

0

15

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 6

0

16

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

18

Ariens 00031700

LOCTITE 518 GASKET--6ML TUBE

$17.99

$

In Stock, Qty 8

0

19

Ariens 00291200

GEARCASE CASTING, MACHINED RH
(Superseded to 52003300)

$105.99

$

Usually ships in 4-12 days

0

20

Ariens 05531100

BSHG-FLG .753X1.127X.500X1.501

$7.99

$

In Stock, only 2 left!

0

21

Ariens 53900500

GEAR CASE ASSEMBLY - 22" ALUM.

Note: (includes 3, 4, 7-20 and 26)

$

$

Not available

22

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

24

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 19

0

25

Ariens 00428700

BEARING FLANGE

$18.99

$

In Stock, Qty 5

0

26

Ariens 05600437

SEAL-OIL .750X1.375X.25
(Superseded to 05618900)

$11.99

$

In Stock, Qty 17

0

27

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00268901

PULLEY HUB, BOLT-ON D-BORE .75

$9.49

$
