939400 - Ariens Sno-Tek 22" Snow Blower, 208cc LCT (SN: 000101 - 009784) Discharge Chute And Crank Parts Diagram

Sno-Tek 22" Snow Blower, 208cc LCT

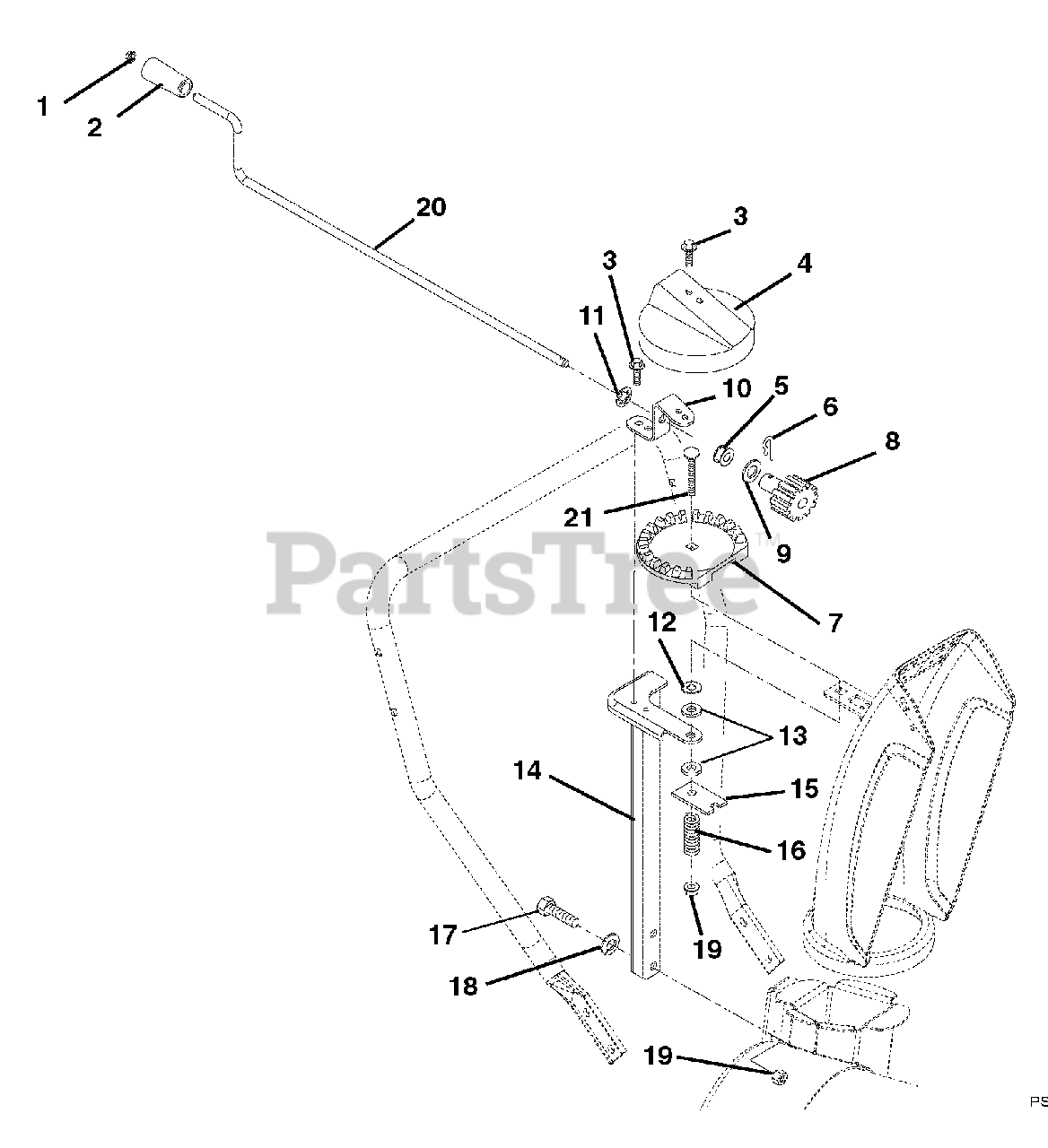

Discharge Chute And Crank Parts Diagram

  • Title

1

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 15

0

2

Ariens 07500001

KNOB, CHUTE CRANK

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03223000

GEAR COVER

$12.99

$

In Stock, only 4 left!

0

5

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

$2.99

$

In Stock, Qty 13

0

6

Ariens 06714500

PIN, SPRING CLIP

$2.49

$

In Stock, Qty 20+

0

7

Ariens 03222900

CHUTE GEAR

$11.99

$

In Stock, Qty 20+

0

8

Ariens 52000100

PINION GEAR W/BRACKET

Note: (Contains Items 5, 9, 10, 11)

$28.99

$

In Stock, Qty 6

0

9

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

$2.49

$

In Stock, Qty 20+

0

10

Ariens 01972451

BRACKET, PINION GEAR

$

$

Not available

11

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 13

0

12

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

13

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

14

Ariens 03883751

CHUTE PEDESTAL, TALL COMPACT

$41.99

$

Usually ships in 4-12 days

0

15

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 11

0

16

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 19

0

17

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03887100

CHUTE CRANK,COMPACT 920,XXX HI

$39.99

$

Usually ships in 4-12 days

0

21

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0
