93902-0230-01 - Briggs & Stratton Vertical Engine Cylinder,CylinderHead,Guards Parts Diagram

Vertical Engine

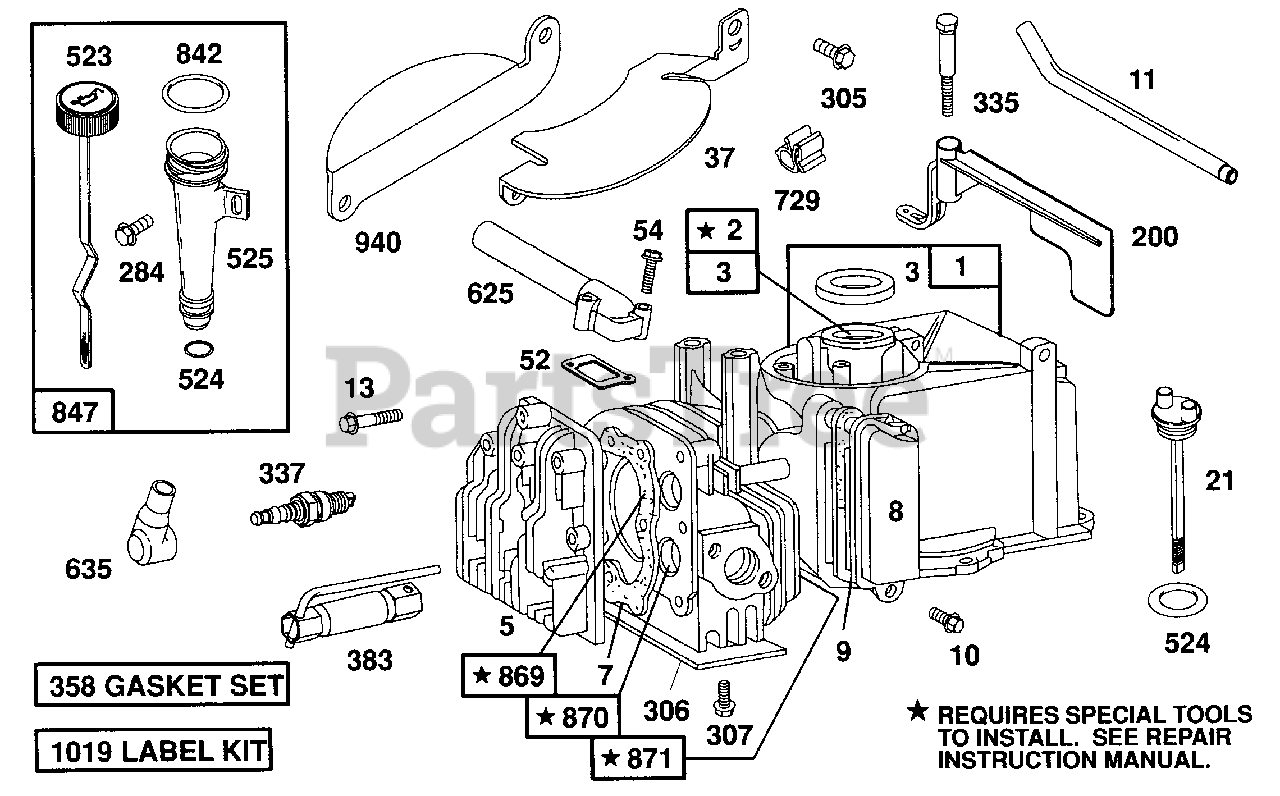

Cylinder,CylinderHead,Guards Parts Diagram

  • Title

1

Briggs & Stratton 399164

Cylinder Assy (Air Vane)
(Superseded to 699653)

$

$

Not available

2

Briggs & Stratton 293708

Bushing/Seal Kit (Plain Bearing)
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 298989

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 211479

Head-Cylinder
(Superseded to 790169)

$

$

Not available

5

Briggs & Stratton 213942

Head-Cylinder
(Superseded to 790169)

Note: Used on Engines with Muffler Guard Used on Engines With Muffler Guard.

$

$

Not available

7

Briggs & Stratton 272170

Gasket-Cylinder Head
(Superseded to 698717)

Note: Included in Gasket Set-Part No. 298989

$5.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 298383

Breather-Vlv. Chamber
(Superseded to 791781)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 270239

Gasket-Valve Cover
(Superseded to 695890)

Note: Included in Gasket Set-Part No. 298989

$4.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 93394

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 231272

Tube-Breather
(Superseded to 691245)

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

21

Briggs & Stratton 280485

Plug-Oil Filler
(Superseded to 691913)

$9.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 223150

Guard-Flywheel (Muffler Side)
(Superseded to 691209)

$10.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270345

Gasket-Intake Elbow
(Superseded to 270345S)

Note: Included in Gasket Set-Part No. 298989

$4.49

$

In Stock, Qty 6

0

54

Briggs & Stratton 93485

Screw-Hex
(Superseded to 691111)

$3.99

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 68388

Blade-Governor

$26.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94073

Screw, Hex Washer H
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

305

Briggs & Stratton 94153

Screw, Sem Hex Head
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

306

Briggs & Stratton 221805

Shield-Cylinder
(Superseded to 690400)

$6.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93758

Screw, Hex Wash Hd
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

335

Briggs & Stratton 93435

Screw-Shoulder
(Superseded to 691107)

$3.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

358

Briggs & Stratton 298989

Gasket-Set
(Superseded to 590777)

$

$

Not available

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 396372

Dipstick & Cap Assy.
(Superseded to 495234)

$14.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 271485

Seal, Oil Fill Tube
(Superseded to 691876)

Note: Included in Gasket Set-Part No. 298989

$5.49

$

In Stock, Qty 11

0

525

Briggs & Stratton 280578

Tube-Oil Filler
(Superseded to 694531)

$

$

Not available

625

Briggs & Stratton 298775

Tube-Intake
(Superseded to 693446)

$14.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

729

Briggs & Stratton 280470

Clip-Wire
(Superseded to 690586)

$3.99

$

In Stock, only 3 left!

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 399030

Tube-Oil
(Superseded to 691440)

$25.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 211291

Seat-Valve (Exhaust)
(Superseded to 691702)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Bushing-Guide (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

940

Briggs & Stratton 222403

Guard-Flywheel

$7.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491082

Label Kit

$

$

Not available
