939002 (ST 520) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Auger And Chute Parts Diagram

20" Snow Blower, 5hp Tecumseh

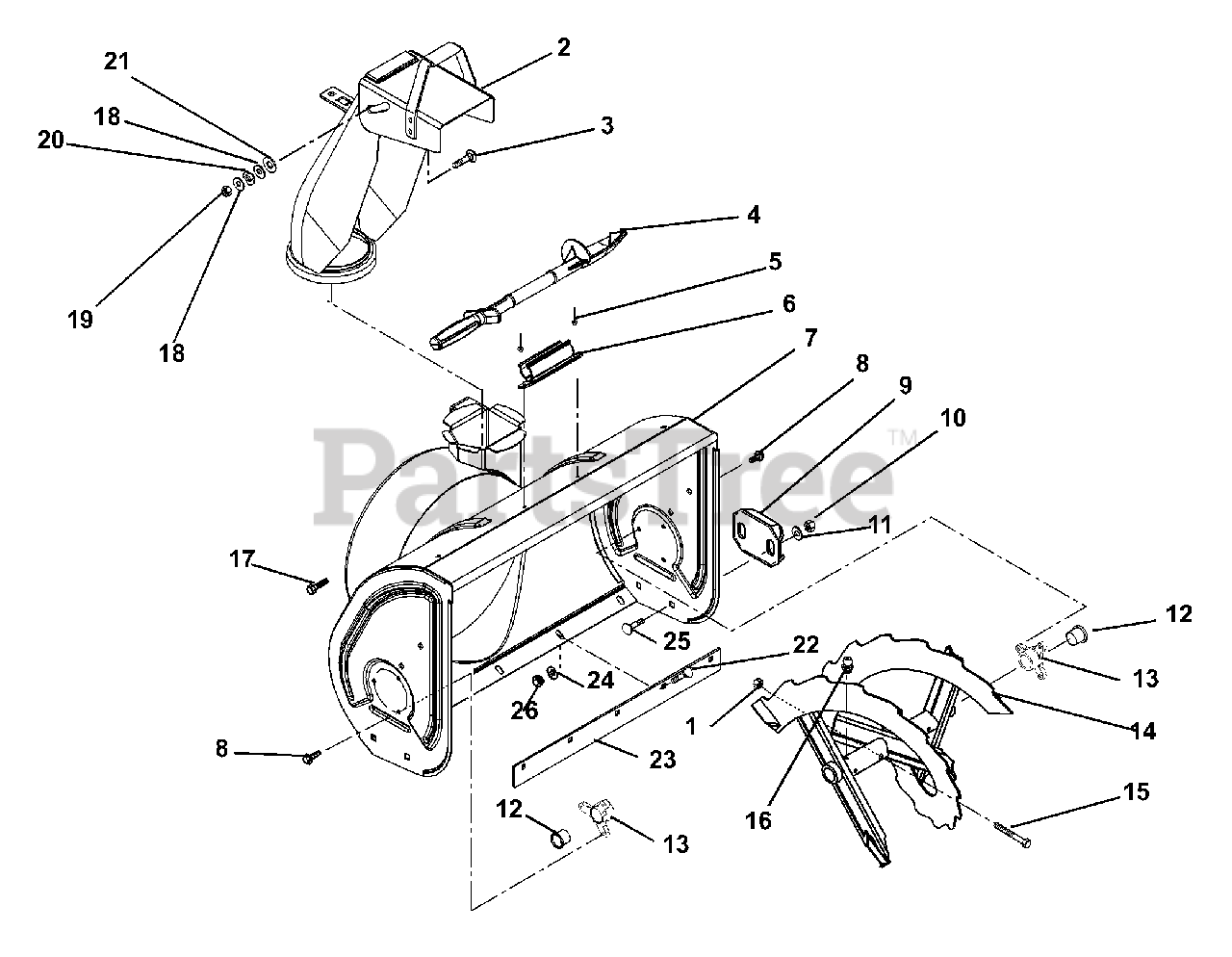

Auger And Chute Parts Diagram

  • Title

1

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 53214400

CHUTE, DISCHARGE W/CAP & DECAL

$

$

Not available

3

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 00170200

DEVICE, SNOW CLEAN OUT

$21.99

$

In Stock, Qty 10

0

5

Ariens 06813600

RVT-POP .187X.45 DOME SS FBF64
(Superseded to 06800140)

$0.99

$

In Stock, Qty 15

0

6

Ariens 00170300

MOUNT, SNOW CLEAN OUT

$11.99

$

In Stock, only 4 left!

0

7

Ariens 53214600

BLOWER HOUSING, 20"
(Superseded to 53216600)

$297.99

$

Usually ships in 4-12 days

0

8

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 02483859

SKID SHOE, REVERSIBLE - ORANGE

$19.99

$

In Stock, Qty 20+

0

10

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05500012

BSHG-FLG, SPLIT NYLINER .75"ID
(Superseded to 05500109)

$3.99

$

In Stock, Qty 20+

0

13

Ariens 00275200

BUSHING, RAKE SHAFT .75"

$26.99

$

In Stock, only 2 left!

0

14

Ariens 53212300

AUGER, 20" RH, BLK SERR W/ZERK

Note: (Includes Items 16)

$170.99

$

In Stock, only 1 left!

0

Ariens 53212400

AUGER, LH 20", BLK SERR W/ZERK

Note: (Includes Items 16)

$

$

Not available

15

Ariens 53200500

SHEAR BOLT WITH NUT

Note: (Includes Items 1)

$2.99

$

In Stock, Qty 20+

0

16

Ariens 07061300

ZERK,FITTING .25X.125 DRIVE IN

$3.99

$

In Stock, Qty 20+

0

17

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

21

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

22

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, Qty 20+

0

23

Ariens 00396659

BLADE, SCRAPER - 20" COMPACT

$28.99

$

In Stock, only 4 left!

0

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06200004

@BLT-RHDSSQNK .38-16X.75 G5YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0
