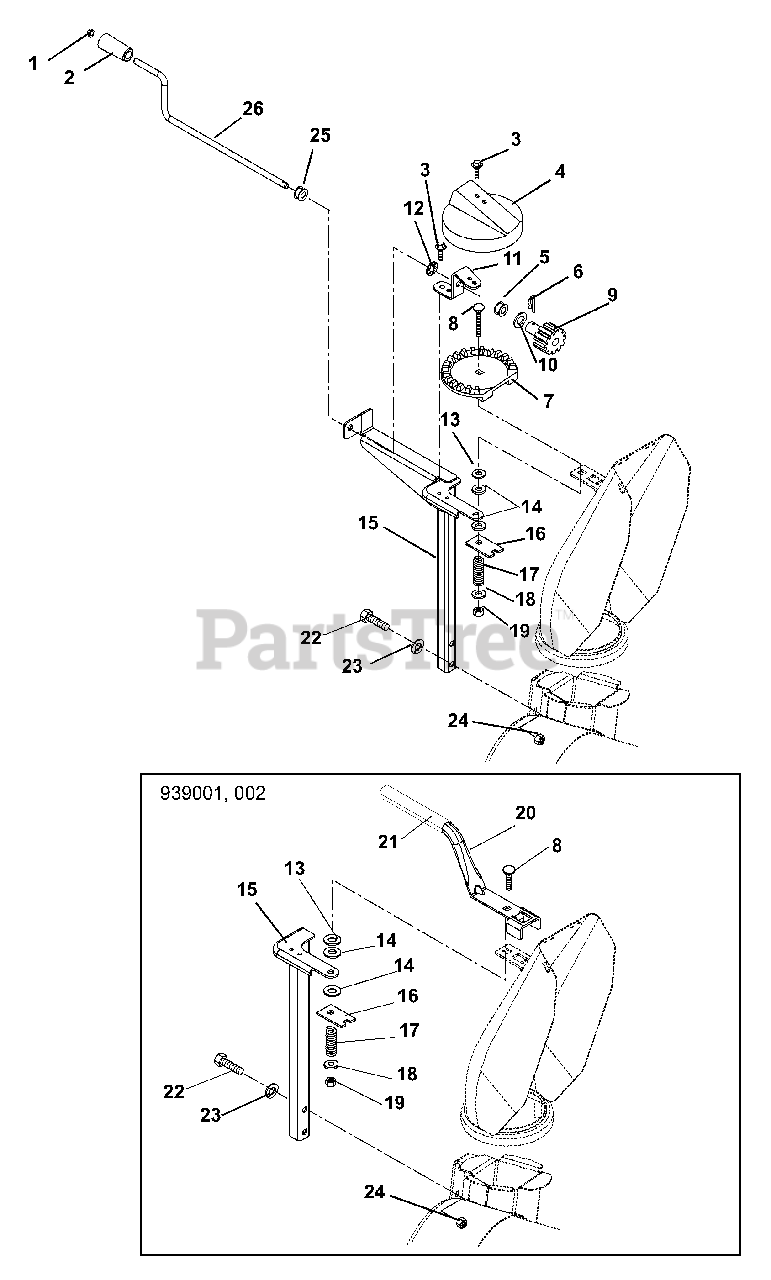

939001 (ST 520 E) - Ariens 20" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Discharge Chute Crank Parts Diagram

20" Snow Blower, 5hp Tecumseh

Discharge Chute Crank Parts Diagram

  • Title
1

Ariens 01019800

CAP, 3/8 ROD YWZC

Note: (300)

$2.99

$

In Stock, Qty 15

0

2

Ariens 07500001

KNOB, CHUTE CRANK

Note: (300)

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (300)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 03223000

GEAR COVER

Note: (300)

$12.99

$

In Stock, Qty 8

0

5

Ariens 05500021

BUSHING, POLYLINER-.63 SNAPIN

Note: (300)

$2.99

$

In Stock, Qty 13

0

6

Ariens 06714500

PIN, SPRING CLIP

Note: (300)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 03222900

CHUTE GEAR

Note: (300)

$11.99

$

In Stock, Qty 20+

0

8

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

9

Ariens 53214700

BRACKET W/PINION GEAR

Note: (Contains Items 5, 10, 11, 12) (300)

$

$

Not available

10

Ariens 06400009

WSHR-THRST .625 X 1.0 X .03

Note: (300)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 00443551

BRACKET, PINION GEAR

Note: (300)

$16.99

$

Usually ships in 4-12 days

0

12

Ariens 03224300

PUSHNUT .625

Note: (300)

$2.49

$

In Stock, Qty 13

0

13

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

14

Ariens 01123800

FRICTION WASHER

$3.99

$

In Stock, Qty 20+

0

15

Ariens 00588051

WLDMT, CHUTE PEDESTAL W/CRANK

Note: (300)

$

$

Not available

Ariens 00396751

WELDMENT, PEDESTAL CHUTE MOUNT

Note: (001, 002)

$

$

Not available

16

Ariens 00398000

PLATE, FRICTION

$7.49

$

In Stock, Qty 10

0

17

Ariens 08320900

SG-COMP .187X.56X1.62

$4.99

$

In Stock, Qty 19

0

18

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00427451

HANDLE, CHUTE ROTATION

Note: (001, 002)

$77.99

$

Usually ships in 4-12 days

0

21

Ariens 00345700

GRIP, CHUTE HANDLE, ORANGE

Note: (001, 002)

$

$

Not available

22

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 05500020

BUSHING, POLYLINER-.38 SNAPIN

Note: (300)

$2.99

$

In Stock, Qty 20+

0

26

Ariens 03247700

CRANK, CHUTE

Note: (300)

$36.99

$

Usually ships in 4-12 days

0
