938400 (SS 522) - Ariens 22" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

22" Snow Blower, 5hp Tecumseh

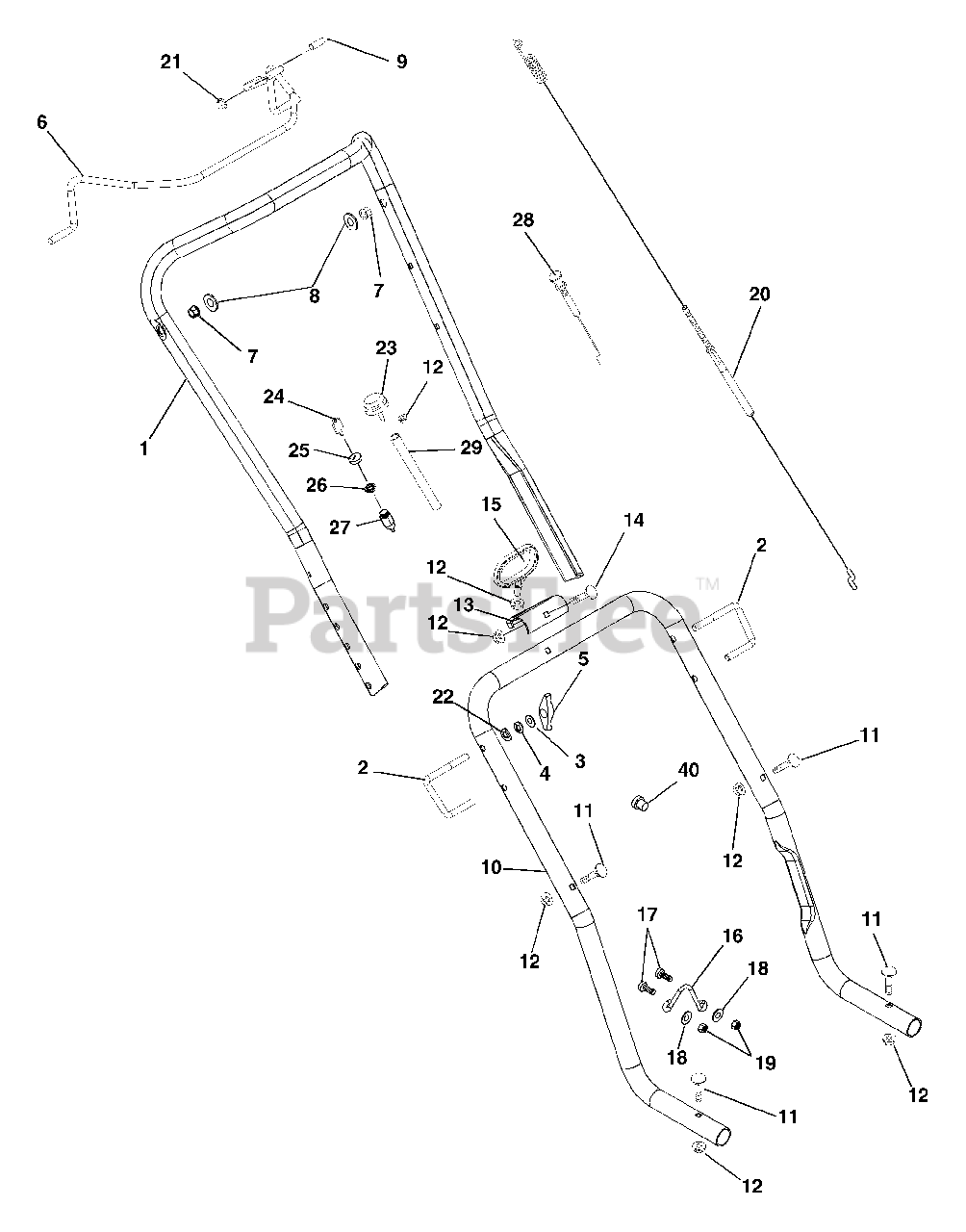

Handlebars And Controls Parts Diagram

  • Title
1

Ariens 03804451

HANDLEBAR, UPPER

$

$

Not available

2

Ariens 03802700

J BOLT .31-18

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

6

Ariens 03809051

BAIL SS LF

$77.99

$

Usually ships in 4-12 days

0

7

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

8

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

10

Ariens 03802151

HANDLEBAR, LOWER

$

$

Not available

11

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03802900

BRKT-STARTER HANDLE

$

$

Not available

14

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$1.49

$

Usually ships in 4-12 days

0

15

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0

16

Ariens 03803800

GUIDE-ROPE

$43.99

$

Usually ships in 4-12 days

0

17

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

18

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06943300

CABLE-CLUTCH CONTROL

$17.99

$

In Stock, Qty 5

0

21

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 16

0

22

Ariens 06446800

WASHER,SADDLE-.320 X.937 X.062

$0.99

$

Usually ships in 4-12 days

0

23

Ariens 07518200

PRIMER ASSY

$25.99

$

Usually ships in 4-12 days

0

24

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

25

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

In Stock, only 1 left!

0

27

Ariens 52406900

SWITCH ASSEMBLY

$39.99

$

Usually ships in 4-12 days

0

28

Ariens 06937300

CONTROL-CHOKE 5 HP
(Superseded to 53802600)

$44.99

$

Usually ships in 4-12 days

0

29

Ariens 03803300

LINE-PRIMER

$

$

Not available

30

Ariens 07527800

PLUG-HOLE .50 DIA

$

$

Not available

40

UNKNOWN

$

$

Not available
