938400 (SS 522) - Ariens 22" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Chassis, Cowl, Wheels And Supports Parts Diagram

22" Snow Blower, 5hp Tecumseh

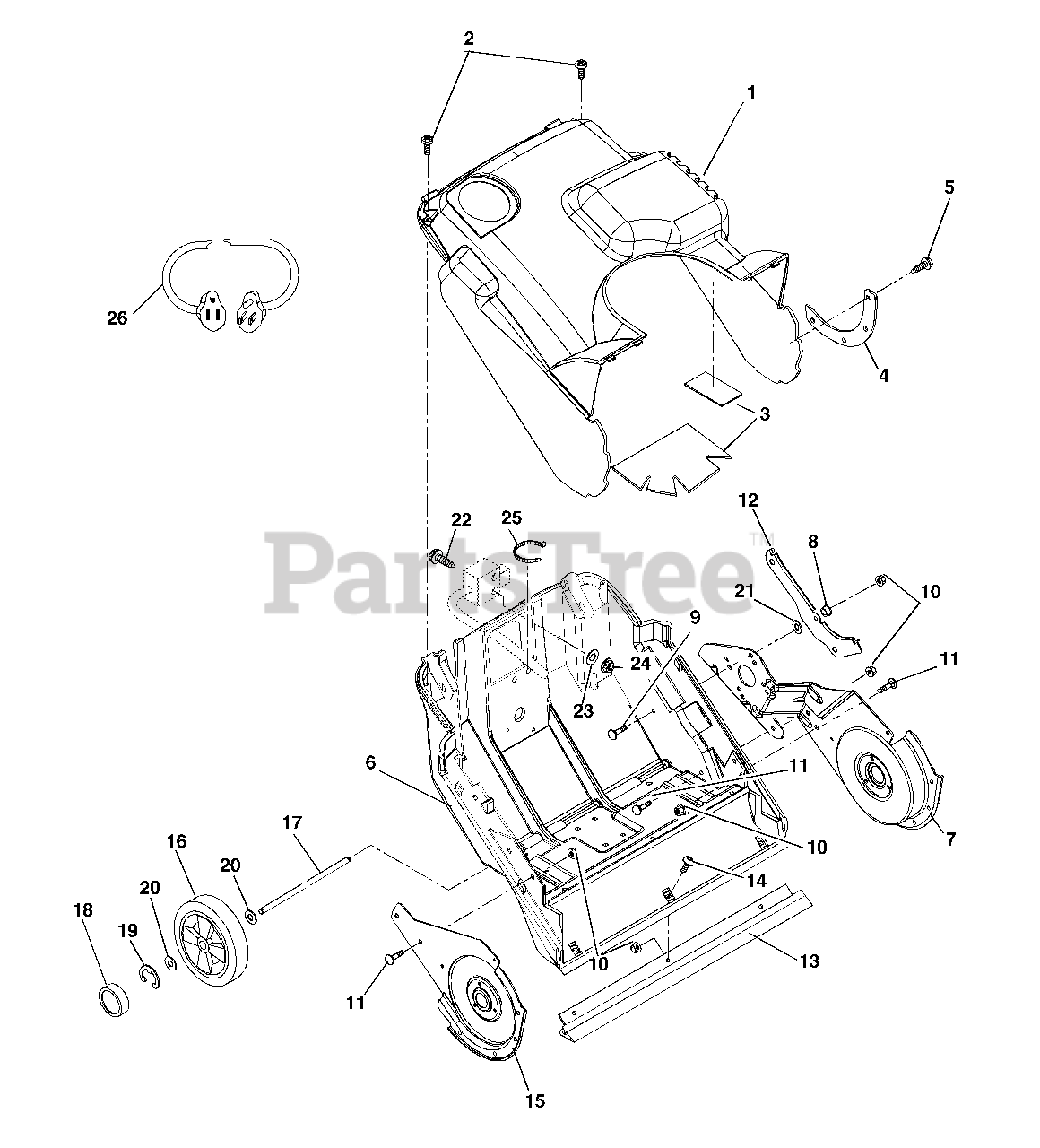

Chassis, Cowl, Wheels And Supports Parts Diagram

  • Title
1

Ariens 53802300

COWL, REPLACEMENT - MACK

Note: (Includes Item 3)

$

$

Not available

2

Ariens 07412300

SCR-SPEC-TAP #10X1.0

$2.49

$

In Stock, Qty 6

0

3

Ariens 03805000

SHEET-HEAT REFLECTIVE

Note: (400)

$

$

Not available

4

Ariens 03810451

PLATE-COWL RETAINER

$19.99

$

In Stock, only 1 left!

0

5

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

6

Ariens 03810500

CHASSIS

$

$

Not available

7

Ariens 03807151

SUPPORT-BRG,LH
(Superseded to 02973251)

$68.99

$

Usually ships in 4-12 days

0

8

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

9

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03811400

GUIDE-CABLE

$

$

Not available

13

Ariens 03810600

BLADE-SCRAPER
(Superseded to 03813800)

$46.99

$

In Stock, Qty 20+

0

14

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

15

Ariens 03807200

SUPPORT-BRG,RH
(Superseded to 03807251)

$

$

Not available

16

Ariens 07139400

T/WHL ASSY 7.0X1.5
(Superseded to 53802700)

$36.99

$

In Stock, Qty 7

0

17

$56.99

$

In Stock, only 4 left!

0

18

Ariens 03802400

CAP-HUB

$38.99

$

In Stock, only 1 left!

0

19

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06116600

@SCR-MCH 8-32X2.75 HWH YWZC

$

$

Not available

23

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

24

Ariens 06531300

@NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

25

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

26

Ariens 02483100

CORD, ELECTRIC START CORD 120V

$35.99

$

In Stock, only 3 left!

0
